Product Details:
Payment & Shipping Terms:
|
| Brand: | Embraco Aspera | Volt: | 220V |
|---|---|---|---|
| Refrigerant: | R404 | Weight: | 16KG |
| Color: | Blank | Warranty: | One Year |
| High Light: | refrigerant compressor,aspera refrigeration compressor |
||

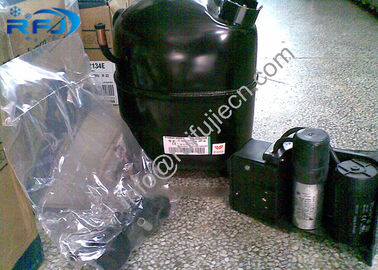

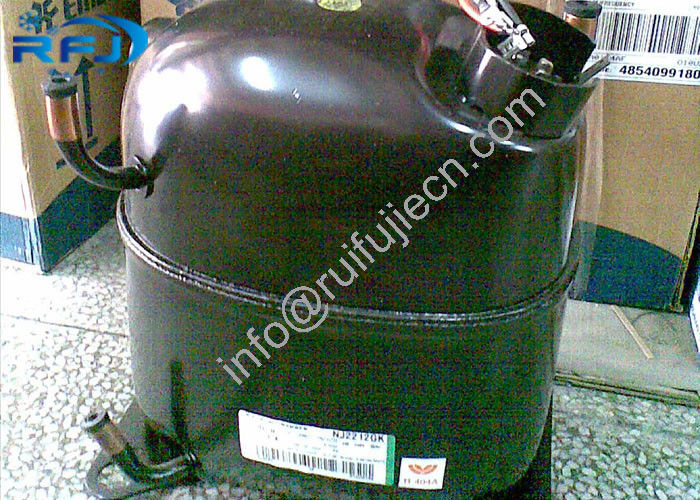

1.5HP Commecial Refrigerator Compressor LBP NJ2212GK R404a for Refrigeration
Technical FeaturesDesigned for commercial applications and air conditioners
• Available for R-134a, Blends and R-502, R-22, R-404A, R-407C
• Wide range of applications
• Versions with oil cooling or ventilation
• Models with high and low starting torque
Commercial Applications- Horizontal Freezers
- Merchandisers
- Equipment for supermarket and bakeries
- Equipment for professional kitchens
- Dispenser
- Wine Coolers
- Ice Makers
- Vending Machines
External Features:
| Shape | Material | Diameter (mm) | |
| Suction Connector | Vertical | Copper | 12,77 |
| Discharge Connector | Slanted J | Copper | 8,00 |
| Process Connector | Vertical | Copper | 6,42 |
| Oil Cooler: | |
| Base Plate: | American Standard |
| Tray Holder: | No |
| Weight (kg): | 21,50 |
Application
| Maximum ambient temperature (ºC): | 43 |
| Expansion device: | Capillary/ Valve |
| Cooling: | Fan Cooling |
| Air flow rate: |
Mechanical Data
| Bill of materials: | 943DA11 |
| Starting torque: | High Starting Torque |
| Bore (mm): | 42,85 |
| Stroke (mm): | 11,93 |
| Weight (kg): | 21,50 |
Electrical Data
| Motor type: | CSCR |
| Winding Resistance (25ºC) - Start: | 4,84 |
| Winding Resistance (25ºC) - Run: | 1,70 |
Stocks Always Available:
| Refrigerant R404a Low Back Pressure | |
| NEK2125GK | 7/16HP |
| NEK2134GK | 1/2HP |
| NEK2150GK | 1/2HP |
| NEK2168GK | 1/2HP |
| T2155GK | 3/4HP |
| T2168GK | 3/4HP |
| T2178GK | 1HP |
| NT2192GK | 1HP |
| NJ2192GK | 1.5HP |
| NJ2212GK | 1.25HP |
| Refrigerant R404a Medium/High Back Pressure | |
| NEK6210GK | 1/2HP |
| NE9213GK | 3/4HP |
| T6220GK | 7/8HP |
| T6222GK | 3/4HP |
| NJ9226GK | 1HP |
| NJ9232GK | 1.5HP |
| NJ9238GK | 1.75HP |
