Product Details:
Payment & Shipping Terms:
|
Type:: | Air-Cooled | Cooling Water:: | Industrial Water |
---|---|---|---|
Type: | System Type | Fans Species: | Frequency Fan |
Noise Level:: | Low | Application Fields: | Cooling System |
Certification: | RoHS, ISO, CE | Condition: | New |
Heat Transfer Area: | 75 Sq Meter | Heat Transfer Capacity: | 21.4kw |
Total Air Volume: | 2*3400CMH | Rows*Tubes: | 5*14 |
HS Code: | 8418692090 | ||
Highlight: | ac condenser unit,bitzer condenser unit |
Product Description

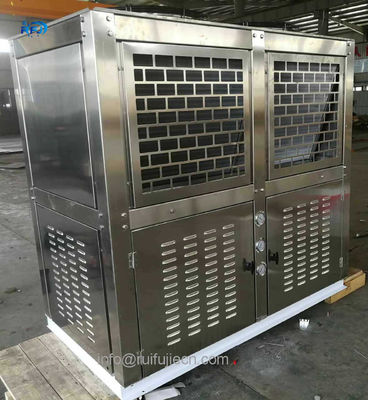

RFJ Low Temperature For V Type Box Compressed Condenser Unit
type box compressed condenser unit
Components:
(1) Condensing unit: , Copeland, Maneurop, Fusheng, , Taikang
(2) Evaporator: KELTESS air-cooler.
(3) Insulation Panel: PU, EPS.
(4) Other accessories: world-famous brands, like , Castle, Every Control, Siemens, LG
Walk In Cooler Box,Walk In Cooler,Cooler box Application
1.Vegetable, Fruit Storage Cooler (0-5'C)
2.Drinks, Beer Walk in Cooler (2-8'C)
3.Meat, Fish Storage Freezer (-18'C)
4.Medicine Storage Cooler (2-8'C)
5.Medicine Storage Freezer (-20'C)
6.Meat, Fish Blast Freezer (-35'C)
Application: Food(meat, vegetable, fruit, dairy, drink), medicine, chemical, electronics, etc.
-- materials: Polyurethane and metal sheet. Metal sheet: It is can be with painted steel sheet and stainless steel sheet for choice.
-- with electric heating wire around doorframe to void icing.
-- safe doorknob inside..
-- positive plastic seal fixed to door to avoid cooling air losses.,
specification:
1.Copeland scroll Compressor.
2.Hi-thread condenser.
3.High-thread series of low-temperature DL evaporator
4. high-end expansion valve. (Series expansion valve fot freezer, capillary cut for cooler)
5.Full computer control system (automatic control).
6.Apan Saginomiya/ Shangheng solenoid valve (a set of solenoid valve has two units for high temperature unit: running - cream filling;
Freezing Unit has an addition of liquid spray).
7.Rotor with 3 sets of high-blower.
8.LG electrical components.
9.Emerson dry filter, pressure relay protection, the protection of high-temperature compressor temperature
control (temperature liquid spray for freezer).
10.Cooper piping tube + frozen oil + cooling of the refrigerant 404A +silver eletrode + Insulation.
Condensate water processor.Packing+carton box/wood box+certification
11.The doors of the cold room have safe lock which is help to open them from inside
The price is our weapon,quality is our life.To save the cost of investment and operating costs for our client,12
which is the goul that we always work for.For the better quality,We continue to innovate.
R22, R404a and other gas Condensing Unit For Cold Room Storage, Air Cooled
Feature of potato VENTTK refrigeration :
(1) Temperature range: -40ºC~+20ºC (-40ºF~+68ºF) are all available.
(2) Size: Customization.
(3) Functions: fresh-keeping, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available.
(4) Fully automatic control system.
Box Type Compressor Condensing Unit Dimensions | |||||||
Unit Model | A | B | C | D | H | H1 | Installation bore |
RFJ-BRA09M/60 RFJ-BRA06H/60 | 1050 | 750 | 700 | 850 | 1380 | 1500 | 4-θ13 |
RFJ-BRA12M/80 RFJ-BRA09H/80 | 1150 | 880 | 830 | 950 | 1500 | 1630 | 4-θ13 |
RFJ-BRA14M/100 RFJ-BRA10H/100 | 1370 | 880 | 830 | 1170 | 1600 | 1730 | 4-θ13 |
RFJ-BRA18M/120 RFJ-BRA12H/120 | 1450 | 950 | 900 | 1250 | 1600 | 1730 | 4-θ13 |
RFJ-BRA23M/160 RFJ-BRA15H/160 | 1610 | 950 | 900 | 1410 | 1600 | 1730 | 4-θ13 |
RFJ-BRA28M/200 RFJ-BRA20H/200 | 1710 | 950 | 900 | 1510 | 1650 | 1830 | 4-θ13 |
RFJ-BRA34M/240 RFJ-BRA25H/240 | 2120 | 1050 | 1050 | 1920 | 1780 | 1900 | 4-θ13 |
RFJ-BRA30H/270 | 2300 | 1050 | 1050 | 2100 | 1780 | 1900 | 4-θ13 |
RFJ-BRA44M/300 RFJ-BRA35H/300 | 2450 | 1050 | 1050 | 2250 | 1780 | 1900 | 4-θ13 |

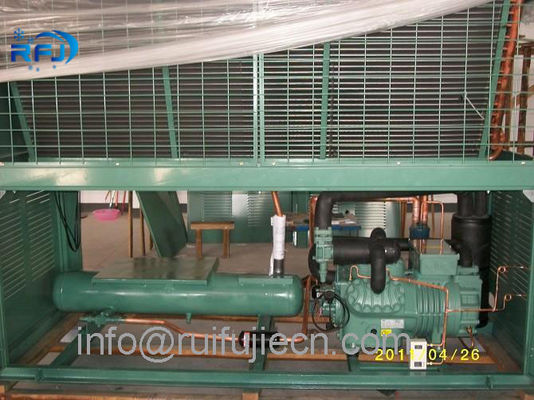

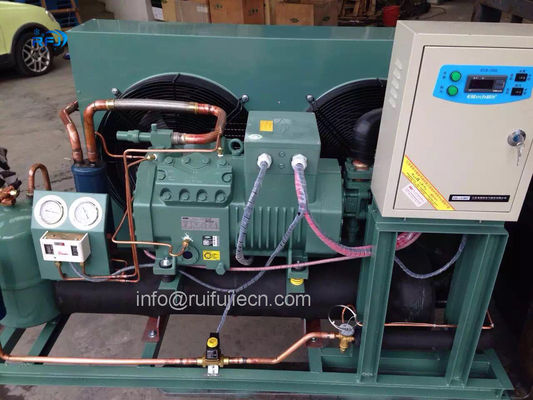

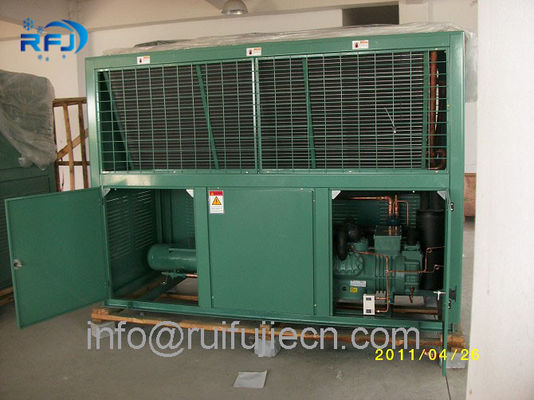

BOX Type Compressor Condensing Unit | |||||||||||
For box type condensing unit,we adopt high-performance compressor,optimized design condenser,reliable control components.overall design is reasonable,top discharge for condenser,which can reduce the interference to surrounding environment,access to the idea of environmentally design;metal structure for the overall housing,finished by anti-corrosion coating for the surface,with beautiful appearance,convenient in installation and stable for operation. Condensing unit included:pressure controller,liquid receiver,filter drier,pressure gauge and solenoid valve etc high quality refrigeration parts. |
|||||||||||
Technical Parameters:medium & Low temperature unit parameters | |||||||||||
Unit model | compressor model | Norminal refrigerating capacity (KW) |
Powerinput (KW) |
Power supply (KW) |
Fan of condenser | Liquid receiver (L) |
Inlet (mm) |
Outlet (mm) |
|||
Quantity | Dimaeter of Vane (mm) |
Air Voume (M3/H) |
Moter power (W) |
||||||||
RFJ-BRA09M/60 | 4TES-9Y | 11.41 | 6.74 | 380v 3HP 50HZ | 1 | 500 | 7000 | 1x450 | 8 | 25 | 19 |
RFJ-BRA12M/80 | 4PES-12Y | 12.64 | 7.34 | 1 | 600 | 11000 | 1x780 | 10 | 25 | 19 | |
RFJ-BRA14M/100 | 4NES-14Y | 15.50 | 9.11 | 2 | 450 | 10000 | 2x250 | 12 | 28 | 22 | |
RFJ-BRA18M/120 | 4HE-18Y | 21.90 | 12.67 | 2 | 500 | 14000 | 2x450 | 15 | 28 | 22 | |
RFJ-BRA23M/160 | 4GE-23Y | 25.80 | 15.06 | 2 | 600 | 22000 | 2x780 | 20 | 28 | 22 | |
RFJ-BRA28M/200 | 6HE-28Y | 32.30 | 18.68 | 2 | 600 | 22000 | 2x780 | 25 | 28 | 22 | |
RFJ-BRA34M/240 | 6GE-34Y | 38.80 | 22.90 | 3 | 500 | 21000 | 3x450 | 35 | 38 | 25 | |
RFJ-BRA44M/300 | 6FE-44Y | 46.20 | 27.52 | 3 | 600 | 33000 | 3x780 | 45 | 42 | 28 | |
Note: Nominal refrigerating capacity and power input are based on conditions of ambient temperature 32℃,evaporating temperature -23℃ and refrigerant R404A. |
