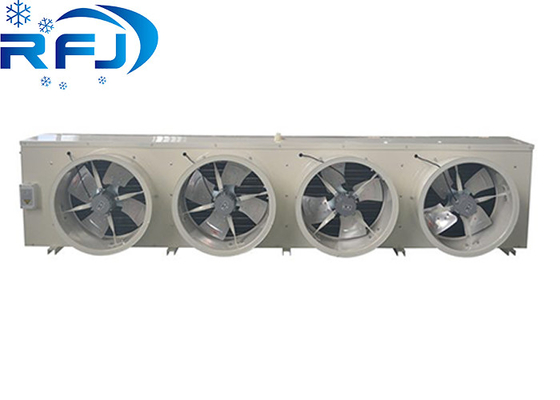

Refrigeration Cooling Mounted Evaporator Air Cooling For Cold Room
Refrigeration Ceiling Mounted Evaporator
,Cold Room Ceiling Mounted Evaporator
,AC380V Coolroom Evaporator
Refrigeration Ceiling Mounted Evaporator Air Cooling For Cold Room
Industrial Refrigeration Evaporators Air Cooling For Cold Room.
Wide range of cold quantity;Most of the installation have needle valve;Wiring board positive installation;Cabinet design
1.easy to open the crust
2.wide range of cold quantity;
3.Most of the installation have needle valve;
4.Wiring board positive installation;
5.Cabinet design
6.with a strong rope, be used for maintenance wet pan when fixing.
Note: BMT- mesotherm cooler
BLT-low temp. cooler
BMT series for medium temperature:
Specifications:
| 300mm | Fin Spacing | 3.5mm | |||||||
| Models | AE301A4F | AE301A6F | AE302A3F | AE302A4F | AE302A6F | AE303A4F | AE303A6F | AE304A6F | |
| SC1 KW | Ta 10℃ R22 | 2.3 | 2.7 | 3.9 | 4.7 | 5.5 | 7 | 8 | 9.4 |
| Te -0℃ R404A | 2.3 | 2.8 | 3.9 | 4.7 | 5.5 | 7 | 8.1 | 9.5 | |
| Tube Length m | 13 | 19 | 19 | 26 | 39 | 39 | 58 | 71 | |
| Surface ㎡ | 6.3 | 9.5 | 9.5 | 12.6 | 18.9 | 18.9 | 28.4 | 34.7 | |
| Circuit Vol. dm³ | 1 | 1.5 | 1.5 | 2 | 3.1 | 3.1 | 4.6 | 5.6 | |
| Fan Mot.No. | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 4 | |
| Air Flow m³/h | 1000 | 850 | 2160 | 2000 | 1700 | 3000 | 2550 | 3200 | |
| Air Throw m | 3 | 3 | 5 | 4 | 4 | 6 | 5 | 7 | |
| Fan Mot.Amper A | 0.42 | 0.42 | 0.84 | 0.84 | 0.84 | 1.26 | 1.26 | 1.68 | |
| Fan Mot.Power W | 85 | 85 | 170 | 170 | 170 | 255 | 255 | 340 | |
| In Tube Inch. | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | |
| Out Tube Inch | 5/8 | 5/8 | 5/8 | 5/8 | 7/8 | 7/8 | 7/8 | 7/8 | |
| Net Weight kg | 13 | 16 | 19 | 22 | 28 | 32 | 40 | 52 | |
| Drawing No. | ㊲ | ㊲ | ㊳ | ㊳ | ㊳ | ㊴ | ㊴ | ㊵ | |
| 300mm | Fin Spcing 7mm | ||||||||
| Models | AE301C4 | AE301C6 | AE302C3 | AE302C4 | AE302C6 | AE303C4 | AE303C6 | AE304C6 | |
| SC2 KW | Ta 0℃ R22 | 1.3 | 1.6 | 2.2 | 2.6 | 3.2 | 4 | 4.9 | 5.9 |
| Te -8℃ R404A | 1.3 | 1.6 | 2.3 | 2.7 | 3.3 | 4.1 | 4.9 | 6 | |
| SC3 KW | Ta -18℃ R22 | 0.9 | 1.1 | 1.5 | 1.9 | 2.3 | 2.7 | 3.2 | 3.8 |
| Te -25℃ R404A | 0.9 | 1.1 | 1.5 | 1.9 | 2.3 | 2.7 | 3.3 | 3.9 | |
| Tube Length m | 13 | 19 | 19 | 26 | 39 | 39 | 58 | 71 | |
| Surface ㎡ | 3.4 | 5 | 5 | 6.7 | 10.1 | 10.1 | 15.1 | 18.4 | |
| Circuit Vol. dm³ | 1 | 1.5 | 1.5 | 2 | 3.1 | 3.1 | 4.6 | 5.6 | |
| Fan Mot.No. | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 4 | |
| Air Flow m³/h | 1150 | 1020 | 2500 | 2300 | 2040 | 3450 | 3060 | 4000 | |
| Air Throw m | 4 | 4 | 6 | 5 | 5 | 7 | 6 | 8 | |
| Fan Mot.Amper A | 0.42 | 0.42 | 0.84 | 0.84 | 0.84 | 1.26 | 1.26 | 1.68 | |
| Fan Mot.Power W | 85 | 85 | 170 | 170 | 170 | 255 | 255 | 340 | |
| Electric Defrost A | 4.5 | 6.8 | 9.1 | 9.1 | 13.6 | 13.6 | 20.5 | 24.5 | |
| Electric Defrost W | 1000 | 1500 | 2000 | 2000 | 3000 | 3000 | 4500 | 4500 | |
| In Tube Inch. | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | |
| Out Tube Inch | 5/8 | 5/8 | 5/8 | 5/8 | 7/8 | 7/8 | 7/8 | 7/8 | |
| Net Weight kg | 13 | 16 | 19 | 22 | 28 | 32 | 40 | 52 | |
| Drawing No. | ㊲ | ㊲ | ㊳ | ㊳ | ㊳ | ㊴ | ㊴ | ㊵ |
| 300mm | Fin Spacing | 4.0mm | |||||||
| Models | BT301R3 | BT302R3 | BT302R4 | BT302R5 | BT303R4 | BT303R5 | BT304R5 | ||
| t1=-3℃ Capacity KW | 3.1 | 5.2 | 7.5 | 8.4 | 11 | 12.6 | 15.7 | ||
| t2=2℃ GIycoI FIow | 0.16 | 0.27 | 0.39 | 0.44 | 0.57 | 0.66 | 0.81 | ||
| ta=10℃ Pressure Drop kPa | 93.5 | 46.9 | 108.6 | 60.3 | 101.6 | 73.7 | 69.6 | ||
| Tube Length m | 16 | 27 | 36 | 45 | 53 | 66 | 81 | ||
| Surface ㎡ | 9.8 | 16.3 | 21.7 | 27.2 | 31.9 | 39.9 | 48.9 | ||
| Circuit Vol. dm³ | 2.2 | 3.7 | 4.9 | 6.2 | 7.2 | 9 | 11.1 | ||
| Fan Mot.No. | 1 | 2 | 2 | 2 | 3 | 3 | 4 | ||
| Air Flow m³/h | 1350 | 2500 | 2400 | 2350 | 3600 | 3500 | 4600 | ||
| Air Throw m | 4 | 6 | 6 | 5 | 7 | 6 | 6 | ||
| Fan Mot.Amper A | 0.3 | 0.6 | 0.6 | 0.6 | 0.9 | 0.9 | 1.2 | ||
| Fan Mot.Power W | 90 | 180 | 180 | 180 | 270 | 270 | 360 | ||
| Electric Defrost A | 2.3 | 3.6 | 3.6 | 3.6 | 5.5 | 5.5 | 6.8 | ||
| Electric Defrost W | 1500 | 2400 | 2400 | 2400 | 3600 | 3600 | 4500 | ||
| In Tube Inch. | 1/2 | 5/8 | 5/8 | 5/8 | 5/8 | 7/8 | 7/8 | ||
| Out Tube Inch | 1/2 | 5/8 | 5/8 | 5/8 | 5/8 | 7/8 | 7/8 | ||
| Net Weight kg | 22 | 34 | 35 | 37 | 56 | 59 | 66 | ||
| Drawing No. | ㊶ | ㊷ | ㊷ | ㊷ | ㊸ | ㊸ | ㊹ | ||
| 400mm | Fin Spacing 4.0mm | ||||||||
| Models | BT401R4 | BT402R3 | BT402R4 | BT402R5 | BT403R4 | BT403R5 | BT404R5 | BT405R5 | |
| t1=-3℃ Capacity KW | 6.7 | 9.5 | 12.4 | 14.6 | 20.4 | 24.2 | 29.2 | 38.7 | |
| t2=2℃ GIycoI FIow I/s | 0.35 | 0.49 | 0.64 | 0.76 | 1.06 | 1.26 | 1.51 | 2.01 | |
| ta=10℃ Pressure DropkPa | 94.4 | 66.3 | 65.1 | 61.2 | 104.6 | 106.5 | 92 | 107.5 | |
| Tube Length m | 28 | 42 | 56 | 70 | 84 | 105 | 129 | 172 | |
| Surface ㎡ | 17 | 25.4 | 34 | 42.4 | 51 | 63.6 | 77.7 | 103.6 | |
| Circuit Vol. dm³ | 3.8 | 5.8 | 7.7 | 9.6 | 11.5 | 14.4 | 17.6 | 23.5 | |
| Fan Mot.No. | 1 | 2 | 2 | 2 | 3 | 3 | 4 | 5 | |
| Air Flow m³/h | 2600 | 5500 | 5200 | 4900 | 7800 | 7350 | 9500 | 12000 | |
| Air Throw m | 7 | 10 | 9 | 9 | 10 | 10 | 11 | 12 | |
| Fan Mot.Amper A | 0.5 | 1 | 1 | 1 | 1.5 | 1.5 | 2 | 2.5 | |
| Fan Mot.Power W | 200 | 400 | 400 | 400 | 600 | 600 | 800 | 1000 | |
| Electric Defrost A | 2.3 | 4.5 | 4.5 | 4.5 | 6.8 | 6.8 | 8.2 | 10.9 | |
| Electric Defrost W | 1500 | 3000 | 3000 | 3000 | 4500 | 4500 | 5400 | 7200 | |
| In Tube Inch. | 5/8 | 5/8 | 7/8 | 7/8 | 7/8 | 7/8 | 1-1/8 | 1-1/8 | |
| Out Tube Inch | 5/8 | 5/8 | 7/8 | 7/8 | 7/8 | 7/8 | 1-1/8 | 1-1/8 | |
| Net Weight kg | 35 | 51 | 54 | 57 | 80 | 85 | 105 | 130 | |
| Drawing No. | ㊺ | ㊻ | ㊻ | ㊻ | ㊼ | ㊼ | ㊽ | ㊾ |
