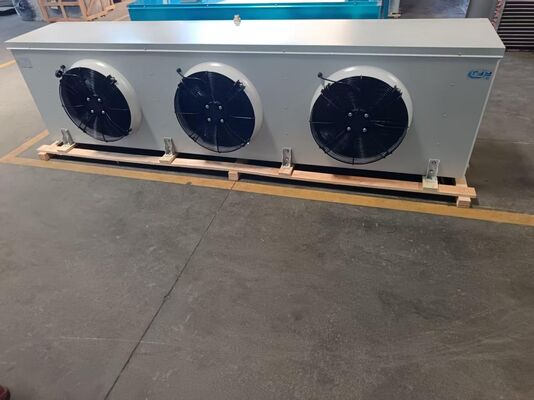

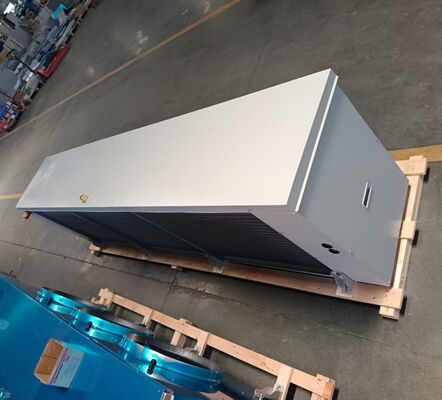

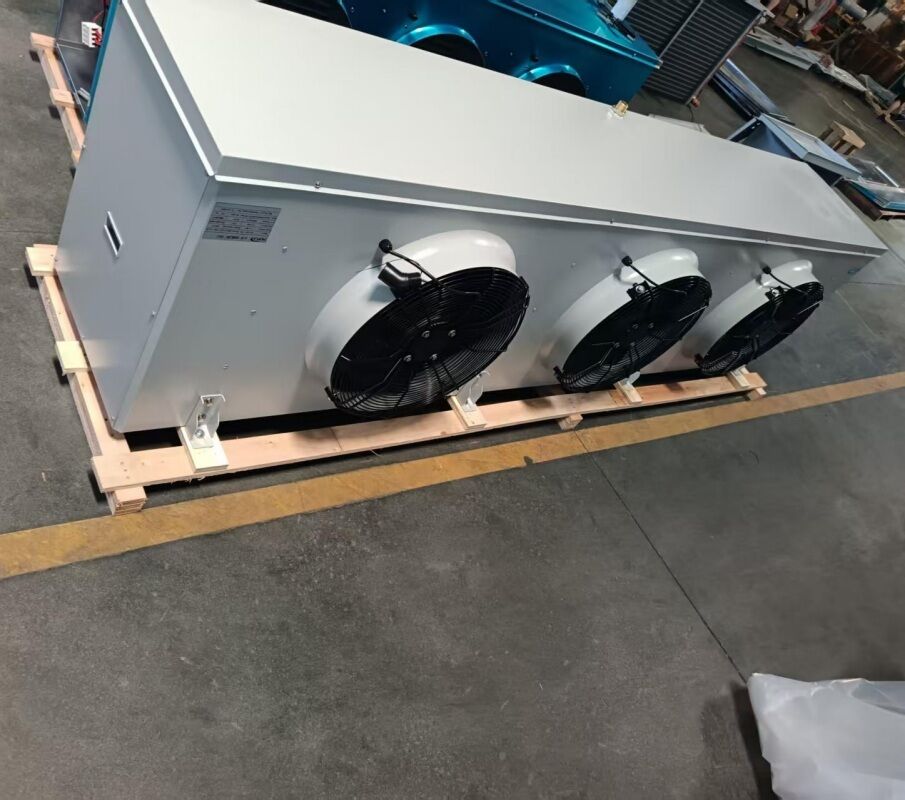

The D10.8E9 is a ceiling-suspended unit cooler engineered specifically for low-temperature refrigeration applications, cold storage logistics centers, and quick-freezing rooms operating down to -35°C. Delivering a nominal cooling capacity of 10.8 kW, this high-efficiency unit guarantees rapid temperature drawdown and consistent thermal stability to prevent cargo deterioration.
In low-temperature cold rooms, rapid ice formation on fin coils restricts airflow, leads to temperature spikes, and increases energy consumption. The D10.8E9 solves these operational problems with an extended 9 mm fin pitch (3 FPI) structure coupled with three φ450 mm low-temperature axial fan motors. Generating a total air volume of 15,900 m³/h with a 12-meter air throw, it ensures deep cold air distribution while delaying frost bridge formation.
Equipped with an integrated 12.1 kW electric defrost system featuring stainless steel heating tubes and low-temperature epoxy-encapsulated wiring, the D10.8E9 achieves thorough ice removal with minimal thermal impact on stored products. Each unit undergoes strict factory water-tank pressure testing at 2.8 MPa, features IP55 fan protection, and supports multi-refrigerant operation including R507A, R404A, R23, R134a, and R22.
| Parameter | Value |
|---|---|
| Model | RFJ-D10.8E9 |
| Nominal Cooling Capacity | 10.8 KW |
| Air Volume | 3x5300 m³/h |
| Fan Power | 3x250 W |
| Voltage | 380 V |
| Liquid Inlet / Suction Outlet | 22 mm / 35 mm |
| Defrost Power | 12.1KW |
With two decades of technical expertise in commercial refrigeration, Ruifujie stands as a modernized manufacturing enterprise serving international trade buyers. Our specialized catalog encompasses scroll, reciprocating, rotary, semi-hermetic, and screw compressors, alongside modular cold storage solutions, freezing units, and ice makers. Built to deliver high reliability, Ruifujie supports full OEM/ODM customization services. Our products are widely exported to global destinations including the US, UK, Russia, UAE, and Saudi Arabia, winning strong customer acclaim for superior performance and cost efficiency.
Drawing on 20 years of manufacturing excellence, Ruifujie provides specialized technical selection to match your exact cold room cooling unit requirements. Send us your project details—including target storage dimensions, operating temperatures, refrigerant choice, and order volume—and our engineering team will deliver a customized proposal and quote within 8 hours.
|
|
