| Brand Name: | Ruifujie |
| Model Number: | RFJ-D11.8E9 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

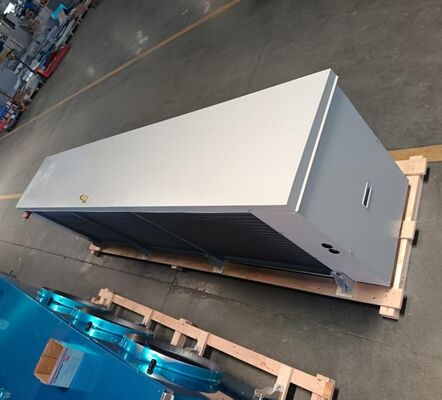

The D11.8E9 is a ceiling-suspended unit cooler engineered specifically for low-temperature cold storage rooms, commercial freezing facilities, and quick-freezing logistics centers operating down to -35°C. Delivering a nominal cooling capacity of 11.8 kW, this cold storage indoor unit ensures rapid heat removal and tight temperature control to prevent product degradation under heavy thermal load conditions.

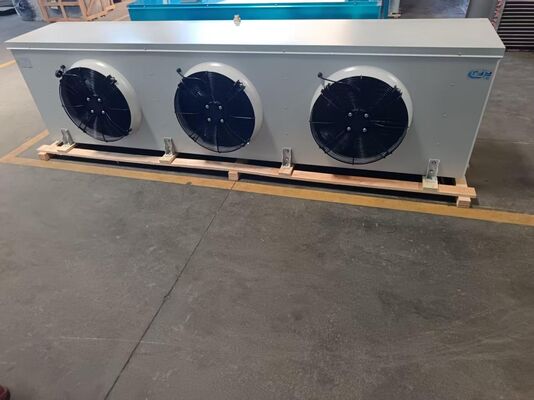

In low-temperature freezing environments, rapid ice accumulation on evaporator fins chokes airflow, increases defrost frequency, and drastically escalates operating power draw. The D11.8E9 addresses this operational bottleneck with a wide 9 mm fin pitch (3 FPI) structure coupled with three φ500 mm low-temperature axial fans. Operating at 3×414 W, these fans deliver a powerful total air volume of 21,000 m³/h with a 12-meter air throw, ensuring deep, uniform cold air circulation while delaying frost bridge formation.
Equipped with an integrated 12.6 kW electric defrost system featuring stainless steel heating elements and low-temperature epoxy-encapsulated wiring, the D11.8E9 guarantees rapid, complete ice removal. Every coil undergoes rigorous factory water-tank pressure testing at 2.8 MPa, features IP55 fan motor protection, and supports multi-refrigerant operation including R507A, R404A, R23, R134a, and R22.
| Parameter | Value |
|---|---|
| Model | RFJ-D11.8E9 |
| Nominal Cooling Capacity | 11.8 KW |
| Air Volume | 3x7000 m³/h |
| Fan Power | 3x414 W |
| Voltage | 380 V |
| Liquid Inlet / Suction Outlet | 22 mm / 35 mm |
| Defrost Power | 12.6KW |
With over two decades of dedicated manufacturing experience in commercial refrigeration, Ruifujie stands as a modernized technical enterprise serving international B2B clients. Our core product lineup encompasses scroll, reciprocating, rotary, semi-hermetic, and screw refrigeration compressors, together with complete cold room systems, quick-freezing equipment, and industrial ice machines. Equipped to support global distributors, Ruifujie provides versatile OEM/ODM customization options. Our products are exported worldwide to key destinations including the United States, Russia, the United Kingdom, Saudi Arabia, and the UAE, earning broad customer approval for high performance and cost-effective durability.
A1: The D11.8E9 provides a nominal cooling capacity of 11.8 kW under evaporating temperature conditions of -42°C, specifically built for low-temperature cold storage down to -35°C.
A2: The unit is equipped with three φ500 mm axial fan motors generating an extensive air volume of 21,000 m³/h with a 12-meter air throw, ensuring balanced air delivery throughout large storage spaces.
A3: Every evaporator undergoes a strict 2.8 MPa pneumatic pressure test under clean water to ensure total structural integrity and leak-free reliability under high operating pressures.
A4: There is no MOQ requirement for in-stock inventory, while volume production orders are open for negotiation. In-stock sample orders are dispatched within 3 days, and complete mass production orders are fulfilled within 10 to 15 working days.
A5: All Ruifujie products carry a 1-year full warranty. We accept T/T and Western Union payments in USD under standard FOB Shenzhen or EXW trade terms.
Backed by 20 years of refrigeration engineering excellence, Ruifujie provides complete cold chain equipment packages tailored to your commercial facility requirements. Send us your project parameters--including room volume, operating temperature, preferred refrigerant, and target order quantity--and our engineering specialists will deliver an integrated solution and detailed quote within 8 hours.
|
|
