| Model Number: | ZR Series |
| MOQ: | 1pcs |
| Price: | discussed |
| Delivery Time: | 7-10 working days after receiving payment |
| Payment Terms: | L/C, T/T, Western Union |

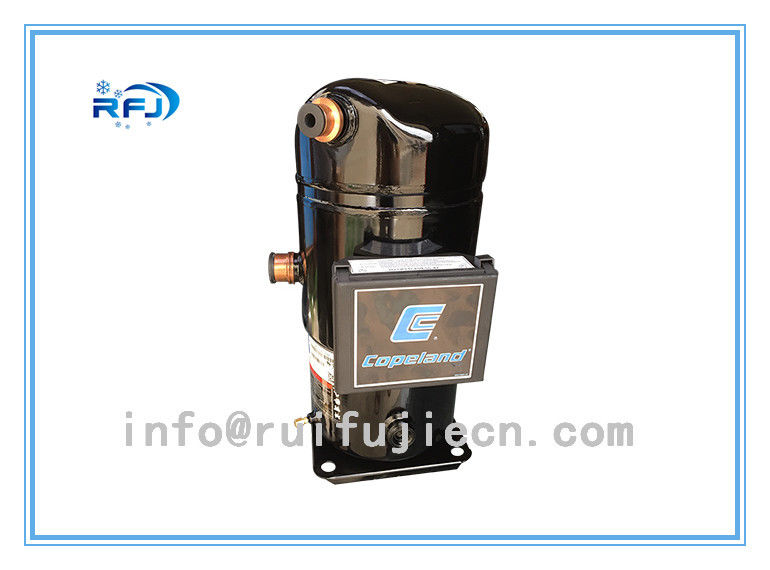

Refrigeration Scroll air conditioner Compressor (ZR Series)ZR16M3-TWD-551
Specifications:
Description:
1.Models have : ZR16M3-TWD-522,ZR19M3-TWD-522,ZR47KC-TFD,ZR94KC-TFD,ZR125KC-TFD, ZR160KC-TFD,ZR61KC-TFD,ZR108KC-TFD,ZR144KC-TFD,ZR72KC-TFD ....
2.The are scroll compressors, can be used for air conditioning and refrigeration.
3.We have models made in China,Thailand and Belguim.

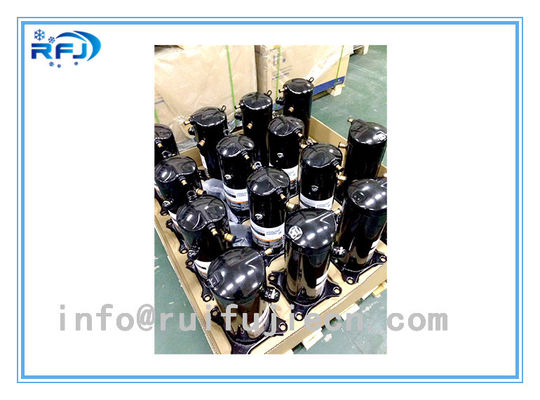

4. 12 units packing with one pallet.
We can supply more ZR models as follow:
| compressors - air conDitioning (cont' D) | |||||
| hBp compressor – three phase | |||||
| Model NO. | Cooling Capacity (rating point 7.2) | nominal hp | Displ. cc/rev | nom current | Weight |
| FLa | (Kg) | ||||
| ZR22K3PFJ522 | 5240 | 1.83 | 30.7 | 9.6 | 26 |
| ZR28K3PFJ522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR28K3EPFJ522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR34K3PFJ522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR34K3EPFJ522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR36K3PFJ522 | 8850 | 3 | 49.5 | 16.4 | 29.5 |
| ZR40K3PFJ522 | 9620 | 3.33 | 54.19 | 17.1 | 32 |
| ZR42K3PFJ522 | 10140 | 3.5 | 56.8 | 17.1 | 30 |
| ZR47K3PFJ522 | 11500 | 3.9 | 64.1 | 19.3 | 32.6 |
| ZR68KCPFJ522 | 16800 | 5.75 | 93 | 28.2 | 43.5 |
| ZR28K3TFD522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR28K3ETFD522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR36K3TFD522 | 8850 | 3 | 49.5 | 5.7 | 29.5 |
| ZR40K3TFD522 | 9260 | 3.33 | 51.2 | 6.4 | 32 |
| ZR47KCTFD522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR47KCETFD522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR48KCTFD522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
| ZR48KCETFD522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
| ZR54KCTFD522 | 13000 | 4.5 | 73.2 | 8.2 | 35.5 |
| ZR57KCTFD522 | 13660 | 4.75 | 76.9 | 8.2 | 36 |
| ZR57KCETFD522 | 13660 | 4.75 | 76 | 8.2 | 36 |
| ZR61KCTFD522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR61KCETFD522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR68KCTFD522 | 16500 | 5.75 | 93 | 10 | 38.2 |
| ZR72KCTFD522 | 17800 | 6 | 98 | 10 | 38.2 |
| ZR72KCETFD522 | 17800 | 6 | 98 | 10 | 38.2 |
| ZR81KCTFD522 | 19800 | 6.75 | 110.6 | 12 | 40 |
| ZR81KCETFD522 | 19800 | 6.75 | 110.6 | 12 | 40 |
| ZR94KCTFD522 | 23000 | 8 | 127.2 | 16.2 | 59 |
| ZR94KCTFD523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
| ZR94KCETFD523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
| ZR108KCTFD522 | 26670 | 9 | 147.5 | 17.3 | 64 |
| ZR108KCETFD523 | 26670 | 9 | 147.5 | 17.3 | 64 |
| ZR108KCTFD523 | 26900 | 9 | 144.5 | 17.3 | 62.7 |
| ZR125KCTFD522 | 30660 | 10 | 171.4 | 19.2 | 64 |
| ZR125KCETFD523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
| ZR125KCTFD523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
| ZR144KCTFD522 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR144KCETFD523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR144KCTFD523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR16M3TWD551 | 37700 | 13 | 204.3 | 25 | 103.1 |
| ZR16M3ETWD551 | 37700 | 13 | 204.3 | 17.3 | 103 |
| ZR19M3TWD551 | 45900 | 15 | 241.9 | 23.8 | 112.1 |
| ZR19M3ETWD551 | 45900 | 15 | 241.9 | 23.8 | 119 |
|
|
| Model Number: | ZR Series |
| MOQ: | 1pcs |
| Price: | discussed |
| Packaging Details: | Wooden case or 12 units in one pallet |
| Payment Terms: | L/C, T/T, Western Union |
Refrigeration Scroll air conditioner Compressor (ZR Series)ZR16M3-TWD-551
Specifications:
Description:
1.Models have : ZR16M3-TWD-522,ZR19M3-TWD-522,ZR47KC-TFD,ZR94KC-TFD,ZR125KC-TFD, ZR160KC-TFD,ZR61KC-TFD,ZR108KC-TFD,ZR144KC-TFD,ZR72KC-TFD ....
2.The are scroll compressors, can be used for air conditioning and refrigeration.
3.We have models made in China,Thailand and Belguim.
4. 12 units packing with one pallet.
We can supply more ZR models as follow:
| compressors - air conDitioning (cont' D) | |||||
| hBp compressor – three phase | |||||
| Model NO. | Cooling Capacity (rating point 7.2) | nominal hp | Displ. cc/rev | nom current | Weight |
| FLa | (Kg) | ||||
| ZR22K3PFJ522 | 5240 | 1.83 | 30.7 | 9.6 | 26 |
| ZR28K3PFJ522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR28K3EPFJ522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR34K3PFJ522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR34K3EPFJ522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR36K3PFJ522 | 8850 | 3 | 49.5 | 16.4 | 29.5 |
| ZR40K3PFJ522 | 9620 | 3.33 | 54.19 | 17.1 | 32 |
| ZR42K3PFJ522 | 10140 | 3.5 | 56.8 | 17.1 | 30 |
| ZR47K3PFJ522 | 11500 | 3.9 | 64.1 | 19.3 | 32.6 |
| ZR68KCPFJ522 | 16800 | 5.75 | 93 | 28.2 | 43.5 |
| ZR28K3TFD522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR28K3ETFD522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR36K3TFD522 | 8850 | 3 | 49.5 | 5.7 | 29.5 |
| ZR40K3TFD522 | 9260 | 3.33 | 51.2 | 6.4 | 32 |
| ZR47KCTFD522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR47KCETFD522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR48KCTFD522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
| ZR48KCETFD522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
| ZR54KCTFD522 | 13000 | 4.5 | 73.2 | 8.2 | 35.5 |
| ZR57KCTFD522 | 13660 | 4.75 | 76.9 | 8.2 | 36 |
| ZR57KCETFD522 | 13660 | 4.75 | 76 | 8.2 | 36 |
| ZR61KCTFD522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR61KCETFD522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR68KCTFD522 | 16500 | 5.75 | 93 | 10 | 38.2 |
| ZR72KCTFD522 | 17800 | 6 | 98 | 10 | 38.2 |
| ZR72KCETFD522 | 17800 | 6 | 98 | 10 | 38.2 |
| ZR81KCTFD522 | 19800 | 6.75 | 110.6 | 12 | 40 |
| ZR81KCETFD522 | 19800 | 6.75 | 110.6 | 12 | 40 |
| ZR94KCTFD522 | 23000 | 8 | 127.2 | 16.2 | 59 |
| ZR94KCTFD523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
| ZR94KCETFD523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
| ZR108KCTFD522 | 26670 | 9 | 147.5 | 17.3 | 64 |
| ZR108KCETFD523 | 26670 | 9 | 147.5 | 17.3 | 64 |
| ZR108KCTFD523 | 26900 | 9 | 144.5 | 17.3 | 62.7 |
| ZR125KCTFD522 | 30660 | 10 | 171.4 | 19.2 | 64 |
| ZR125KCETFD523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
| ZR125KCTFD523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
| ZR144KCTFD522 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR144KCETFD523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR144KCTFD523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR16M3TWD551 | 37700 | 13 | 204.3 | 25 | 103.1 |
| ZR16M3ETWD551 | 37700 | 13 | 204.3 | 17.3 | 103 |
| ZR19M3TWD551 | 45900 | 15 | 241.9 | 23.8 | 112.1 |
| ZR19M3ETWD551 | 45900 | 15 | 241.9 | 23.8 | 119 |
