Product Details:
Payment & Shipping Terms:
|
| Type: | Compressor Unit, Parallel Unit | Style: | Multi - Stage Compressor |
|---|---|---|---|
| Compressor Type: | Screw-type Compressor | Application: | Cold Room/Cold Storage |
| Compressor Model: | VHK5343-30 | Cooling Capacity: | 73.4KW |
| Suction Pipe Interface: | 54mm | Exhaust Pipe Interface: | 42mm |
| Outlet Interface: | 28mm | Inlet Pipe Interface: | 35mm |
| Length: | 2000mm | Width: | 1050mm |
| Height: | 1500mm | ||
| Highlight: | ac condenser unit,air cooled condensing unit |
||

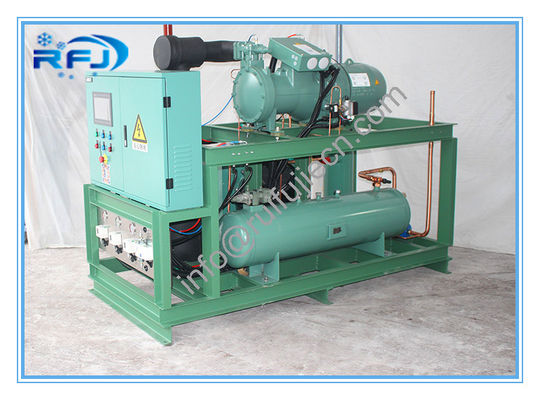

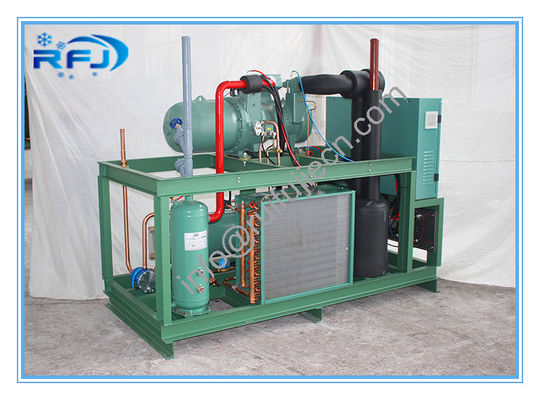

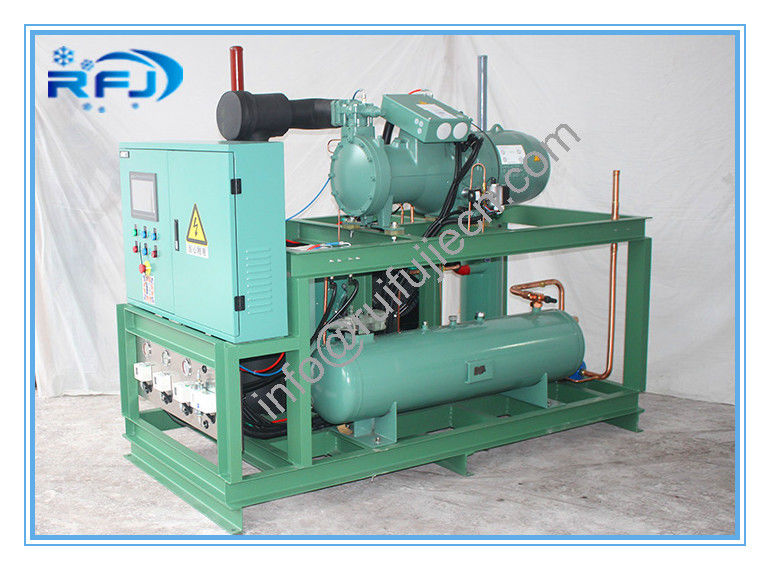

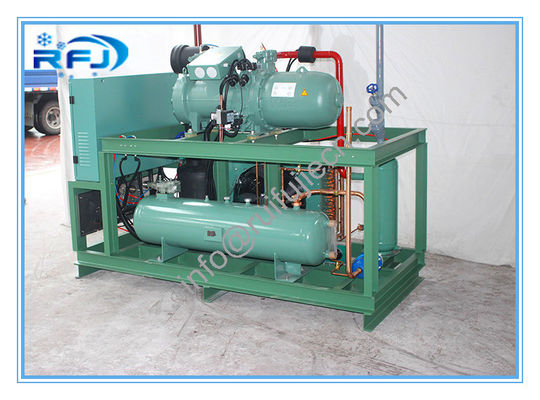

Single Screw Type Compressor Refrigeration Condensing Units / Refrigerator Cooling Unit
Air Cooled single screw type compressor refrigerating condensing unit Rack High Temperature DM1D30RFH
| Warranty | 1 year |
| Type | Compressor unit |
| Compressor type | Screw-type compressor |
| Control power supply | 220V/Custom made |
| Rack main power supply | 380V/Custom made |
| Refrigerant | R22/R404a/other |
| Style | Parallel unit |
| Application | Cold Room/Cold Storage |
| Features | Energy saving |
| Refrigeration temperature | Customizable |
| Main accessories | |
| Compressors | Storage tanks |
| Filters | Oil separate |
| Distribution box | Ac contactors |
| Time relays | Indicator light |
| Sight glass | Expansion valve |
| Condenser | Silencer |
| High and low voltage meter | Pressure controller |
| High pressure hoses | Overload thermal relays |
| Pressure switch | Knob switch |
Screw-type parallel compressor unit
Energy saving and reliable,medium, low and super low temperature working condition,Widely used in foods, chemical, pharmaceutical, display cases, supermarket and industrial refrigeration.
l General Description
The BHLG series Product feature by their structures of multi- Hanbell compressors paralleled together to form one integrated systems. The products are applicable to large size cold rooms, ice making, chilled water making etc with temperature requirement ranging -5℃~ 5℃and -20℃~-15℃. The products are equipped with multi protection devices for wrong direction, overheating, overloading, overhigh discharging temperature, overlower oil level, oil flow, and high and low pressures etc.
l Standard components:
Copeland/Bizter /Maneurop/Hanbell/Fusheng
Filter drier
Liquid receiver
Pressure gauge
Solenoid valve
Pressure control
Electrical panel
l Optional components:
Fan speed control
Oil separator
Vibration eliminator
Suction accumulator
Sight glass
Crankcase heater
l Technical Details:
Water Cooled M/H type Racks
Design working Condition: Evaporation Temperature: -7℃. Cooling water Tin/Tout: 30℃/35℃.
| Model | HLGS | |||||||||
| 30M | 40M | 50M | 60M | 70M | 80M | 90M | ||||
| compressor | Model | RC2-100B | RC2-140B | RC2-180B | RC2-230B | RC2-260B | RC2-310B | RC2-340B | ||
| Type | Screw | |||||||||
| Capacity regulator | 66%-100% | 50%-75%-100% | ||||||||
| Te-5℃ | Cap(kW) | 66.9 | 91.2 | 119.8 | 159 | 174.5 | 217.5 | 237.9 | ||
| Input(kW) | 21.9 | 28.9 | 36.2 | 48.4 | 52.7 | 62.4 | 68.7 | |||
| Te-7℃ | Cap(kW) | 61.8 | 84.3 | 110.7 | 146.9 | 161.3 | 201 | 219.9 | ||
| Input(kW) | 21.6 | 28.4 | 35.6 | 47.5 | 51.8 | 61.3 | 67.5 | |||
| Te-10℃ | Cap(kW) | 54.7 | 74.7 | 98.1 | 130.2 | 142.9 | 178.2 | 194.9 | ||
| Input(kW) | 21.0 | 27.7 | 34.7 | 46.3 | 50.4 | 59.7 | 65.8 | |||
| Room Tem(℃) | -5~5℃ | |||||||||
| Refrigerant | R22 | |||||||||
| Power supply | 380V/3P/50Hz | |||||||||
| Max current | A | 69 | 91 | 121 | 158 | 171 | 203 | 220 | ||
| Condnsr | Type | Shell & tube | ||||||||
| Water flow(m3/h) | 19 | 26 | 34 | 45 | 49 | 60 | 66 | |||
| dia | DN65 | DN65 | DN80 | DN80 | DN100 | DN100 | DN100 | |||
| Gas dia(mm) | Φ54 | Φ54 | Φ67 | Φ76 | Φ76 | Φ76 | Φ108 | |||
| Liquid dia(mm) | Φ28 | Φ28 | Φ35 | Φ35 | Φ35 | Φ35 | Φ42 | |||
| Overall sizes | A(mm) | 1700 | 1700 | 2150 | 2300 | 2300 | 2600 | 2600 | ||
| B(mm) | 670 | 670 | 680 | 770 | 770 | 850 | 850 | |||
| C(mm) | 1100 | 1100 | 1100 | 1250 | 1250 | 1250 | 1300 | |||
| Install sizesa×b (mm) | 120*390 | 120*390 | 120*390 | 1200*500 | 1200*500 | 1500*500 | 1500*500 | |||
