ZP Copeland Scroll Compressor Refrigeration Controls ZP36KSE-TFM

Name: ZP Copeland Scroll Compressor Refrigeration Controls ZP36KSE-TFM
Brand: Copeland
SKU: ZP36KSE-TFM
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (135 reviews)

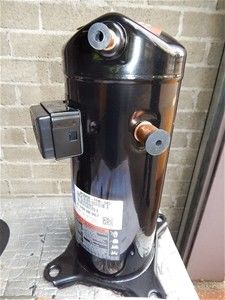

Large Image : ZP Copeland Scroll Compressor Refrigeration Controls ZP36KSE-TFM

Product Details:

Place of Origin:	China
Brand Name:	Copeland
Certification:	CE
Model Number:	ZP36KSE-TFM

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	discussed
Packaging Details:	wooden package
Delivery Time:	1-4 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 pieces

Contact Now

Detailed Product Description

Place Of Origin:	China	Type:	Refrigeration Compressor
Refrigerant:	R410a	Color:	Black
Guarantee:	One Years	Brand Name:	Copeland
Application:	Refrigeration Parts	Displacement:	6.0
High Light:	copeland ac compressor , commercial refrigeration compressor

ZP Copeland Scroll Compressor copeland refrigerant compressor,copeland refrigeration compressor ZP36KSE-TFM

Hermetic Scroll Copeland Compressor ZP Series
1,ZP16KSE,ZP24KSE,ZP29KSE,ZP31KSE,ZP36KSE,
2,Use R410A
3,Low price & Original

Type: Hermetic scroll compressors

Producer: Copeland

Series: ZP

Model: ZP36KSE-TFM

Technical data


Displacement [m³/h]:	6,0
Sound power [dBA]:	68
Sound pressure level [dB]:	57
Net Weight [kg]:	29,4
Oil charge [dm³]:	1,3
Maximum high pressure [bar]:	43
Maximum standstill pressure [bar]:	28,0
Maximum lowside temperature [°C]:	50
PED category:	1

Electrical data


Power supply [V/~/Hz]:	220-240V/1/50Hz
Locked rotor current [A]:	98,0
Max. operating current [A]:	22,0
Winding resistance [Ω]:	0,7
Start winding resistance [Ω]:	0,9

Connections

		inches
Suction connection with supplied sleeve:		7/8"
Discharge connection with supplied sleeve:		1/2"

Series features

25 models in series
displacement from 2,6 m³/h to 60,8 m³/h
cooling capacity:
1) from 3,2 kW to 82,4 kW (for te=5ºC, tc=50ºC, R410A)
available with motors on 50 Hz and 60 Hz
lubrication with ester oil

Standard equipment

screwed sight glass
Rotalock connections
Schraeder connection
assembly washer
discharge temperature control

Optional equipment

external crankcase heater (70W)

Application

medium temperatures (from 7 ºC to -30 ºC)
refrigerant R410A
