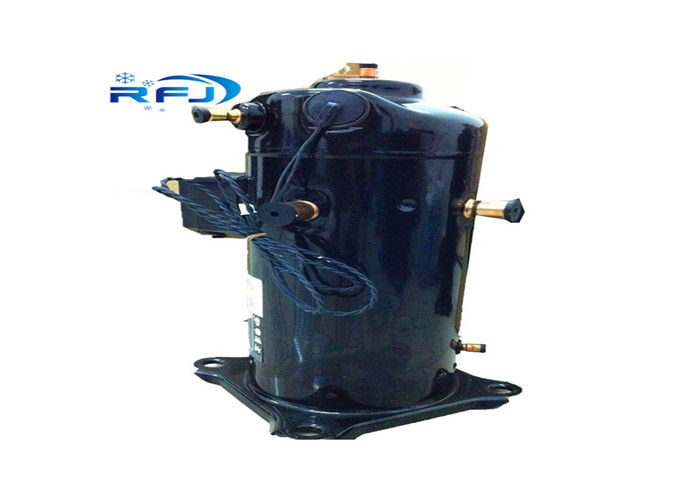

20kW 7.5HP AC Scroll Compressor ZPD91KCE-TFD-950 For R410
7.5HP AC Scroll Compressor
,20kW AC Scroll Compressor
,ZPD91KCE-TFD-950
7.5HP Scroll Digital Compressor ZPD91KCE-TFD-950
Description:
Scroll Digital compressor increases HVAC system efficiency via capacity modulation and provide energy savings by precisely matching compressor output to your heating or cooling needs. This technology is perfect for buildings or rooms which experience widely varying loads or where tight temperature and humidity control are needed.
Technical data:
Refrigerant: R410A
Power range(W): 15 - 20 kW
Connecting size: 3/4"
Suction: 7/8"
Design type: Hermetic
Model series: ZPD
Power range(HP): 6-8
Power supply: 400 V
Article condition: New
Info: Oil filled
Shipping weight: 42,00 Kg
Dimensions ( length × width × height ): 24,10 × 24,60 × 48,40 cm
Manufacturer: Emerson
Model: ZPD91KCE-TFD
Power (W): 19200
Power (HP): 7,5
Max. Starting current (A): 101
Max. Operating current (A): 16
dbA @ 1m: 69
Conveying and suction volume (m3): 14,7
Oil quantity (l): 1,8
Compressor type: Scroll
Suction (inch): 7/8
Discharge (inch): 3/4
| Product name | digital scroll compressor |
| Model |
ZPD91KCE-TFD-950 |
| Brand | |
| Application | HVAC |
| MOQ | 1 piece |
