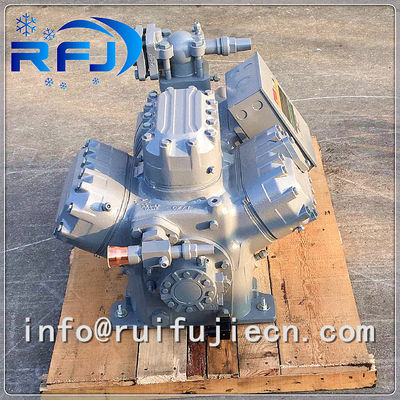

Quality 40 Horse Power R407 DWN D6DH-3500-AWM/D For Big Cold Room with best Price factory

40 Horse Power R407 DWN D6DH-3500-AWM/D For Big Cold Room with best Price

Name: 40 Horse Power R407 DWN D6DH-3500-AWM/D For Big Cold Room with best Price
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: D6DH-3500-AWM/D
Price: 10000 USD
Availability: InStock

Place of Origin:Belgium

Certification:CE,SGS

Model Number:D6DH-3500-AWM/D

Minimum Order Quantity:1 Piece

Price:discussed

Standard Packaging:Standard wooden packaging

Delivery Time:10-12 days

Payment Terms:T/T,Western Union,

Supply Ability:500000.00 pcs/year

Tags:

refrigerator compressor

semi hermetic reciprocating compressor

semi hermetic compressor

Product Details

Highlight:

semi hermetic compressor

refrigerator compressor

Color: Grey

Cylinder Count: 6

Displacement [m³/H: 106

Weight [Kg: 262

Oil Charge [dm³: 4.3

Max. Operating Current [A: 63.5

Locked Rotor Current [A: 284

Power Supply [V/~/Hz: 380-420V/3/50Hz

Suction Line:: 2 1/8"

Discharge Line: 1 3/8"

Product Description

Detailed Specifications & Features

40 Horse Power R407 DWN D6DH-4000-AWM/D For Big Cold Room

Cooling capacity [kW]

t_c t_e	-25	-20	-15	-10	-5	0	5	10
30	34.69	43.57	53.96	66.11	80.25	96.60	115.41	136.89
35	32.39	40.98	50.98	62.60	76.10	91.69	109.62	130.11
40	30.06	38.36	47.94	59.03	71.88	86.70	103.74	123.22
45	-	35.69	44.85	55.40	67.59	81.63	97.77	116.23
50	-	33.01	41.73	51.73	63.25	76.50	91.73	109.17
55	-	-	38.59	48.03	58.86	71.31	85.63	102.02
60	-	-	35.43	44.29	54.44	66.08	79.47	94.82

Power input [kW]

t_c t_e	-25	-20	-15	-10	-5	0	5	10
30	14.00	15.33	16.54	17.57	18.35	18.82	18.93	18.62
35	14.83	16.35	17.78	19.05	20.10	20.88	21.33	21.39
40	15.63	17.33	18.96	20.46	21.78	22.86	23.63	24.04
45	-	18.25	20.08	21.81	23.38	24.74	25.83	26.58
50	-	19.13	21.14	23.08	24.90	26.54	27.93	29.02
55	-	-	22.15	24.29	26.34	28.24	29.92	31.33
60	-	-	23.09	25.43	27.70	29.85	31.81	33.54

Current [A]

t_c t_e	-25	-20	-15	-10	-5	0	5	10
30	30.57	32.30	33.92	35.33	36.42	37.10	37.26	36.78
35	31.64	33.66	35.61	37.40	38.92	40.06	40.73	40.82
40	32.69	34.99	37.28	39.44	41.38	42.99	44.17	44.81
45	-	36.29	38.90	41.43	43.79	45.86	47.54	48.74
50	-	37.53	40.46	43.36	46.12	48.65	50.84	52.59
55	-	-	41.94	45.20	48.37	51.36	54.05	56.34
60	-	-	43.31	46.94	50.51	53.95	57.13	59.97

Mass flow [kg/s]

t_c t_e	-25	-20	-15	-10	-5	0	5	10
30	661.01	837.56	1 041.91	1 281.35	1 563.20	1 894.76	2 283.32	2 736.19
35	639.29	815.38	1 018.60	1 256.24	1 535.61	1 864.01	2 248.74	2 697.11
40	616.24	791.56	993.32	1 228.84	1 505.41	1 830.34	2 210.92	2 654.47
45	-	766.17	966.16	1 199.24	1 472.69	1 793.82	2 169.94	2 608.34
50	-	739.30	937.20	1 167.51	1 437.52	1 754.54	2 125.88	2 558.82
55	-	-	906.52	1 133.75	1 400.00	1 712.59	2 078.82	2 505.98
60	-	-	874.20	1 098.02	1 360.20	1 668.04	2 028.84	2 449.91

C.O.P. [W/W]

t_c t_e	-25	-20	-15	-10	-5	0	5	10
30	2.48	2.84	3.26	3.76	4.37	5.13	6.10	7.35
35	2.18	2.51	2.87	3.29	3.79	4.39	5.14	6.08
40	1.92	2.21	2.53	2.88	3.30	3.79	4.39	5.13
45	-	1.96	2.23	2.54	2.89	3.30	3.79	4.37
50	-	1.73	1.97	2.24	2.54	2.88	3.28	3.76
55	-	-	1.74	1.98	2.23	2.53	2.86	3.26
60	-	-	1.53	1.74	1.97	2.21	2.50	2.83

Type: Semi-hermetic piston compressors

Producer:

Series: DISCUS

Model: D6DH-3500

Technical data


Cylinder count:	6
Displacement [m³/h]:	106
Weight [kg]:	262
Oil charge [dm³]:	4,3
Max. operating current [A]:	63,5
Locked rotor current [A]:	284
Power supply [V/~/Hz]:	380-420V/3/50Hz

Connections


	milimeters	inches
Suction line:		2 1/8"
Discharge line:		1 3/8"

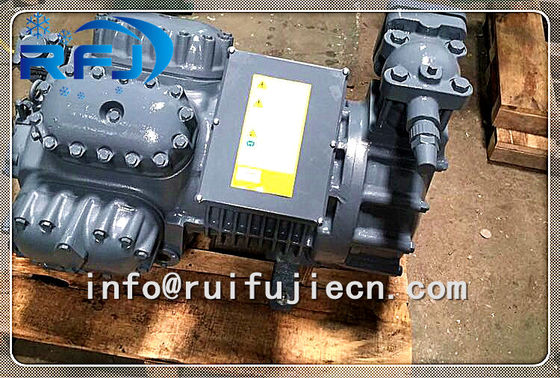

DWM Semi-hermetic Compressor D6DH-350 X,D6DH-3500

Standard equipment

oil pump
oil sight glass
Rotalock valves
thermal protections

Optional equipment

additional header cooling
oil pressure switch
crankcase heater
unload starting
capacity control

Application

high, medium and low temperatures
(R22 from 12,5 ºC to -50 ºC)
(R404A/R507 from 7 ºC to -50 ºC)
(R134a from 12,5 ºC to -20 ºC)
(R407A from 7 ºC to -45 ºC)
