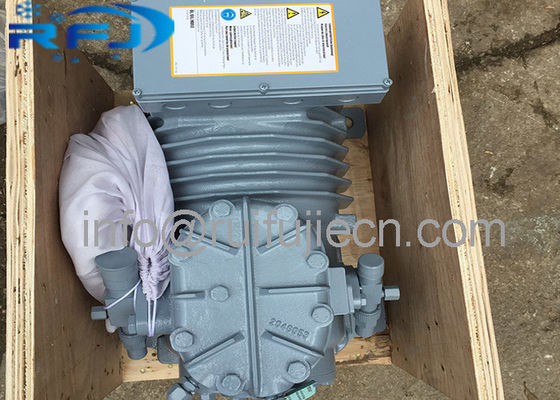

D6SF-200X Semi Hermetic Refrigeration Compressor R407 DWN For Big Cold Room

Name: D6SF-200X Semi Hermetic Refrigeration Compressor R407 DWN For Big Cold Room
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: D6SF-200X
Price: 10000 USD
Availability: InStock

Model Number:	D6SF-200X
MOQ:	1 Piece
Price:	discussed
Delivery Time:	10-12 days
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Belgium

Certification:

CE,SGS

Color:

Grey

Cylinder Count:

Displacement [m³/h:

106

Weight [kg:

262

Oil Charge [dm³:

4.3

Max. Operating Current [A:

63.5

Locked Rotor Current [A:

284

Power Supply [V/~/Hz:

380-420V/3/50Hz

Suction Line::

2 1/8"

Discharge Line:

1 3/8"

Packaging Details:

Standard wooden packaging

Supply Ability:

500000.00 pcs/year

Highlight:

semi hermetic compressor

refrigerator compressor

Product Description

D6SF-200X 20 Horse Power R407 DWN For Big Cold Room with best Price

Cooling capacity [kW]

t_c t_e	-25	-20	-15	-10	-5	0	5	10
30	34.69	43.57	53.96	66.11	80.25	96.60	115.41	136.89
35	32.39	40.98	50.98	62.60	76.10	91.69	109.62	130.11
40	30.06	38.36	47.94	59.03	71.88	86.70	103.74	123.22
45	-	35.69	44.85	55.40	67.59	81.63	97.77	116.23
50	-	33.01	41.73	51.73	63.25	76.50	91.73	109.17
55	-	-	38.59	48.03	58.86	71.31	85.63	102.02
60	-	-	35.43	44.29	54.44	66.08	79.47	94.82

Power input [kW]

t_c t_e	-25	-20	-15	-10	-5	0	5	10
30	14.00	15.33	16.54	17.57	18.35	18.82	18.93	18.62
35	14.83	16.35	17.78	19.05	20.10	20.88	21.33	21.39
40	15.63	17.33	18.96	20.46	21.78	22.86	23.63	24.04
45	-	18.25	20.08	21.81	23.38	24.74	25.83	26.58
50	-	19.13	21.14	23.08	24.90	26.54	27.93	29.02
55	-	-	22.15	24.29	26.34	28.24	29.92	31.33
60	-	-	23.09	25.43	27.70	29.85	31.81	33.54

Current [A]

t_c t_e	-25	-20	-15	-10	-5	0	5	10
30	30.57	32.30	33.92	35.33	36.42	37.10	37.26	36.78
35	31.64	33.66	35.61	37.40	38.92	40.06	40.73	40.82
40	32.69	34.99	37.28	39.44	41.38	42.99	44.17	44.81
45	-	36.29	38.90	41.43	43.79	45.86	47.54	48.74
50	-	37.53	40.46	43.36	46.12	48.65	50.84	52.59
55	-	-	41.94	45.20	48.37	51.36	54.05	56.34
60	-	-	43.31	46.94	50.51	53.95	57.13	59.97

Mass flow [kg/s]

t_c t_e	-25	-20	-15	-10	-5	0	5	10
30	661.01	837.56	1 041.91	1 281.35	1 563.20	1 894.76	2 283.32	2 736.19
35	639.29	815.38	1 018.60	1 256.24	1 535.61	1 864.01	2 248.74	2 697.11
40	616.24	791.56	993.32	1 228.84	1 505.41	1 830.34	2 210.92	2 654.47
45	-	766.17	966.16	1 199.24	1 472.69	1 793.82	2 169.94	2 608.34
50	-	739.30	937.20	1 167.51	1 437.52	1 754.54	2 125.88	2 558.82
55	-	-	906.52	1 133.75	1 400.00	1 712.59	2 078.82	2 505.98
60	-	-	874.20	1 098.02	1 360.20	1 668.04	2 028.84	2 449.91

C.O.P. [W/W]

t_c t_e	-25	-20	-15	-10	-5	0	5	10
30	2.48	2.84	3.26	3.76	4.37	5.13	6.10	7.35
35	2.18	2.51	2.87	3.29	3.79	4.39	5.14	6.08
40	1.92	2.21	2.53	2.88	3.30	3.79	4.39	5.13
45	-	1.96	2.23	2.54	2.89	3.30	3.79	4.37
50	-	1.73	1.97	2.24	2.54	2.88	3.28	3.76
55	-	-	1.74	1.98	2.23	2.53	2.86	3.26
60	-	-	1.53	1.74	1.97	2.21	2.50	2.83

Type: Semi-hermetic piston compressors

Producer:

Series: DISCUS

Model: D6DH-3500

Technical data


Cylinder count:	6
Displacement [m³/h]:	106
Weight [kg]:	262
Oil charge [dm³]:	4,3
Max. operating current [A]:	63,5
Locked rotor current [A]:	284
Power supply [V/~/Hz]:	380-420V/3/50Hz

Connections


	milimeters	inches
Suction line:		2 1/8"
Discharge line:		1 3/8"

D6SF-200X Semi Hermetic Refrigeration Compressor R407 DWN For Big Cold Room 0

Standard equipment

oil pump
oil sight glass
Rotalock valves
thermal protections

Optional equipment

additional header cooling
oil pressure switch
crankcase heater
unload starting
capacity control

Application

high, medium and low temperatures
(R22 from 12,5 ºC to -50 ºC)
(R404A/R507 from 7 ºC to -50 ºC)
(R134a from 12,5 ºC to -20 ºC)
(R407A from 7 ºC to -45 ºC)

D6SF-200X Semi Hermetic Refrigeration Compressor R407 DWN For Big Cold Room 1
