Product Details:
Payment & Shipping Terms:
|
| Application: | Cold Storage Room Freezer | Compressor Type: | Semi-hermetic Piston Compressors |
|---|---|---|---|
| Application Refrigerant: | R404A R134A | Certification: | CE 3CCC |
| Place Of Origin: | Jiangsu, China (Mainland) | Horse Power(HP: | 15HP |
| High Light: | semi hermetic reciprocating compressor,air cooled condensing unit |
||
|

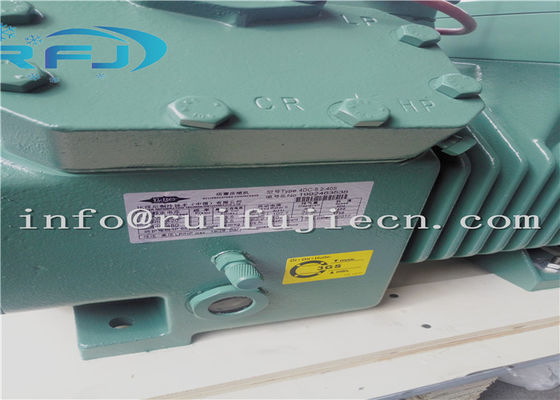

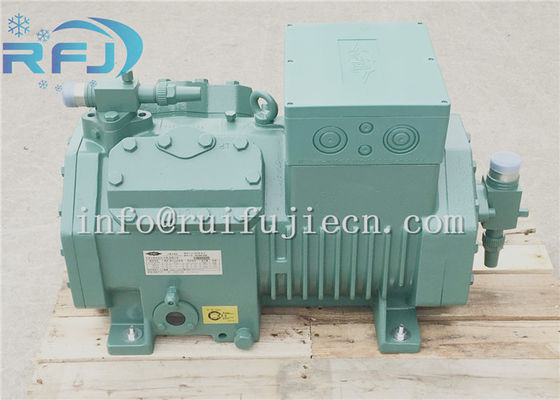

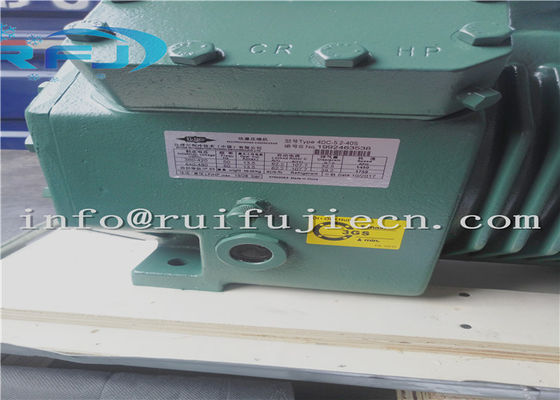

Low price piston refrigeration compressor 4H-15.2Y / 4HE-18Y 4H-15.2Y / 4HE-18Y |
|
| Brand | |
| Model no. | 4H-15.2Y / 4HE-18Y |
| Motor Size( HP) | 15 |
| Motor version | 1 |
| Displacement Type(m 3/h) | 84.6 |
| oil charge (dm3) | 4.5 |
| Voltage | 380-420V/3PH/50Hz or 440-480V/3PH/60Hz |
| No of cylinders | 4 |
| Refregrant | R-22, R134, R410A |
| Certification | VDE, TUV, UL and CE |
| weight(kg) | 190 |
| Place Of Original | Germany |

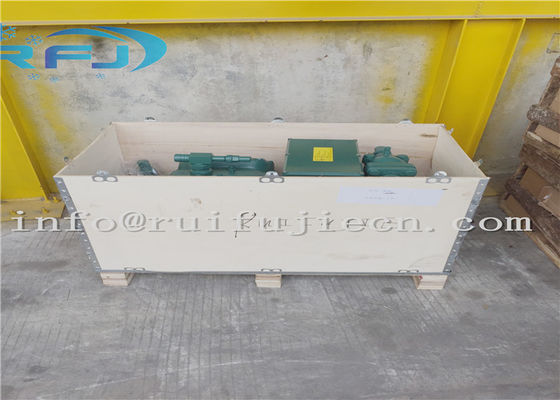

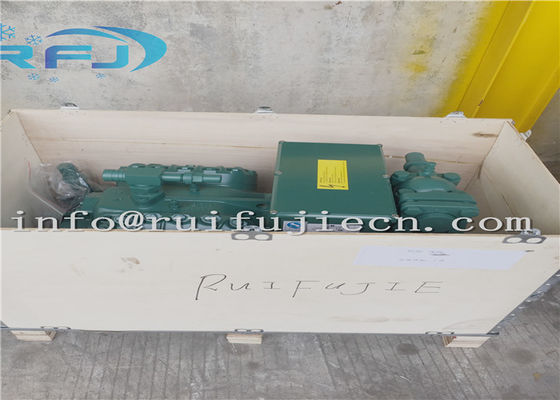

| packing | wooden case |
The advantage of the compressor:
Energy efficient
High-efficiency profile
Infinite or closely stepped capacity control
Optimum economiser operation
Universal
R134a, R407C and R22 (R404A, R507A upon request)
With and without economiser (ECO)
Flexible
Dual capacity control
Changeable between 4-stage and infinite capacity control-without retrofitting the compressor
Suction and discharge gas connections can be rotated in 90" increments
