products details

Home Products

Semi Hermetic Piston Compressor 4NES-12Y-40P Low / Mid Temperature Model 4PCS-10.2Y-40P

Name: Semi Hermetic Piston Compressor 4NES-12Y-40P Low / Mid Temperature Model 4PCS-10.2Y-40P
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: 4NES-12Y-40P,4PCS-10.2Y-40P
Price: 10000 USD
Availability: InStock

Model Number:	4NES-12Y-40P,4PCS-10.2Y-40P
MOQ:	1
Price:	discussed
Delivery Time:	1-6DAYS
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE 3C

Place Of Origin::

Germany

Application::

Refrigeration Parts

Power::

10HP

Refrigerant::

R134A,R404A,R407A,R407F

Weight(kg)::

141

Power Source::

AC Power

Warranty::

1 Year

Packaging Details:

wooden packaging

Supply Ability:

1000

Highlight:

air cooled condenser unit

semi hermetic reciprocating compressor

Product Description

Semi Hermetic Piston Compressor 4NES-12Y-40P Low / Mid Temperature Model 4PCS-10.2Y-40P

Product Overview

Low and mid temperature model 4NES-12Y-40P semi hermetic piston refrigeration compressor featuring advanced technology and reliable performance for industrial refrigeration applications.

Key Features

Advanced technology with compact dimensions, small volume and space requirements
High precision machining ensures compliance with industry standards
CNC processing center with specific concentricity technology and minimal dead space
Steady operation with minimal vibration and low noise levels
Excellent stability and reliability
Environmentally friendly refrigerants including R22 and R404
Electrical motor protection device with PTC sensor
Wear-resistant driver gear, chrome plated piston rings and aluminum pistons
Hardened crank-shaft with low friction bearing set
Efficient valve plate design for high refrigerating capacity and low energy consumption
Valve reed made of imported impact-resistant spring steel
Standard spare parts for convenient maintenance

Technical Specifications

Compressor Type	Motor Version	Displacement at 1450min¯² (m³/h)	Number of Cylinders	Oil Charge (dm³)	Weight (Kg)	Discharge Line (mm)	Discharge Line (pouce)	Suction Line (mm)	Suction Line (pouce)
2KES-05(Y)	1	4.06	2	1.0	43	12	1/2	16	5/8
2JES-07(Y)	1	5.21	2	1.0	43	12	1/2	16	5/8
2HES-1(Y)	2	6.51	2	1.0	44	12	1/2	16	5/8
2HES-2(Y)	1	6.51	2	1.0	45	12	1/2	16	5/8
2GES-2(Y)	1	7.58	2	1.0	45	12	1/2	16	5/8
2FES-2(Y)	2	9.54	2	1.0	45	12	1/2	16	5/8
2FES-3(Y)	1	9.54	2	1.0	47	12	1/2	16	5/8
2EES-2(Y)	2	11.4	2	1.5	68	16	5/8	22	7/8
2EES-3(Y)	1	11.4	2	1.5	71	16	5/8	22	7/8
2DES-2(Y)	2	13.4	2	1.5	68	16	5/8	22	7/8
2DES-3(Y)	1	13.4	2	1.5	71	16	5/8	22	7/8
2CES-3(Y)	2	16.2	2	1.5	70	16	5/8	22	7/8
2CES-4(Y)	1	16.2	2	1.5	70	16	5/8	22	7/8
4FES-3(Y)	2	18.1	4	2.0	82	16	5/8	22	7/8
4FES-5(Y)	1	18.1	4	2.0	86	16	5/8	22	7/8
4EES-4(Y)	2	22.7	4	2.0	84	16	5/8	28	1 1/8
4EES-6(Y)	1	22.7	4	2.0	86	16	5/8	28	1 1/8
4DES-5(Y)	2	26.8	4	2.0	86	22	7/8	28	1 1/8
4DES-7(Y)	1	26.8	4	2.0	89	22	7/8	28	1 1/8
4CES-6(Y)	2	32.5	4	2.0	91	22	7/8	28	1 1/8
4CES-9(Y)	1	32.5	4	2.0	91	22	7/8	28	1 1/8
4VES-6Y	3	34.7	4	2.6	129	22	7/8	28	1 1/8
4VES-7(Y)	2	34.7	4	2.6	129	22	7/8	28	1 1/8
4VES-10(Y)	1	34.7	4	2.6	139	22	7/8	28	1 1/8
4TES-8Y	3	41.3	4	2.6	134	28	1 1/8	35	1 3/8
4TES-9(Y)	2	41.3	4	2.6	134	28	1 1/8	35	1 3/8
4TES-12(Y)	1	41.3	4	2.6	141	28	1 1/8	35	1 3/8
4PES-10Y	3	48.5	4	2.6	139	28	1 1/8	35	1 3/8
4PES-12(Y)	2	48.5	4	2.6	139	28	1 1/8	35	1 3/8
4PES-15(Y)	1	48.5	4	2.6	147	28	1 1/8	42	1 5/8
4NES-12Y	3	56.2	4	2.6	141	28	1 1/8	35	1 3/8
4NES-14(Y)	2	56.2	4	2.6	141	28	1 1/8	35	1 3/8
4NES-20(Y)	1	56.2	4	2.6	150	28	1 1/8	42	1 5/8
4JE-13Y	3	63.5	4	4.0	179	28	1 1/8	42	1 5/8
4JE-15(Y)	2	63.5	4	4.0	190	28	1 1/8	42	1 5/8
4JE-22(Y)	1	63.5	4	4.0	190	28	1 1/8	42	1 5/8
4HE-15Y	3	73.7	4	4.0	183	28	1 1/8	42	1 5/8
4HE-18(Y)	2	73.7	4	4.0	190	28	1 1/8	42	1 5/8
4HE-25(Y)	1	73.7	4	4.0	194	28	1 1/8	54	2 1/8
4GE-20Y	3	84.6	4	4.5	192	28	1 1/8	54	2 1/8
4GE-23(Y)	2	84.6	4	4.5	192	28	1 1/8	54	2 1/8
4GE-30(Y)	1	84.6	4	4.5	206	28	1 1/8	54	2 1/8
4FE-25Y	3	101.8	4	4.5	196	28	1 1/8	54	2 1/8
4FE-28(Y)	2	101.8	4	4.5	207	28	1 1/8	54	2 1/8
4FE-35(Y)	1	101.8	4	4.5	207	28	1 1/8	54	2 1/8
6JE-22Y	3	95.3	6	4.75	213	35	1 3/8	54	2 1/8
6JE-25(Y)	2				228
6JE-33(Y)	1				231
6HE-25Y	3	110.5	6	4.75	224	35	1 3/8	54	2 1/8
6HE-28(Y)	2				228
6HE-35(Y)	1				235
6GE-30Y	3	126.8	6	4.75	228	35	1 3/8	54	2 1/8
6GE-34(Y)	2				228
6GE-40(Y)	1				238
6FE-40Y	3	151.6	6	4.75	238	42	1 5/8	54	2 1/8
6FE-44(Y)	2				241
6FE-50(Y)	1				241
8GE-50(Y)	2	185	8	5	342	42	1 5/8	76	3 1/8
8GE-60(Y)	1				350
8FE-60(Y)	2	221	8	5	361	54	2 1/8	76	3 1/8
8FE-70(Y)	1				374

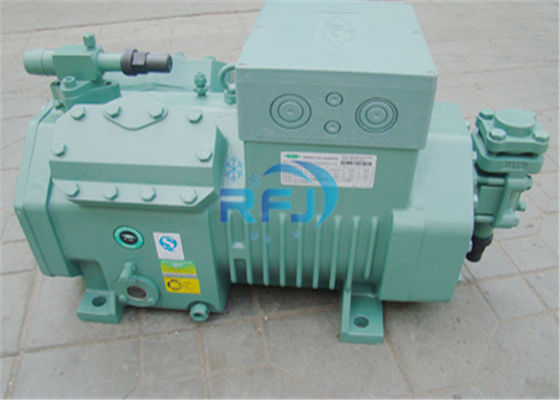

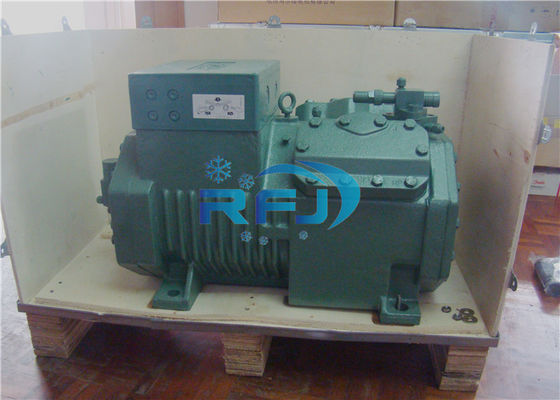

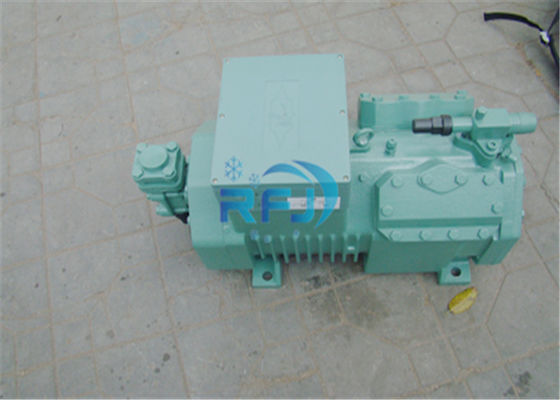

Product Images
