AC Power Semi Hermetic Compressor 4HE-18Y-40P 15HP R22 Refrigerant 4H-15.2Y-40P

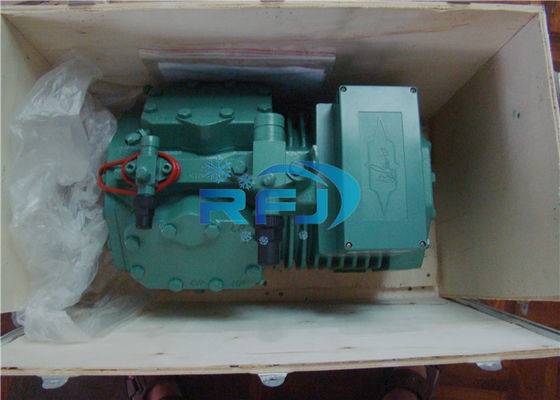

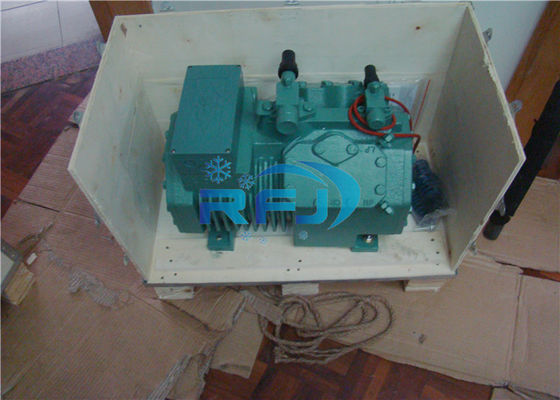

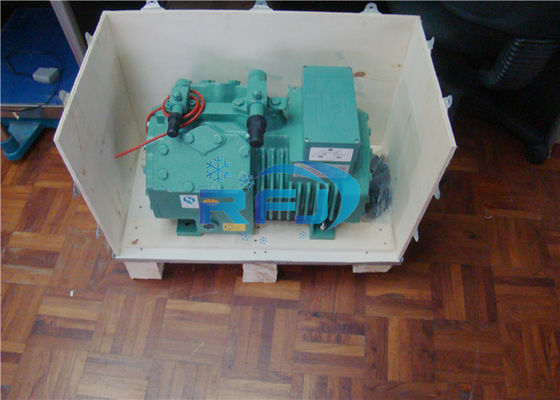

Name: AC Power Semi Hermetic Compressor 4HE-18Y-40P 15HP R22 Refrigerant 4H-15.2Y-40P
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: 4HE-18Y-40P,4H-15.2Y-40P
Price: 10000 USD
Availability: InStock

Model Number:	4HE-18Y-40P,4H-15.2Y-40P
MOQ:	1
Price:	discussed
Delivery Time:	1-7DAYS
Payment Terms:	L/C,D/A,D/P,Western Union,T/T,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ce 3c

Place Of Origin::

Germany

Power::

15HP

Refrigerant::

R22

Weight(kg)::

190

Power Source:

AC Power

Type::

Refrigeration Compressor

Cylinder::

Packaging Details:

wooden packaging

Supply Ability:

1000

Highlight:

semi hermetic reciprocating compressor

air cooled condensing unit

Product Description

AC Power Semi Hermetic Compressor 4HE-18Y-40P 15HP R22 Refrigerant 4H-15.2Y-40P

Packaging & Delivery

Packaging Details

By Sea: Export wooden package, with refrigerant oil

By Air: Full-sealed wooden package, without refrigerant oil

Port: Shenzhen

Lead Time

Quantity (Units)	1 - 3	>3
Est. Time (days)	5	To be negotiated

Compressor Advantages

Energy Efficient: High-efficiency profile, infinite or closely stepped capacity control, optimum economiser operation

Universal: R134a, R407C and R22 (R404A, R507A upon request), with and without economiser (ECO)

Flexible: Dual capacity control, changeable between 4-stage and infinite capacity control without retrofitting, suction and discharge gas connections can be rotated in 90° increments

Advanced technology, compact dimensions, small volume and space requirements
High precision machining ensures compliance with standards
CNC processing center, concentricity due to specific processing technology, minimal dead space
Steady operation, minimal vibration, and low noise with excellent stability
Environmentally friendly refrigerants like R22, R404 for low and mid temperature applications
Electrical motor protection device with PTC sensor
Wear resistant driver gear, chrome plated piston rings, aluminum pistons, hardened crank-shaft, low friction bearing set
Efficient valve plate design, high refrigerating capacity, low energy consumption, efficient compression rate, valve reed made of imported impact resistant spring steel
Universal spare parts for convenient maintenance

Compressor Specifications

Model	Cylinders	Bore (mm)	Stroke (mm)	Speed (RPM)	Displacement (m³/h)	Suction	Discharge
4JE-15(Y)	2	63.5	4	4.0	190	1 1/8	1 5/8
4JE-22(Y)	1	63.5	4	4.0	190	1 1/8	1 5/8
4HE-15Y	3	73.7	4	4.0	183	1 1/8	1 5/8
4HE-18(Y)	2	73.7	4	4.0	190	1 1/8	1 5/8
4HE-25(Y)	1	73.7	4	4.0	194	1 1/8	2 1/8
4GE-20Y	3	84.6	4	4.5	192	1 1/8	2 1/8
4GE-23(Y)	2	84.6	4	4.5	192	1 1/8	2 1/8
4GE-30(Y)	1	84.6	4	4.5	206	1 1/8	2 1/8
4FE-25Y	3	101.8	4	4.5	196	1 1/8	2 1/8
4FE-28(Y)	2	101.8	4	4.5	207	1 1/8	2 1/8
4FE-35(Y)	1	101.8	4	4.5	207	1 1/8	2 1/8
6JE-22Y	3	95.3	6	4.75	213	1 3/8	2 1/8
6JE-25(Y)	2	95.3	6	4.75	228	1 3/8	2 1/8
6JE-33(Y)	1	95.3	6	4.75	231	1 3/8	2 1/8
6HE-25Y	3	110.5	6	4.75	224	1 3/8	2 1/8
6HE-28(Y)	2	110.5	6	4.75	228	1 3/8	2 1/8
6HE-35(Y)	1	110.5	6	4.75	235	1 3/8	2 1/8
6GE-30Y	3	126.8	6	4.75	228	1 3/8	2 1/8
6GE-34(Y)	2	126.8	6	4.75	228	1 3/8	2 1/8
6GE-40(Y)	1	126.8	6	4.75	238	1 3/8	2 1/8
6FE-40Y	3	151.6	6	4.75	238	1 5/8	2 1/8
6FE-44(Y)	2	151.6	6	4.75	241	1 5/8	2 1/8
6FE-50(Y)	1	151.6	6	4.75	241	1 5/8	2 1/8
8GE-50(Y)	2	185	8	5	342	1 5/8	3 1/8
8GE-60(Y)	1	185	8	5	350	1 5/8	3 1/8
8FE-60(Y)	2	221	8	5	361	2 1/8	3 1/8
8FE-70(Y)	1	221	8	5	374	2 1/8	3 1/8

Company Advantages

First level agent offering competitive pricing
All models available in stock
Fast delivery within 1-7 days after payment
Comprehensive after-sales service
Established client base both domestically and internationally

Product Features

1) New Valve Plate Design

New geometric concept for pressure valves - for low rear expansion
High cooling capacity with minimal energy requirements
The ECOLINE cylinder head system: Flexible operation in tandem

2) Motor

Efficient under full- and part-load thanks to its broadband characteristics
The universal refrigeration compressor: Motor version 2 for medium and low temperature applications
Motor versions 1 and 3 for special applications

3) Capacity Control

The CRII system - intermittent blocked suction. For example, 4-cylinder compressor with CRII on both heads: Range of control from 100% to ~10%
ECOLINE VARISPEED - built-in frequency inverter

4) Downward Compatible

Essential internal components completely redesigned
Outer contour as standard: Every ECOLINE is downward compatible

5) Drive Gear
