Product Details:
Payment & Shipping Terms:
|
| Brand Name: | RFJ | Temperature:: | -15-45 |
|---|---|---|---|
| Dimension(L*W*H):: | 10000*6600*3000mm | Refrigerent:: | R404A |
| Rack In Cold Room: | Can Be Provided | Volume:: | Exterior |
| Voltage:: | 380V~420V,50/60HZ.3P; | Power(W):: | 2000w |
| Highlight: | cold room cooler,cold room freezer |
||

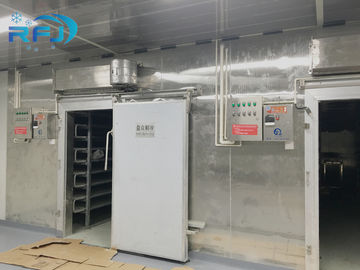

1.Air blast freezer is for fresh meat, seafood, chicken, etc. It is equipped with 200mm PU panel, using cooling machines to cool down within 4-6 hours.
2.
To keep meat in good quality, they have to get frozen in 4~6 hours, even shorter.
3.
Normally we use two stages compressor or screw compressor. Room temperature -35C to -45C
4.
Big fin space design, powerful air flow. Stainless steel cabinet. It's totally not same as normal heavy duty evaporator.
5.
To ensure no corrosion, even you clean the floor everyday, we have to use the stainless steel, grade 304. Standards thickness is 0.6mm.
6.

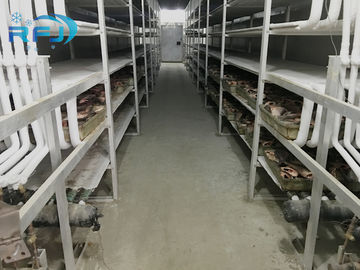

trolley dimension and quantity are designed based on customers need and the blast freezer internal dimension, ensure all trolley could be frozen at same time.
7.
Customer info: This project is for slaughterhouse and processing plant. Freezing quantity is 10 tons per day. Room temperature -35~-40C.
Order info:
2x30HP two stages compressors, rack systems, with remote air cooled condenser.
Floor mounted blast evaporator, SUS304 cabinet. Fan motor is on side, blowing the air.
200mm PU panels with 0.8mm color plate
We' re the only one manufacturer in China who has two continuous PIR automated lines, one from German, the other from Italy. Annual output up to 2,800,000 sqm panel, 10,000 units cold room doors. We can ensure our panels lifetime 20 years at least.
Our factory can design and produce all kinds of condensing unit, compressor rack, condenser, evaporator, etc. All these years, we’re agent of compressor and , better price, shorter production time, less quality troubles.
