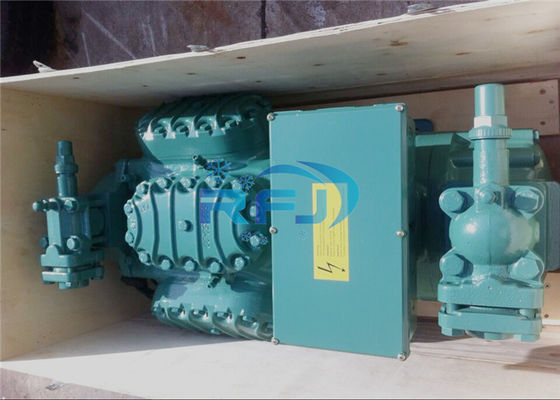

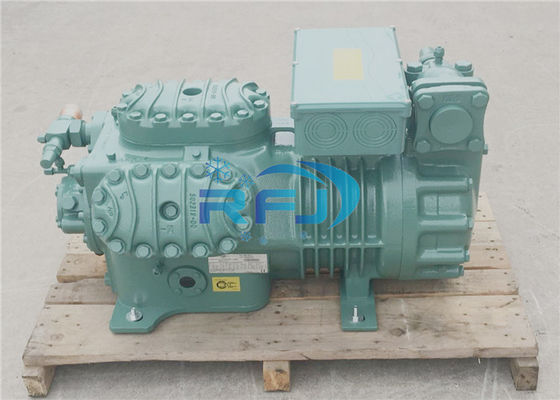

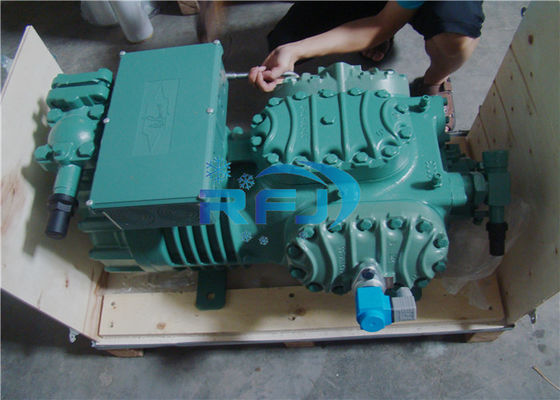

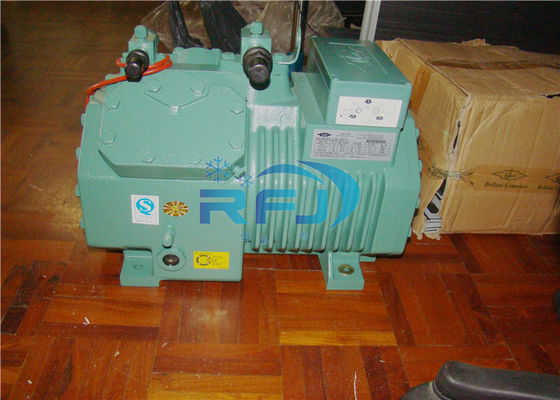

8 Cylinders Piston Compressor 8FE-70Y-40P Dual Capacity Control 70HP Power 8FC-70.2Y-40P

Name: 8 Cylinders Piston Compressor 8FE-70Y-40P Dual Capacity Control 70HP Power 8FC-70.2Y-40P
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: 8FE-70Y-40P,8FC-70.2Y-40P
Price: 10000 USD
Availability: InStock

Model Number:	8FE-70Y-40P,8FC-70.2Y-40P
MOQ:	1
Price:	discussed
Delivery Time:	1-60DYAS
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Certification:

Type::

Compressor

Place Of Origin:

Germany

Certification::

CE, CSA, GS, ROHS, UL

TYPE::

Semi-hermetic Piston Compressors

Power::

70HP

Cylinder::

Weight(kg)::

374

Packaging Details:

wooden packaging

Supply Ability:

Highlight:

semi hermetic reciprocating compressor

air cooled condensing unit

Product Description

8 Cylinders Piston Compressor 8FE-70Y-40P Dual Capacity Control 70HP Power 8FC-70.2Y-40P

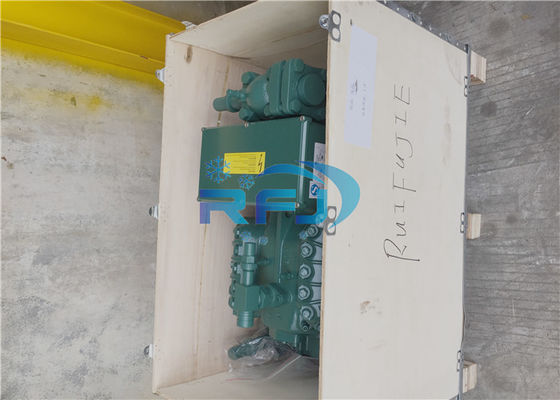

Packaging & Delivery

Packaging Details:

By Sea: Export wooden package, with refrigerant oil
By Air: Full-sealed wooden package, without refrigerant oil

Port: Guangdong/Shenzhen

Lead Time:

Quantity (Units)	1 - 3	>3
Estimated Time (days)	5	To be negotiated

Semi-hermetic Reciprocating Compressor ECOLINE Series

The ECOLINE series offers advanced features for optimal performance in refrigeration applications.

Compressor Advantages

Energy Efficient:

High-efficiency profile
Infinite or closely stepped capacity control
Optimum economiser operation

Universal:

R134a, R407C and R22 (R404A, R507A upon request)
With and without economiser (ECO)

Flexible:

Dual capacity control
Changeable between 4-stage and infinite capacity control - without retrofitting the compressor
Suction and discharge gas connections can be rotated in 90° increments

New Valve Plate Design:

New geometric concept for pressure valves - for low rear expansion
High cooling capacity with minimal energy requirements
The ECOLINE cylinder head system: Flexible operation in tandem

Motor:

Efficient under full- and part-load thanks to its broadband characteristics
The universal refrigeration compressor: Motor version 2 for medium and low temperature applications
Motor versions 1 and 3 for special applications

Capacity Control:

The CRII system - intermittent blocked suction. For example, 4-cylinder compressor with CRII on both heads: Range of control from 100% to ~10%
ECOLINE VARISPEED - built-in frequency inverter

Downward Compatible:

Essential internal components completely redesigned
Outer contour as standard: Every ECOLINE is downward compatible

Drive Gear:

New piston and connecting rod design

Technical Data

Parameter	Value
Displacement (1450 RPM 50Hz)	221 m³/h
Displacement (1750 RPM 60Hz)	266.7 m³/h
No. of cylinder x bore x stroke	8 x 82 mm x 60 mm
Weight	374 kg
Max. pressure (LP/HP)	19 / 28 bar
Connection suction line	76 mm - 3 1/8"
Connection discharge line	54 mm - 2 1/8"
Oil type R134a/R407C/R404A/R507A/R407A/R407F	BSE32 (Standard) / R134a tc>70°C: BSE55 (Option)
Oil type R22 (R12/R502)	B5.2 (Option)

Motor Data

Parameter	Value
Motor version	1
Motor voltage (more on request)	380-420V PW-3-50Hz
Max operating current	139.0 A
Winding ratio	60/40
Starting current (Rotor locked)	401.0 A D / 590.0 A DD
Max. Power input	78.0 kW

Extent of Delivery (Standard)

Component	Specification
Motor protection	SE-B2
Enclosure class	IP54 (Standard)
Vibration dampers	Standard
Oil charge	5.0 dm³

Available Options

Option	Specification
Discharge gas temperature sensor	Option
Capacity control	100-75-50% (Option)
Capacity Control - infinite	100-50% (Option)
Crankcase heater	140 W (Option)
Oil pressure monitoring	MP54 (Option), Delta-PII (Option)

Sound Measurement

Measurement	Value @ 50Hz
Sound power level (+5°C / 50°C)	87.5 dB(A)
Sound power level (-10°C / 45°C)	89.0 dB(A)
Sound pressure level @ 1m (+5°C / 50°C)	79.5 dB(A)
Sound pressure level @ 1m (-10°C / 45°C)	81.0 dB(A)
