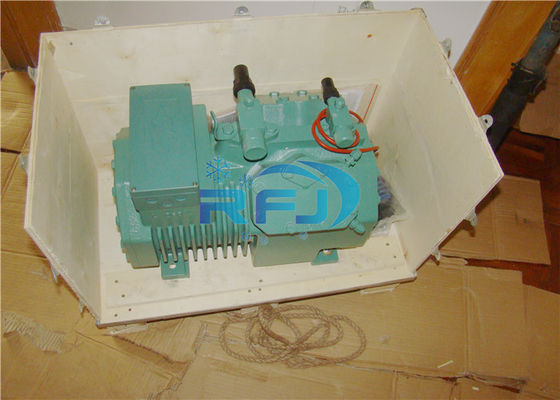

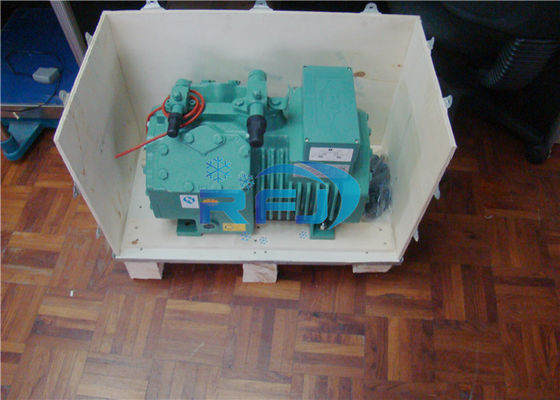

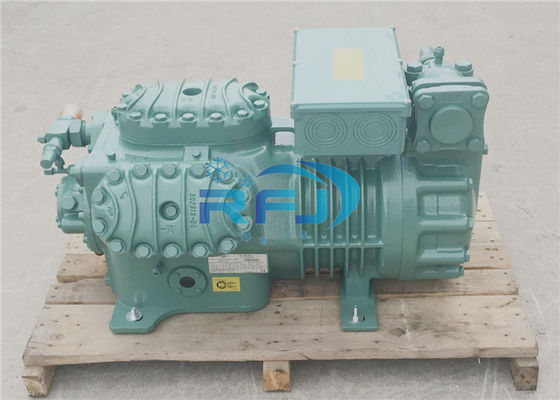

8GE-60Y Semi Hermetic Piston Refrigeration Compressor Low / Mid Temp Mode 8GC-60.2Y

low and mid temperature mode 8GE-60(Y) semi hermetic piston refrigeration compressor


• developed technology,compact deminsions ,small volum and space .
• high precision machining to ensure the compressor confirm with the standard.
• CNC processing center,concentricity due to specific processing technology,mininal dead space .
• steady operation,small vibracation,and low nosie.excellent stability,
• refrigent like R22 ,R404 are adopted to protect environment, for low and mid temperature application,
• electrical motor protect device,ptc sensor.
• wear resistant driver gear,chrome plated piston rings and aluminum pistons ,hardened crank-shaft. low friction bearing set
• efficient valve plate design,high refrigerating capacity and low energy consumption,effcient compression rate.valve reed made of imported impact resistant spring steel.
• general spare parts,convenient maintenance,

• Compressor type	Motor version	Displace-ment at 1450min¯²(m³/h)	Number of cylinders	Oil charge(dm³)	Weight(Kg)	Discharge line		Suction line
  						mm	pouce	mm	pouce
  2KES-05(Y)	1	4.06	2	1.0	43	12	1/2	16	5/8
  2JES-07(Y)	1	5.21	2	1.0	43	12	1/2	16	5/8
  2HES-1(Y)	2	6.51	2	1.0	44	12	1/2	16	5/8
  2HES-2(Y)	1	6.51	2	1.0	45	12	1/2	16	5/8
  2GES-2(Y)	1	7.58	2	1.0	45	12	1/2	16	5/8
  2FES-2(Y)	2	9.54	2	1.0	45	12	1/2	16	5/8
  2FES-3(Y)	1	9.54	2	1.0	47	12	1/2	16	5/8
  2EES-2(Y)	2	11.4	2	1.5	68	16	5/8	22	7/8
  2EES-3(Y)	1	11.4	2	1.5	71	16	5/8	22	7/8
  2DES-2(Y)	2	13.4	2	1.5	68	16	5/8	22	7/8
  2DES-3(Y)	1	13.4	2	1.5	71	16	5/8	22	7/8
  2CES-3(Y)	2	16.2	2	1.5	70	16	5/8	22	7/8
  2CES-4(Y)	1	16.2	2	1.5	70	16	5/8	22	7/8
  4FES-3(Y)	2	18.1	4	2.0	82	16	5/8	22	7/8
  4FES-5(Y)	1	18.1	4	2.0	86	16	5/8	22	7/8
  4EES-4(Y)	2	22.7	4	2.0	84	16	5/8	28	1 1/8
  4EES-6(Y)	1	22.7	4	2.0	86	16	5/8	28	1 1/8
  4DES-5(Y)	2	26.8	4	2.0	86	22	7/8	28	1 1/8
  4DES-7(Y)	1	26.8	4	2.0	89	22	7/8	28	1 1/8
  4CES-6(Y)	2	32.5	4	2.0	91	22	7/8	28	1 1/8
  4CES-9(Y)	1	32.5	4	2.0	91	22	7/8	28	1 1/8
  4VES-6Y	3	34.7	4	2.6	129	22	7/8	28	1 1/8
  4VES-7(Y)	2	34.7	4	2.6	129	22	7/8	28	1 1/8
  4VES-10(Y)	1	34.7	4	2.6	139	22	7/8	28	1 1/8
  4TES-8Y	3	41.3	4	2.6	134	28	1 1/8	35	1 3/8
  4TES-9(Y)	2	41.3	4	2.6	134	28	1 1/8	35	1 3/8
  4TES-12(Y)	1	41.3	4	2.6	141	28	1 1/8	35	1 3/8
  4PES-10Y	3	48.5	4	2.6	139	28	1 1/8	35	1 3/8
  4PES-12(Y)	2	48.5	4	2.6	139	28	1 1/8	35	1 3/8
  4PES-15(Y)	1	48.5	4	2.6	147	28	1 1/8	42	1 5/8
  4NES-12Y	3	56.2	4	2.6	141	28	1 1/8	35	1 3/8
  4NES-14(Y)	2	56.2	4	2.6	141	28	1 1/8	35	1 3/8
  4NES-20(Y)	1	56.2	4	2.6	150	28	1 1/8	42	1 5/8
  4JE-13Y	3	63.5	4	4.0	179	28	1 1/8	42	1 5/8
  4JE-15(Y)	2	63.5	4	4.0	190	28	1 1/8	42	1 5/8
  4JE-22(Y)	1	63.5	4	4.0	190	28	1 1/8	42	1 5/8
  4HE-15Y	3	73.7	4	4.0	183	28	1 1/8	42	1 5/8
  4HE-18(Y)	2	73.7	4	4.0	190	28	1 1/8	42	1 5/8
  4HE-25(Y)	1	73.7	4	4.0	194	28	1 1/8	54	2 1/8
  4GE-20Y	3	84.6	4	4.5	192	28	1 1/8	54	2 1/8
  4GE-23(Y)	2	84.6	4	4.5	192	28	1 1/8	54	2 1/8
  4GE-30(Y)	1	84.6	4	4.5	206	28	1 1/8	54	2 1/8
  4FE-25Y	3	101.8	4	4.5	196	28	1 1/8	54	2 1/8
  4FE-28(Y)	2	101.8	4	4.5	207	28	1 1/8	54	2 1/8
  4FE-35(Y)	1	101.8	4	4.5	207	28	1 1/8	54	2 1/8
  6JE-22Y	3	95.3	6	4.75	213	35	1 3/8	54	2 1/8
  6JE-25(Y)	2				228
  6JE-33(Y)	1				231
  6HE-25Y	3	110.5	6	4.75	224	35	1 3/8	54	2 1/8
  6HE-28(Y)	2				228
  6HE-35(Y)	1				235
  6GE-30Y	3	126.8	6	4.75	228	35	1 3/8	54	2 1/8
  6GE-34(Y)	2				228
  6GE-40(Y)	1				238
  6FE-40Y	3	151.6	6	4.75	238	42	1 5/8	54	2 1/8
  6FE-44(Y)	2				241
  6FE-50(Y)	1				241
  8GE-50(Y)	2	185	8	5	342	42	1 5/8	76	3 1/8
  8GE-60(Y)	1				350
  8FE-60(Y)	2	221	8	5	361	54	2 1/8	76	3 1/8
  8FE-70(Y)	1				374



•
