R22 3HP Daikin Air Conditioner Scroll Compressor Jt90bcb-Y1L AC Power Source
screw type air compressor
,refrigeration compressors

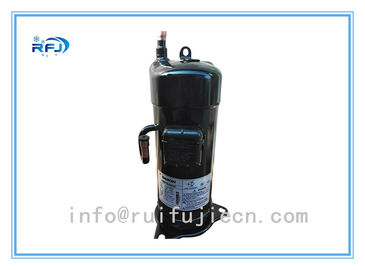

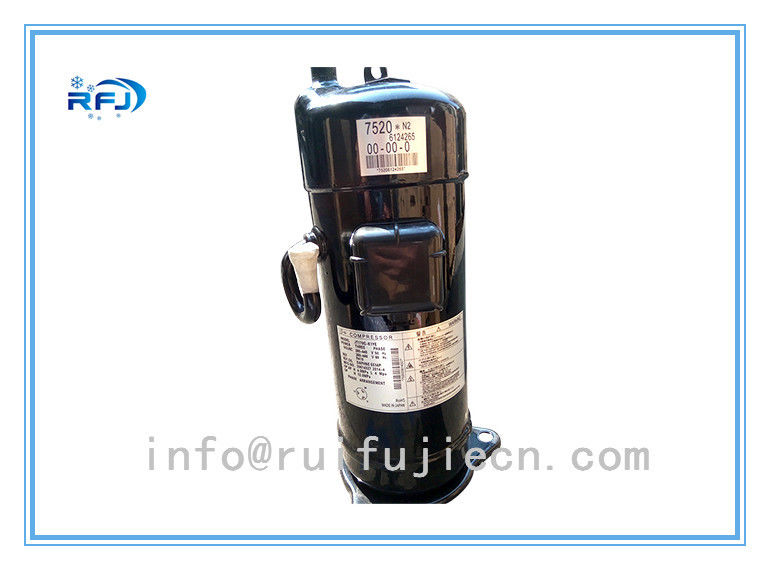

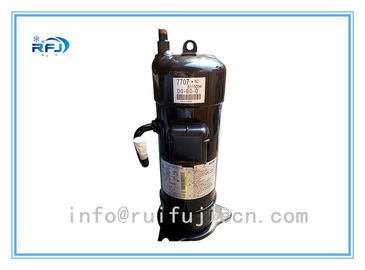

R22 3HP Daikin Air Conditioner Scroll Compressor Jt90bcb-Y1L
Technical data
| Air Conditioning Compressor JT90BC-Y1L |
| Model: JT90BC-Y1L |
| Nominal Power(HP): 3 |
| Imput Power(W): 2750 |
| Cooling Capacity(BTU/H): 8540 |
| Voltage: 380V/50HZ |
| Refrigerant: R22 |
Daikin Scroll Compressor JT series
| Model | Output (HP) | Power Source (V/Hz) | Performance | |||
| Nominal Capacity (W) | Input Power (Kw) | COP (W/W) | Noise (dB) | |||
| JT90BCB-Y1L | 3 | 220/50 | 8540 | 2.89 | 2.96 | 58 |
| JT90BC-Y1L | 3 | 380/50 | 8540 | 2.75 | 3.11 | 58 |
| JT95BCB-Y1L | 3 | 380/50 | 8540 | 2.75 | 3.11 | 58 |
| JT95BC-Y1L | 3 | 380/50 | 9030 | 2.89 | 3.12 | 58 |
| JT125BC-Y1L | 4 | 380/50 | 11900 | 3.8 | 3.13 | 60 |
| 380/60 | 14200 | 4.53 | 3.13 | 63 | ||
| JT125BCB-Y1L | 4 | 380/50 | 11900 | 3.8 | 3.13 | 60 |
| 380/60 | 14200 | 4.53 | 3.13 | 63 | ||
| JT160BC-Y1L | 5 | 380/50 | 15000 | 4.66 | 3.22 | 60 |
| 380/60 | 17900 | 5.53 | 3.23 | 63 | ||
| JT160BCB-Y1L | 5 | 380/50 | 15000 | 4.66 | 3.22 | 60 |
| 380/60 | 17900 | 5.53 | 3.23 | 63 | ||
| JT212D-Y1L | 7.5 | 380/50 | 21500 | 6.49 | 3.31 | 72 |
| JT212D-YE | 400/60 | 25100 | 7.66 | 3.28 | 75 | |
| JT236D-Y1L | 7.5 | 380/50 | 24000 | 7.2 | 3.33 | 72 |
| JT236D-YE | 400/60 | 28300 | 8.53 | 3.32 | 75 | |
| JT265D-Y1L | 8 | 380/50 | 26700 | 7.95 | 3.36 | 72 |
| JT265D-YE | 400/60 | 31800 | 9.45 | 3.37 | 75 | |
| JT300D-Y1L | 10 | 380/50 | 29900 | 8.85 | 3.38 | 72 |
| JT300D-YE | 400/60 | 35200 | 10.4 | 3.38 | 75 | |
| JT315D-Y1L | 11 | 380/50 | 31100 | 9.15 | 3.4 | 72 |
| JT335D-Y1L | 12 | 380/50 | 34000 | 9.98 | 3.41 | 72 |
| JT335D-YE | 400/60 | 40100 | 11.8 | 3.4 | 75 | |
Our main compressor lines are :
· compressors,
scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES
Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES
· performer compressors: SM, SZ, SH SERIES
· commercial compressors: FR, SC SERIES
· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES
Secop compressor, Carrier(Carlyle) compressor
Hitachi compressor,Daikin compressor, Sanyo compressor
Tecumseh compressor, LG compressor, Mitsubishi compressor,
Toshiba compressor, Panasonic compressor, Embraci Aspera compressor
Also , , Carel, Dixell original valves, controls and selected parts
· TE, TDE, TGE, PHT SERIES TERMOSTATIC EXPANSION VALVES
· ETS SERIES EXPANSION VAVLES,
· EVR SERIES ECPANSION VAVLES AND
· KP1,KP5,KP15 SERIES PRESSURE CONTROLS
· DCL DML LIQUID LINE FILTER DRIERS
ZPD Series Scroll Compressor ZPD67KCE-TF5-522
Digital Compressor ZPD61KCE-TFD-522 for Air Conditioning Product description: Scroll™ compressors are designed to deliver the highest performance in residential and commercial applications. Thanks to the widest selection of scroll compressors optimized for air conditioning and heating, it has never ...
13.2KW 5HP Ac Compressor ZPD61KCE-TFD-522
Digital Compressor ZPD61KCE-TFD-522 for Air Conditioning Product description: Scroll Digital compressor increases HVAC system efficiency via capacity modulation and provide energy savings by precisely matching compressor output to your heating or cooling needs. This technology is perfect for ...
12.2A 7HP Air Conditioning Compressor ZPD83KCE-TFD-250
Air Conditioning Digital Compressor ZPD83KCE-TFD-250 for 7 Ton Technical data: Nominal motor power [HP]: 7 Displacement [m³/h]: 13.4 Net Weight [kg]: 45 Gross weight [kg]: 48 Oil charge [dm³]: 1.8 Electrical data: Power supply [V/~/Hz]: 380-420V/3/50Hz Locked rotor current [A]: 74 Max. operating ...
5.5HP Hermetic Digital Compressor ZRD68KC-TFD-433 For Refrigeration
1PH R22 200V Digital Compressor ZRD68KC-TFD-433 for HVAC Description: Scroll Digital ZRDKC Quantum compressor increases HVAC system efficiency via capacity modulation and provide energy savings by precisely matching compressor output to your heating or cooling needs.With the broadest product line ...
