Product Details:
Payment & Shipping Terms:
|
| Piston Type: | Reciprocating | Configuration: | Stationary |
|---|---|---|---|
| Power Source: | AC Power | Lubrication Style: | Lubricated |
| Gas: | R404,R507C,R407,R134A,R22 | Drive Mode: | Electric |
| Weight: | 37KGS | Color: | Blue |
| High Light: | screw type air compressor,copeland refrigeration compressors |
||

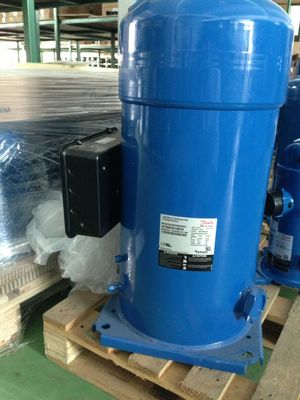

10 HP Maneurop commercial scroll compressor MLZ 076T4LC9
Specification:
1. Model:MLZ 076T4LC9
2. Horse Power:10HP
3. Working Refrigerant: R404,R507C,R407,R134A,R22
4. Application:Medium temperature refrigeration.
| Displacement [m³/h]: | 28,3 | |
| Swept volume [cm³/rev]: | 162,4 | |
| RPM [min-1]: | 2900 | |
| Power [HP]: | 10 | |
| Sound power [dB]: | 74 | |
| Sound power with accoustic hood [dB]: | 66 | |
| Weight [kg]: | 45 | |
| Oil charge [dm³]: | 2,7 | |
| Oil type: | PVE | |
| Maximum system test pressure low side / high side: | 25 / 41 | |
| Maximum number of starts without softstart [1/h]: | 12 | |
| Refrigerant charge limit [dm³]: | 7,2 | |
| Refrigerant: | R404A - R507A - R134a |
| inches | |||
| Suction connection with supplied sleeve: | 1 1/8" | ||
| Discharge connection with supplied sleeve: | 7/8" |
We can supply more Maneurop compressor models as below:
| Model | HP | Swept Volume | Displacement | Sound Power | Net weight | Oil charge | ODF Connection | ||
| (cm3/rev) | (m3/h) | Without Jacket | With Jacket | (kg) | (L) | Suction | Discharge | ||
| MLZ015 | 2 | 31 | 1.1 | 3/4" | 1/2" | ||||
| MLZ019 | 2.5 | 43.5 | 7.6 | 65 | 57 | ||||
| MLZ021 | 3 | 46.2 | 8 | ||||||
| MLZ026 | 3.5 | 57.1 | 9.9 | 67 | 59 | ||||
| MLZ030 | 4 | 68.8 | 12 | 70 | 62 | 37 | 1.6 | 7/8" | |
| MLZ038 | 5 | 81 | 14.1 | 71 | 63 | ||||
| MLZ045 | 6 | 98.6 | 17.2 | ||||||
| MLZ048 | 7 | 107.5 | 18.7 | 72 | 64 | 3/4" | |||
| MLZ058 | 7.5 | 126 | 21.9 | 74 | 66 | 44 | 2.7 | 1-1/8" | 7/8" |
| MLZ066 | 9 | 148.8 | 25.9 | 45 | |||||
| MLZ076 | 10 | 162.4 | 28.3 | ||||||
Technical Features
Production Facility:China
Brand:
Compressor Type:Scroll
Application:HBP (+7,2°C / +54,4°C)
H.Power:10
Power Supply:380V
Refrigerant:R404A
Cooling Capacity: (Watt)28.345
Motor Type:3 PHASE
BOM.:121L8022
Compressor Model:MLZ076T4LC9
Diplacement (cm3/rev):162,43
Frequency (Hz):50-60
Suction Line:1 1/8"
Discharge Line:7/8"
As one of China’s leading exporters in the refrigeration field we have proudly represented the following brands and products for many years.
Names such as : , Bock,Carrier,Copeland, ,Tecumseh,and Sanyo supplying there ultra-reliable products eg compressors, condensing unit, condenser, evaporator ,refrigeration oil, and various kinds of refrigeration valves controls and tools
Our main compressor lines are :
· performer compressors: SM, SZ, SH SERIES
· commercial compressors: FR, SC SERIES
· Copeland compressors: VR, ZR, ZB, ZH SERIES
· Maneurop piston compressors:MT, MTZ NTZ, MPZ SERIES
Also . original valves, controls and selected parts
· TE, TDE, TGE, PHT SERIES TERMOSTATIC EXPANSION VALVES
· ETS SERIES EXPANSION VAVLES,
· EVR SERIES ECPANSION VAVLES AND
· KP1,KP5,KP15 SERIES PRESSURE CONTROLS
· DCL DML LIQUID LINE FILTER DRIERS
Also al l other ….Chinese original (OEM brands) products are quality guarantee:-
Ball valves Hand valves Oil separators Gas liquid separators
Storage bottles Axial fan motors Pressure switches and transmitters
Temperature switches and transmitters Refrigerants
