| Model Number: | ZB95KCE-TFD-651 |
| MOQ: | 1 |
| Price: | 1USD |
| Delivery Time: | 1-7DAYS |
| Payment Terms: | T/T |

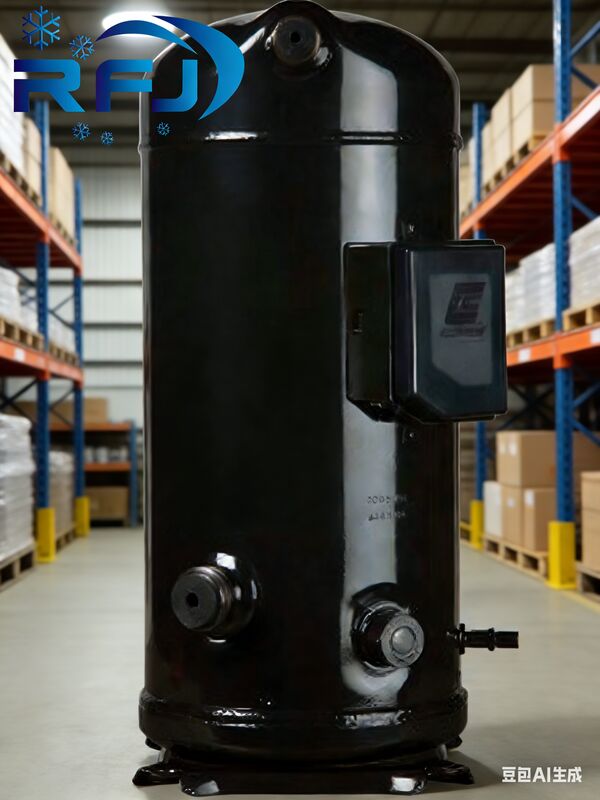

| Type | Hermetic scroll compressors |
| Series | ZB |
| Model | ZB95KCE-TFD-651 |
| Parameter | Value |
|---|---|
| Displacement [m³/h] | 36.4 |
| Sound power [dBA] | 79 |
| Sound power with sound shell [dBA] | 69 |
| Sound pressure level [dB] | 68 |
| Net Weight [kg] | 65 |
| Oil charge [dm³] | 3.3 |
| Maximum high pressure [bar] | 32 |
| Maximum standstill pressure [bar] | 22.6 |
| Minimal lowside temperature [°C] | -35 |
| Maximum lowside temperature [°C] | 50 |
| PED category | 2 |
| Parameter | Value |
|---|---|
| Power supply [V/~/Hz] | 380-420V/3/50Hz |
| Locked rotor current [A] | 140 |
| Max. operating current [A] | 28.2 |
| Winding resistance [Ω] | 1.1 |
| Connection Type | Size |
|---|---|
| Suction Rotolock valve connection | 1 3/4" |
| Discharge Rotolock valve connection | 1 1/4" |
|
|
| Model Number: | ZB95KCE-TFD-651 |
| MOQ: | 1 |
| Price: | 1USD |
| Packaging Details: | wood packaging |
| Payment Terms: | T/T |
| Type | Hermetic scroll compressors |
| Series | ZB |
| Model | ZB95KCE-TFD-651 |
| Parameter | Value |
|---|---|
| Displacement [m³/h] | 36.4 |
| Sound power [dBA] | 79 |
| Sound power with sound shell [dBA] | 69 |
| Sound pressure level [dB] | 68 |
| Net Weight [kg] | 65 |
| Oil charge [dm³] | 3.3 |
| Maximum high pressure [bar] | 32 |
| Maximum standstill pressure [bar] | 22.6 |
| Minimal lowside temperature [°C] | -35 |
| Maximum lowside temperature [°C] | 50 |
| PED category | 2 |
| Parameter | Value |
|---|---|
| Power supply [V/~/Hz] | 380-420V/3/50Hz |
| Locked rotor current [A] | 140 |
| Max. operating current [A] | 28.2 |
| Winding resistance [Ω] | 1.1 |
| Connection Type | Size |
|---|---|
| Suction Rotolock valve connection | 1 3/4" |
| Discharge Rotolock valve connection | 1 1/4" |
