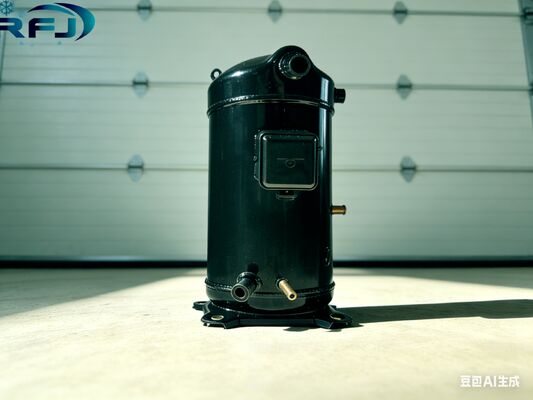

ZSI21KQE-PFS-537 R404a 7HP Refrigeration Scroll Compressor Air Cooling Rotary Type
ac compressor
,a c compressor
ZSI21KQE-PFS-537 R404a refrigerant 7HP scroll compressor designed for industrial refrigeration applications with air cooling rotary technology.
| Model | ZSI21KQE-PFS-537 |
|---|---|
| Power (HP) | 7 |
| Capacity (W) | 58000 |
| Current (A) | 90.5 |
| Weight (kg) | 39.7 |
| Displacement (cc/rev.) | 18.8 |
| Input Power (W) | 5800 |
| MOQ | 1 |
| Year | 2017 |
| HP | Model | cc/Rev. | kW | kW | Phase | Hz | A | KG |
|---|---|---|---|---|---|---|---|---|
| 2 | ZSI06KQ-PFS-527 | 6.1 | 3.7 | 2 | 1phase | 50 | 11.5 | 22.2 |
| 2 | ZIS06KQE-PFS-527 | 6.1 | 3.7 | 2 | 13.6 | 22.2 | ||
| 2.6 | ZSI08KQ-PFS-527 | 7.1 | 4.3 | 2.2 | 13.1 | 22.2 | ||
| 2.6 | ZSI08KQE-PFS-527 | 7.1 | 4.3 | 2.2 | 15.6 | 22.2 | ||
| 3.6 | ZSI11KQ-PFS-527 | 9.95 | 6.3 | 3.2 | 18.4 | 29.9 | ||
| 3.6 | ZSI11KQE-PFS-527 | 9.95 | 6.3 | 3.2 | 19 | 29.9 | ||
| 4.6 | ZSI14KQ-PFS-527 | 12.7 | 8.1 | 4 | 23 | 29.9 | ||
| 4.6 | ZSI14KQE-PFS-527 | 12.7 | 8.1 | 4 | 23.8 | 29.9 |
| HP | Model | cc/Rev. | kW | kW | Phase | Hz | A | KG |
|---|---|---|---|---|---|---|---|---|
| 2 | ZSI06KQ-PFS-527 | 6.1 | 3.7 | 2 | 3PHase | 50 | 5.2 | 22.2 |
| 2 | ZIS06KQE-PFS-527 | 6.1 | 3.7 | 2 | 5.7 | 22.2 | ||
| 2.6 | ZSI08KQ-PFS-527 | 7.1 | 4.3 | 2.2 | 5.6 | 22.2 | ||
| 2.6 | ZSI08KQE-PFS-527 | 7.1 | 4.3 | 2.2 | 6.1 | 22.2 | ||
| 3 | ZSI09KQ-PFS-527 | 8.03 | 4.8 | 2.4 | 6.2 | 22.2 | ||
| 3 | ZSI09KQE-PFS-527 | 8.03 | 4.8 | 2.4 | 6.7 | 22.2 | ||
| 3.6 | ZSI11KQ-PFS-527 | 9.95 | 6.3 | 3.2 | 6.6 | 29.9 | ||
| 3.6 | ZSI11KQE-PFS-527 | 9.95 | 6.3 | 3.2 | 7.5 | 29.9 | ||
| 4.6 | ZSI14KQ-PFS-527 | 12.7 | 8.1 | 4 | 8.2 | 29.9 | ||
| 4.6 | ZSI14KQE-PFS-527 | 12.7 | 8.1 | 4 | 9.2 | 29.9 | ||
| 5 | ZSI15KQ-PFS-527 | 14.4 | 8.7 | 4.6 | 10.1 | 29.9 | ||
| 5 | ZSI15KQE-PFS-527 | 14.4 | 8.7 | 4.6 | 11.9 | 29.9 | ||
| 6 | ZSI18KQ-PFS-537 | 17.1 | 10.6 | 5.5 | 11.2 | 37.4 | ||
| 6 | ZSI18KQE-PFS-537 | 17.1 | 10.6 | 5.5 | 13.2 | 37.4 | ||
| 7 | ZSI21KQ-PFS-537 | 18.8 | 12 | 6.2 | 13.6 | 39.7 | ||
| 7 | ZSI21KQE-PFS-537 | 18.8 | 12 | 6.2 | 14.6 | 39.7 |
All specifications are subject to change. Contact manufacturer for the most current technical data.
