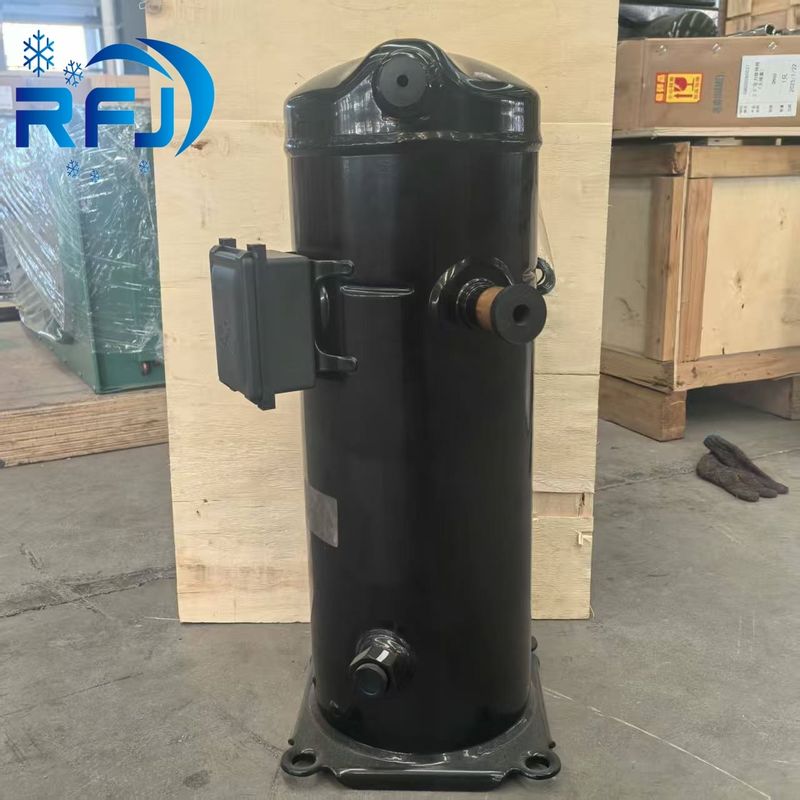

Refrigeration ZR34KC-PFV-522 Scroll Compressor Freezer Cold Room Application

Name: Refrigeration ZR34KC-PFV-522 Scroll Compressor Freezer Cold Room Application
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: ZR34KC-PFV-522
Price: 4,000.00 USD
Availability: InStock

Model Number:	ZR34KC-PFV-522
MOQ:	1
Price:	discussed
Delivery Time:	7-10 working days after receiving payment
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Type:

Compressor

Mode:

ZR34KC-PFV-522

Warranty:

1 Year

Voltage:

208v-230v/60hz

Horse Power(hp):

2.8

Currency A:

14.6

BTU/H:

34300

EER Btu/wh:

11.0

Weight(KG):

28.5

Packaging Details:

Wooden case or 12 units in one pallet

Supply Ability:

5,000pcs per month

Highlight:

ac compressor

a c compressor

Product Description

Refrigeration ZR34KC-PFV-522 Scroll Compressor for Freezer and Cold Room Applications

High-performance ZR34KC-PFV-522 scroll compressor designed specifically for freezer and cold room refrigeration systems.

Product Specifications

Brand Name	compressor
Place of Origin	China
Model	ZR34KC-PFV-522
Phase	1
Voltage	208-203V
Frequency	60Hz
Power (HP)	2.8HP
Capacity Watt	10050
Btu/h	34300
Input Power	3120
COP	3.22
EER Btu/Wh	11.0
Displacement cc/rev.	46.2
Net Weight (kg)	28.5

Key Features

ZR series scroll compressor suitable for air conditioning and refrigeration applications
Refrigerant: R22 | Voltage/Frequency: 220/380V 50/60 Hz
Outstanding reliability with fewer moving parts
Compliance feature offers unprecedented liquid handling capability
Internal motor protection from high temperature and high current
Very low noise and gas pulsation
Five times quieter than piston compressors
Simplified system design
Unique unload start feature requires no start capacitors/relay
High heat pump capacity due to nearly 100% volumetric efficiency
Selection scope ranges from 1HP to 30HP

Technical Data - ZR Series Compressors

ZR Series Models (Part 1)

Model	Horsepower (HP)	Refrigerating Capacity (W)	Input Power (W)	Electricity (A)	Displacement (cc/Rev.)	Oil Capacity (L)	Net Weight (KG)	Locked-Rotor Current (A)	Noise Power
ZR26KM	2.2	6250	1970	9.9	34.6	0.77	19.6	53	63
ZR38KM	2.3	6750	2020	9.2	37.2	0.77	19.4	52.9	63.0
ZR30KM	2.5	7350	2190	10.1	40.5	0.77	19.3	52.9	63.0
ZR32KS	2.7	7900	2410	10.9	44.3	0.74	22.1	66.0	68.0
ZR34KH	2.8	8200	2520	13.6	46.2	1.04	30.4	100.0	66.0
ZR36KH	3.0	8900	2730	13.6	49.5	1.24	30.4	100.0	68.0
ZR39KH	3.3	9850	3000	14.6	54.2	1.24	30.4	114.0	68.0
ZR42K3	3.5	10250	3150	15.2	57.2	1.24	30.4	97.0	68.0
ZR45K3	3.8	11200	3380	16.4	61.1	1.24	32.2	114.0	68.0
ZR47K3	3.9	11550	3460	16.8	63.3	1.24	31.3	114.0	68.0
ZR48K3	4.0	11850	3630	17.6	65.5	1.24	31.3	114.0	68.0
ZR61KC	5.1	14950	4550	21.7	82.6	1.66	42.6	150.0	71.0
ZR68KC	5.7	16700	5130	24.5	93.0	1.83	40.4	150.0	72.0

ZR Series Models (Part 2)

Model	Horsepower (HP)	Refrigerating Capacity (W)	Input Power (W)	Electricity (A)	Displacement (cc/Rev.)	Oil Capacity (L)	Net Weight (KG)	Locked-Rotor Current (A)	Noise Power
ZR28KM	2.3	8250	2450	10.9	37.2	0.77	19.4	61.5	66
ZR28KC	2.3	8500	2620	12.0	39.3	1.12	26.7	73.0	68.0
ZR32K3	2.7	9550	2960	13.6	43.4	1.24	28.7	83.0	71
ZR34KC	2.8	10050	3120	14.6	46.2	1.24	28.5	93.0	71.0
ZR36KC	3.0	10800	3350	15.9	49.5	1.24	27.2	100.0	71.0
ZR42KC	3.5	12300	3820	19.7	57.2	1.24	28.1	127	71.0
ZR45KC	3.8	13500	4140	20.9	61.1	1.24	30.4	131.0	71.0
ZR48KC	4.0	14600	4330	19.5	65.6	1.24	32.2	137.0	71.0
ZR54KC	4.5	16100	4830	21.4	73.2	1.66	43.1	148.0	74.0
ZR57KC	4.8	17000	5040	23.6	77.2	1.66	40.8	148.0	74.0
ZR61KC	5.1	18200	5500	25.4	82.6	1.66	39.5	14.0	74.0
ZR68KC	5.7	20400	6200	28.0	93.0	1.77	40.4	176.0	74.0
