| Model Number: | ZR54KC-PFV-522 |
| MOQ: | 1 |
| Price: | discussed |
| Delivery Time: | 7-10 working days after receiving payment |
| Payment Terms: | T/T |

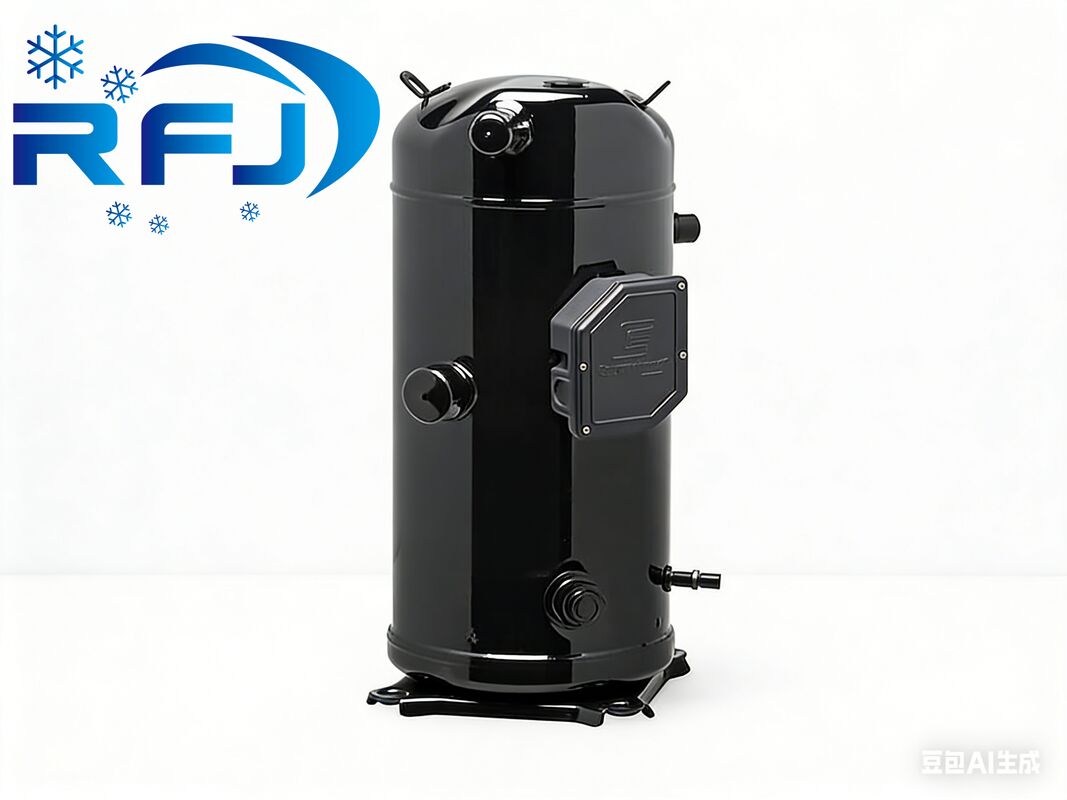

4.5hp ZR54KC-PFV-522 refrigerant R134a scroll compressor designed for reliable air conditioning and refrigeration applications.
| Brand Name | Compressor |
|---|---|
| Place of Origin | China |
| Model | ZR54KC-PFV-522 |
| Phase | 1 |
| Voltage | 208-230v |
| Frequency | 60hz |
| Power (HP) | 4.5hp |
| Capacity Watt | 16100 |
| Btu/h | 55000 |
| Input Power | 4830 |
| COP | 3.34 |
| EER Btu/Wh | 11.4 |
| Displacement cc/rev. | 73.2 |
| Net Weight (kg) | 43.1 |
| Model | Horsepower (HP) | Refrigerating Capacity (W) | Input Power (W) | Electricity (A) | Displacement (cc/Rev.) | Oil Capacity (L) | Net Weight (KG) | Locked-Rotor Current (A) | Noise Power |
|---|---|---|---|---|---|---|---|---|---|
| ZR54KC | 4.5 | 16100 | 4830 | 21.4 | 73.2 | 1.66 | 43.1 | 148.0 | 74.0 |
| ZR26KM | 2.2 | 6250 | 1970 | 9.9 | 34.6 | 0.77 | 19.6 | 53 | 63 |
| ZR38KM | 2.3 | 6750 | 2020 | 9.2 | 37.2 | 0.77 | 19.4 | 52.9 | 63.0 |
| ZR30KM | 2.5 | 7350 | 2190 | 10.1 | 40.5 | 0.77 | 19.3 | 52.9 | 63.0 |
| ZR32KS | 2.7 | 7900 | 2410 | 10.9 | 44.3 | 0.74 | 22.1 | 66.0 | 68.0 |
| ZR34KH | 2.8 | 8200 | 2520 | 13.6 | 46.2 | 1.04 | 30.4 | 100.0 | 66.0 |
| ZR36KH | 3.0 | 8900 | 2730 | 13.6 | 49.5 | 1.24 | 30.4 | 100.0 | 68.0 |
| ZR39KH | 3.3 | 9850 | 3000 | 14.6 | 54.2 | 1.24 | 30.4 | 114.0 | 68.0 |
| ZR42K3 | 3.5 | 10250 | 3150 | 15.2 | 57.2 | 1.24 | 30.4 | 97.0 | 68.0 |
| ZR45K3 | 3.8 | 11200 | 3380 | 16.4 | 61.1 | 1.24 | 32.2 | 114.0 | 68.0 |
| ZR47K3 | 3.9 | 11550 | 3460 | 16.8 | 63.3 | 1.24 | 31.3 | 114.0 | 68.0 |
| ZR48K3 | 4.0 | 11850 | 3630 | 17.6 | 65.5 | 1.24 | 31.3 | 114.0 | 68.0 |
| ZR61KC | 5.1 | 14950 | 4550 | 21.7 | 82.6 | 1.66 | 42.6 | 150.0 | 71.0 |
| ZR68KC | 5.7 | 16700 | 5130 | 24.5 | 93.0 | 1.83 | 40.4 | 150.0 | 72.0 |
|
|
