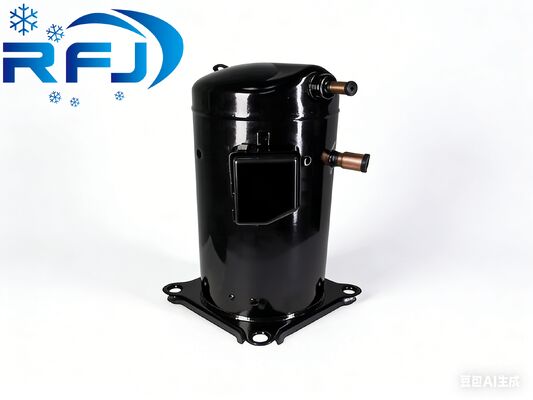

Low Noise Hermetic Scroll Compressor 4.8hp ZR57KC-PFV-522 Simplified System Design

Name: Low Noise Hermetic Scroll Compressor 4.8hp ZR57KC-PFV-522 Simplified System Design
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: ZR57KC-PFV-522
Price: 4,000.00 USD
Availability: InStock

Model Number:	ZR57KC-PFV-522
MOQ:	1
Price:	discussed
Delivery Time:	7-10 working days after receiving payment
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Type:

Compressor

Mode:

ZR57KC-PFV-522

Warranty:

1 Year

Voltage:

208v-230v/60hz

Horse Power(hp):

4.8

Currency A:

23.6

BTU/H:

58000

EER Btu/wh:

11.5

Weight(kg):

40.8

Packaging Details:

Wooden case or 12 units in one pallet

Supply Ability:

5,000pcs per month

Highlight:

a c compressor

commercial refrigeration compressor

Product Description

Low Noise Hermetic Scroll Compressor 4.8hp ZR57KC-PFV-522 Simplified System Design

Refrigeration Compressors scroll type 4.8hp hermetic compressor ZR57KC-PFV-522

Product Specifications

Brand name	compressor
Place of origin	China
Model	ZR57KC-PFV-522
Phase	1
Voltage	208-203v
Frequency	60hz
Power (hp)	4.8hp
Capacity Watt	17000
Btu/h	58000
Input power	5040
COP	3.37
EER Btu/Wh	11.5
Displacement cc/rev.	77.2
N.W. (kg)	40.8

Features

ZR series scroll compressor can be used for air conditioning and refrigeration
Refrigerant: R22 Volt/HZ: 220/380v 50/60 Hz
Outstanding reliability
Fewer moving parts
Compliance feature offers unprecedented liquid handling capability
Internal motor protection from high temperature and high current
Very low noise/gas pulsation
Five decibels quieter than piston compressor
Simplified system design
Unique unload start feature requires no start capacitors/relay
High heat pump capacity due to nearly 100% volumetric efficiency
Selection scope ranges from 1HP to 30HP, and is expanding

Technical Data - Model Series 1

Model	Horsepower (HP)	Refrigerating Capacity (W)	Input Power (W)	Electricity (A)	Displacement (cc/Rev.)	Oil Capacity (L)	Net Weight (KG)	Locked-Rotor Current (A)	Noise Power
ZR26KM	2.2	6250	1970	9.9	34.6	0.77	19.6	53	63
ZR38KM	2.3	6750	2020	9.2	37.2	0.77	19.4	52.9	63.0
ZR30KM	2.5	7350	2190	10.1	40.5	0.77	19.3	52.9	63.0
ZR32KS	2.7	7900	2410	10.9	44.3	0.74	22.1	66.0	68.0
ZR34KH	2.8	8200	2520	13.6	46.2	1.04	30.4	100.0	66.0
ZR36KH	3.0	8900	2730	13.6	49.5	1.24	30.4	100.0	68.0
ZR39KH	3.3	9850	3000	14.6	54.2	1.24	30.4	114.0	68.0
ZR42K3	3.5	10250	3150	15.2	57.2	1.24	30.4	97.0	68.0
ZR45K3	3.8	11200	3380	16.4	61.1	1.24	32.2	114.0	68.0
ZR47K3	3.9	11550	3460	16.8	63.3	1.24	31.3	114.0	68.0
ZR48K3	4.0	11850	3630	17.6	65.5	1.24	31.3	114.0	68.0
ZR61KC	5.1	14950	4550	21.7	82.6	1.66	42.6	150.0	71.0
ZR68KC	5.7	16700	5130	24.5	93.0	1.83	40.4	150.0	72.0

Technical Data - Model Series 2

Model	Horsepower (HP)	Refrigerating Capacity (W)	Input Power (W)	Electricity (A)	Displacement (cc/Rev.)	Oil Capacity (L)	Net Weight (KG)	Locked-Rotor Current (A)	Noise Power
ZR28KM	2.3	8250	2450	10.9	37.2	0.77	19.4	61.5	66
ZR28KC	2.3	8500	2620	12.0	39.3	1.12	26.7	73.0	68.0
ZR32K3	2.7	9550	2960	13.6	43.4	1.24	28.7	83.0	71
ZR34KC	2.8	10050	3120	14.6	46.2	1.24	28.5	93.0	71.0
ZR36KC	3.0	10800	3350	15.9	49.5	1.24	27.2	100.0	71.0
ZR42KC	3.5	12300	3820	19.7	57.2	1.24	28.1	127	71.0
ZR45KC	3.8	13500	4140	20.9	61.1	1.24	30.4	131.0	71.0
ZR48KC	4.0	14600	4330	19.5	65.6	1.24	32.2	137.0	71.0
ZR54KC	4.5	16100	4830	21.4	73.2	1.66	43.1	148.0	74.0
ZR57KC	4.8	17000	5040	23.6	77.2	1.66	40.8	148.0	74.0
ZR61KC	5.1	18200	5500	25.4	82.6	1.66	39.5	14.0	74.0
ZR68KC	5.7	20400	6200	28.0	93.0	1.77	40.4	176.0	74.0
