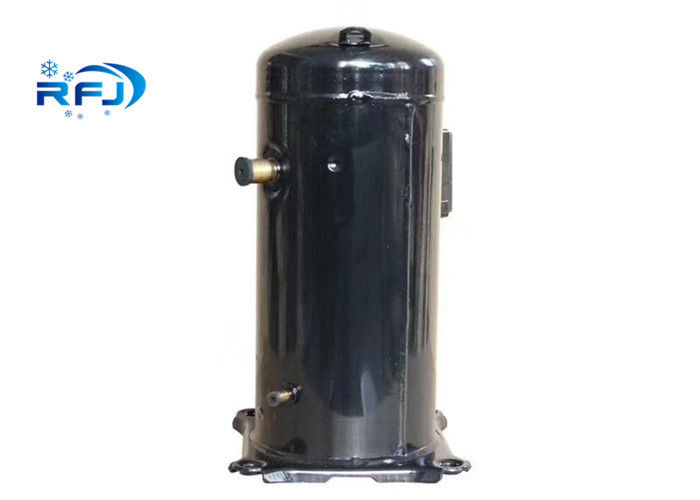

Miniature Refrigeration Scroll Compressor VR50KS-TFP-522 With 1 Year Warranty
ac compressor
,commercial refrigeration compressor
| Brand Name | Compressor |
|---|---|
| Place of Origin | China |
| Model | VR50KS-TFP-522 |
| Phase | 1 |
| Voltage | 380V |
| Frequency | 50Hz |
| Power (HP) | 4.2 HP |
| Capacity | 12,300 W |
| Btu/h | 42,000 |
| Input Power | 3,620 W |
| COP | 3.4 |
| EER Btu/Wh | 11.6 |
| Displacement cc/rev. | 67.4 |
| Net Weight (kg) | 30.0 |
- Outstanding reliability with fewer moving parts
- Compliance feature offers unprecedented liquid handling capability
- Internal motor protection from high temperature and high current
- Very low noise and gas pulsation operation
- Five times quieter than piston compressors
- Simplified system design
- Unique unload start feature requires no start capacitors/relay
- High heat pump capacity due to nearly 100% volumetric efficiency
- Selection scope ranges from 1HP to 30HP
- Compatible with R22 refrigerant
- Voltage/Frequency: 220/380V 50/60 Hz
| Model | Horsepower (HP) | Refrigerating Capacity (W) | Input Power (W) | Electricity (A) | Displacement (cc/Rev.) | Oil Capacity (L) | Net Weight (KG) | Locked-Rotor Current (A) | Noise Power |
|---|---|---|---|---|---|---|---|---|---|
| VR30KM | 2.5 | 7,400 | 2,210 | 4.5 | 40.5 | 0.77 | 19.6 | 35.0 | 63.0 |
| VR32KS | 2.7 | 7,900 | 2,410 | 4.3 | 44.3 | 0.74 | 22.1 | 34.0 | 68.0 |
| VR34KF | 2.8 | 8,300 | 2,560 | 4.5 | 46.2 | 0.74 | 22.1 | 34.0 | 68.0 |
| VR48KS | 4.0 | 11,867 | 2,800 | 6.1 | 65.6 | 1.36 | 30.0 | 50.0 | 68.0 |
| VR50KS | 4.2 | 12,300 | 3,620 | 6.7 | 67.4 | 1.36 | 30.0 | 59.0 | 68.0 |
| VR52KS | 4.3 | 12,800 | 3,770 | 7.0 | 70.4 | 1.48 | 30.0 | 59.0 | 69.0 |
| VR52KM | 4.3 | 13,068 | 3,750 | 7.1 | 70.4 | 1.48 | 30.4 | 58.0 | 69.0 |
| VR54KS | 4.5 | 13,200 | 3,920 | 7.4 | 73.1 | 1.48 | 30.0 | 58.0 | 69.0 |
| VR54KM | 4.5 | 13,566 | 3,890 | 7.2 | 73.0 | 1.48 | 30.4 | 58.0 | 69.0 |
