| Model Number: | VR52KM-TFP-522 |
| MOQ: | 1 |
| Price: | discussed |
| Delivery Time: | 7-10 working days after receiving payment |
| Payment Terms: | T/T |

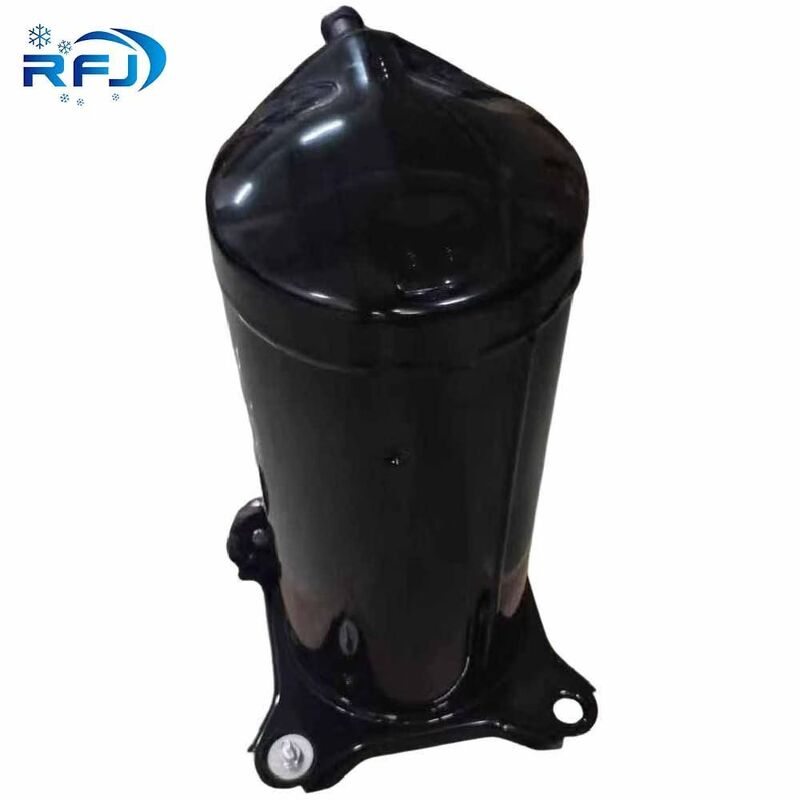

Scroll Compressor for commercial air conditioner VR52KM-TFP
| Brand name | compressor |
|---|---|
| Place of origin | China |
| Model | VR52KM-TFP-522 |
| Phase | 1 |
| Voltage | 380v |
| Frequency | 50hz |
| Power (hp) | 4.3hp |
| Capacity Watt | 13068 |
| Btu/h | 44600 |
| Input power | 3750 |
| COP | 3.49 |
| EER Btu/Wh | 11.9 |
| Displacement cc/rev. | 70.4 |
| N.W. (kg) | 30.4 |
| Model | Horsepower (HP) | Refrigerating Capacity (W) | Input Power (W) | Electricity (A) | Displacement (cc/Rev.) | Oil Capacity (L) | Net Weight (KG) | Locked-Rotor Current (A) | Noise Power |
|---|---|---|---|---|---|---|---|---|---|
| VR30KM | 2.5 | 7400 | 2210 | 4.5 | 40.5 | 0.77 | 19.6 | 35.0 | 63.0 |
| VR32KS | 2.7 | 7900 | 2410 | 4.3 | 44.3 | 0.74 | 22.1 | 34.0 | 68.0 |
| VR34KF | 2.8 | 8300 | 2560 | 4.5 | 46.2 | 0.74 | 22.1 | 34.0 | 68.0 |
| VR48KS | 4.0 | 11867 | 2800 | 6.1 | 65.6 | 1.36 | 30.0 | 50.0 | 68.0 |
| VR50KS | 4.2 | 12300 | 3620 | 6.7 | 67.4 | 1.36 | 30.0 | 59.0 | 68.0 |
| VR52KS | 4.3 | 12800 | 3770 | 7.0 | 70.4 | 1.48 | 30.0 | 59.0 | 69.0 |
| VR52KM | 4.3 | 13068 | 3750 | 7.1 | 70.4 | 1.48 | 30.4 | 58.0 | 69.0 |
| VR54KS | 4.5 | 13200 | 3920 | 7.4 | 73.1 | 1.48 | 30.0 | 58.0 | 69.0 |
| VR54KM | 4.5 | 13566 | 3890 | 7.2 | 73.0 | 1.48 | 30.4 | 58.0 | 69.0 |
| VR57KF | 4.8 | 13900 | 4320 | 9.1 | 77.2 | 1.36 | 30.0 | 58.7 | 69.0 |
| VR57KS | 4.8 | 13900 | 4130 | 7.8 | 77.2 | 1.36 | 28.6 | 58.0 | 69.0 |
| VR61KF | 5.1 | 14900 | 4470 | 8.3 | 82.7 | 1.36 | 30.0 | 58.0 | 69.0 |
| VR84KS | 7.0 | 20800 | 6000 | 11.9 | 113.6 | 2.51 | 57.2 | 90.0 | 73.0 |
| VR94KS | 7.8 | 23300 | 6750 | 12.5 | 127.2 | 2.51 | 57.2 | 86.0 | 73.0 |
| VR108KS | 9.0 | 26400 | 7550 | 13.7 | 142.9 | 3.25 | 59.9 | 100.0 | 74.0 |
| VR125KS | 10.4 | 31000 | 9000 | 15.8 | 167.2 | 3.25 | 61.2 | 110.0 | 75.0 |
| VR125KF | 10.4 | 31100 | 9140 | 16.7 | 167.2 | 3.25 | 61.2 | 153.0 | 75.0 |
| VR144KS | 12.0 | 35000 | 10100 | 17.6 | 190.9 | 3.25 | 61.2 | 110.0 | 76.0 |
| VR144KF | 12.0 | 35200 | 10250 | 18.5 | 190.9 | 3.25 | 61.2 | 153.0 | 76.0 |
| VR160KS | 13.3 | 38200 | 11300 | 20.2 | 209.3 | 3.25 | 64.9 | 133.0 | 79.0 |
| VR190KS | 15.8 | 45600 | 13600 | 25.6 | 249.3 | 3.25 | 66.2 | 168.0 | 82.0 |
|
|
