| Color: | Black | Refrigerant: | R404a/ R507 |
|---|---|---|---|
| Brand: | Copeland | Horse Power: | 5HP |
| Power Source: | AC Power | Phase: | 3 |
| Configuration: | Stationary | Voltage: | 380V/ 420V |
| High Light: | copeland ac compressor,commercial refrigeration compressor |
||

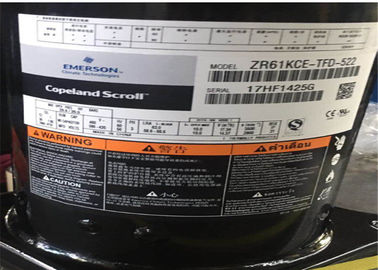

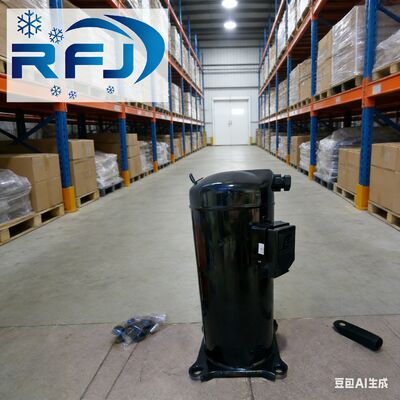

ZR Series Copeland Scroll Compressor ZR61KCE-TFD-522
Product description:
1. Copeland scroll compressor model: 2HP-30HP
2. Copeland scroll compressor has high processing precision requirements, but has many advantages, small size, light weight, high efficiency, low vibration and high reliability.
3. Copeland scroll compressors will largely replace traditional piston compressors, which have been widely used in developed countries.
| Brand name | copeland compressor |
| Place of origin | USA |
| Model | ZR61KCE-TFD-522 |
| Phase | 3 |
| Voltage | 380-420v |
| Frequency | 50hz |
| Power(hp) | 5.0hp |
| Displacement | 14.4m³/h |
| Oil charge | 1.9L |
| Ner weight | 38kg |
| Gross weight | 41kg |
Techical Datas:
| model |
Horsepower (HP) |
refrigerating capacity(W) |
input power (W) |
electricity (A) |
displacement (cc/Rev.) |
displacement Oil capacity(L) |
Net weight(KG) | locked-rotor current(A) | Noise power |
| ZR26KM | 2.2 | 6250 | 1970 | 9.9 | 34.6 | 0.77 | 19.6 | 53 | 63 |
| ZR38KM | 2.3 | 6750 | 2020 | 9.2 | 37.2 | 0.77 | 19.4 | 52.9 | 63.0 |
| ZR30KM | 2.5 | 7350 | 2190 | 10.1 | 40.5 | 0.77 | 19.3 | 52.9 | 63.0 |
| ZR32KS | 2.7 | 7900 | 2410 | 10.9 | 44.3 | 0.74 | 22.1 | 66.0 | 68.0 |
| ZR34KH | 2.8 | 8200 | 2520 | 13.6 | 46.2 | 1.04 | 30.4 | 100.0 | 66.0 |
| ZR36KH | 3.0 | 8900 | 2730 | 13.6 | 49.5 | 1.24 | 30.4 | 100.0 | 68.0 |
| ZR39KH | 3.3 | 9850 | 3000 | 14.6 | 54.2 | 1.24 | 30.4 | 114.0 | 68.0 |
| ZR42K3 | 3.5 | 10250 | 3150 | 15.2 | 57.2 | 1.24 | 30.4 | 97.0 | 68.0 |
| ZR45K3 | 3.8 | 11200 | 3380 | 16.4 | 61.1 | 1.24 | 32.2 | 114.0 | 68.0 |
| ZR47K3 | 3.9 | 11550 | 3460 | 16.8 | 63.3 | 1.24 | 31.3 | 114.0 | 68.0 |
| ZR48K3 | 4.0 | 11850 | 3630 | 17.6 | 65.5 | 1.24 | 31.3 | 114.0 | 68.0 |
| ZR61KC | 5.1 | 14950 | 4550 | 21.7 | 82.6 | 1.66 | 42.6 | 150.0 | 71.0 |
Techical Datas:
| model |
Horsepower (HP) |
refrigerating capacity(W) |
input power (W) |
electricity (A) |
displacement (cc/Rev.) |
displacement Oil capacity(L) |
Net weight(KG) | locked-rotor current(A) | Noise power |
| ZR34KC | 2.8 | 10050 | 3120 | 14.6 | 46.2 | 1.24 | 28.5 | 93.0 | 71.0 |
| ZR36KC | 3.0 | 10800 | 3350 | 15.9 | 49.5 | 1.24 | 27.2 | 100.0 | 71.0 |
| ZR42KC | 3.5 | 12300 | 3820 | 19.7 | 57.2 | 1.24 | 28.1 | 127 | 71.0 |
| ZR45KC | 3.8 | 13500 | 4140 | 20.9 | 61.1 | 1.24 | 30.4 | 131.0 | 71.0 |
| ZR48KC | 4.0 | 14600 | 4330 | 19.5 | 65.6 | 1.24 | 32.2 | 137.0 | 71.0 |
| ZR54KC | 4.5 | 16100 | 4830 | 21.4 | 73.2 | 1.66 | 43.1 | 148.0 | 74.0 |
| ZR57KC | 4.8 | 17000 | 5040 | 23.6 | 77.2 | 1.66 | 40.8 | 148.0 | 74.0 |
| ZR61KC | 5.1 | 18200 | 5500 | 25.4 | 82.6 | 1.66 | 39.5 | 14.0 | 74.0 |
| ZR68KC | 5.7 | 20400 | 6200 | 28.0 | 93.0 | 1.77 | 40.4 | 176.0 | 74.0 |
