8HP Brand New Piston Compressor Semi Hermetic Reciprocating 4TES-8Y-40P/4TCS-8.2Y-40P

Name: 8HP Brand New Piston Compressor Semi Hermetic Reciprocating 4TES-8Y-40P/4TCS-8.2Y-40P
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: 4TES-8Y-40P,4TCS-8.2Y-40P
Price: 1,150.00 USD
Availability: InStock

Model Number:	4TES-8Y-40P,4TCS-8.2Y-40P
MOQ:	1 piece
Price:	US$(800-1500)/PC
Delivery Time:	5-7 Days
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Type:

Refrigeration Compressor

Application:

Refrigeration Parts

Certification:

ROHS, CE

Power:

8 HP

Cylinder:

Weight:

134 KG

Refrigerant:

R404 R407C R134A

Color:

Green

Warranty:

1 Year

Power Source:

AC POWER

Packaging Details:

Standard Wooden Package

Supply Ability:

10000Pieces/Year

Highlight:

semi hermetic reciprocating compressor

air cooled condensing unit

Product Description

8HP Brand New Piston Compressor Semi Hermetic Reciprocating 4TES-8Y-40P/4TCS-8.2Y-40P

Product Overview

8HP Factory Price Refrigeration Brand New Compressor 4TES-8Y-40P/4TCS-8.2Y-40P

Product Introduction

The ECOLINE 4TES-8Y is the creative advancement of the proven, robust and powerful semi-hermetic reciprocating compressor 4TCS-8.2Y.

It combines high efficiency, smooth running, a wide range of applications, flexibility in refrigerant selection, solid design and high reliability.

The ECOLINE 4TES-8Y replaces its predecessor 4TCS-8.2Y with the same connection sizes.

Product Specifications

Compressor Series Technical Data

Model	Displacement @1450r/min	Cylinders	Oil charge	Weight	Discharge line	Suction line
2KES-05Y	4.06 m³/h	2	1 D/m³	43 Kg	12 mm (1/2")	16 mm (5/8")
2JES-07Y	5.21 m³/h	2	1 D/m³	43 Kg	12 mm (1/2")	16 mm (5/8")
2HES-1Y	6.51 m³/h	2	1 D/m³	44 Kg	12 mm (1/2")	16 mm (5/8")
2HES-2Y	6.51 m³/h	2	1 D/m³	45 Kg	12 mm (1/2")	16 mm (5/8")
2GES-2Y	7.58 m³/h	2	1 D/m³	45 Kg	12 mm (1/2")	16 mm (5/8")
2FES-2Y	9.54 m³/h	2	1 D/m³	45 Kg	12 mm (1/2")	16 mm (5/8")
2FES-3Y	9.54 m³/h	2	1 D/m³	47 Kg	12 mm (1/2")	16 mm (5/8")
4FES-3Y	18.1 m³/h	4	2 D/m³	82 Kg	16 mm (5/8")	22 mm (7/8")
4FES-5Y	18.1 m³/h	4	2 D/m³	86 Kg	16 mm (5/8")	22 mm (7/8")
4EES-4Y	22.7 m³/h	4	2 D/m³	84 Kg	16 mm (5/8")	28 mm (1 1/8")
4EES-6Y	22.7 m³/h	4	2 D/m³	86 Kg	16 mm (5/8")	28 mm (1 1/8")
4DES-5Y	26.8 m³/h	4	2 D/m³	86 Kg	22 mm (7/8")	28 mm (1 1/8")
4DES-7Y	26.8 m³/h	4	2 D/m³	89 Kg	22 mm (7/8")	28 mm (1 1/8")
4CES-6Y	32.5 m³/h	4	2 D/m³	91 Kg	22 mm (7/8")	28 mm (1 1/8")
4CES-9Y	32.5 m³/h	4	2 D/m³	91 Kg	22 mm (7/8")	28 mm (1 1/8")
4VES-6Y	34.7 m³/h	4	2.6 D/m³	129 Kg	22 mm (7/8")	28 mm (1 1/8")
4VES-7Y	34.7 m³/h	4	2.6 D/m³	129 Kg	22 mm (7/8")	28 mm (1 1/8")
4VES-10Y	34.7 m³/h	4	2.6 D/m³	139 Kg	22 mm (7/8")	28 mm (1 1/8")
4TES-8Y	41.3 m³/h	4	2.6 D/m³	134 Kg	28 mm (1 1/8")	35 mm (1 3/8")
4TES-9Y	41.3 m³/h	4	2.6 D/m³	134 Kg	28 mm (1 1/8")	35 mm (1 3/8")
4TES-12Y	41.3 m³/h	4	2.6 D/m³	414 Kg	28 mm (1 1/8")	35 mm (1 3/8")
4PES-10Y	48.5 m³/h	4	2.6 D/m³	139 Kg	28 mm (1 1/8")	35 mm (1 3/8")
4PES-12Y	48.5 m³/h	4	2.6 D/m³	139 Kg	28 mm (1 1/8")	35 mm (1 3/8")
4PES-15Y	48.5 m³/h	4	2.6 D/m³	147 Kg	28 mm (1 1/8")	42 mm (1 5/8")
4NES-12Y	56.2 m³/h	4	2.6 D/m³	141 Kg	28 mm (1 1/8")	35 mm (1 3/8")
4NES-14Y	56.2 m³/h	4	2.6 D/m³	141 Kg	28 mm (1 1/8")	35 mm (1 3/8")

4TES-8Y Specific Technical Data

Parameter	SI Units	Imperial Units
Displacement (1450 RPM 50 HZ)	41.3 m³/h	CFH
Displacement (1750 RPM 60 HZ)	41.3 m³/h	CFH
No. of cylinder * bore * stroke	446mm39.3mm	41.63inch1.55inch
Weight	134 kg	275lb
Max pressure (LP/HP)	19/32 bar	psi
Connection suction line	35mm-1 3/8"	28mm-1 3/8"
Connection discharge line	28mm-11/8"	28mm-1 1/8"
Motor version	3	3
Starting current (Rotor locked)	54.1A	54.1A
Motor voltage (more on request)	380-420V Y-3-50 HZ	440-480V Y-3-60 HZ UL
Max operating current	12.1 A	12.1A

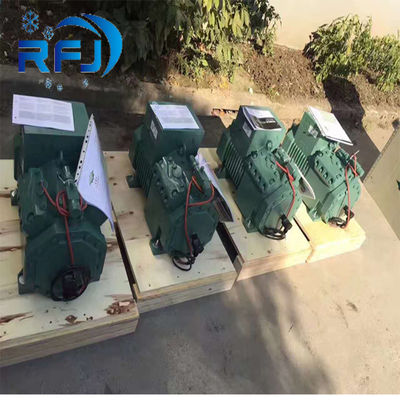

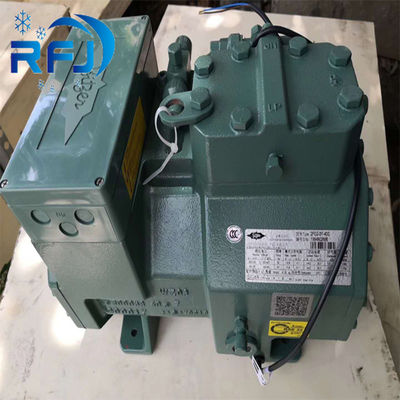

Product Images
