| Model Number: | 4CES-6Y-40S,4CC-6.2Y-40S |
| MOQ: | 1 piece |
| Price: | US$(600-1500)/PC |
| Delivery Time: | 5-7 Days |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Parameter | SI Units | IP Units |
|---|---|---|
| Displacement (1450 RPM 50 HZ) | 32.5 m³/h | CFH |
| Displacement (1750 RPM 60 HZ) | 32.5 m³/h | CFH |
| No. of cylinder × bore × stroke | 4 × 46mm × 39.3mm | 4 × 1.63inch × 1.55inch |
| Weight | 91 kg | 210 lb |
| Max pressure (LP/HP) | 19/32 bar | psi |
| Connection suction line | 28mm-1 1/8" | 28mm-1 1/8" |
| Connection discharge line | 22mm-7/8" | 22mm-7/8" |
| Motor version | 2 | 2 |
| Starting current (Rotor locked) | 30.8A | 30.8A |
| Motor voltage | 380-420V Y-3-50 HZ | 440-480V Y-3-60 HZ UL |
| Max operating current | 17.7 A | 17.7 A |
|
|
| Model Number: | 4CES-6Y-40S,4CC-6.2Y-40S |
| MOQ: | 1 piece |
| Price: | US$(600-1500)/PC |

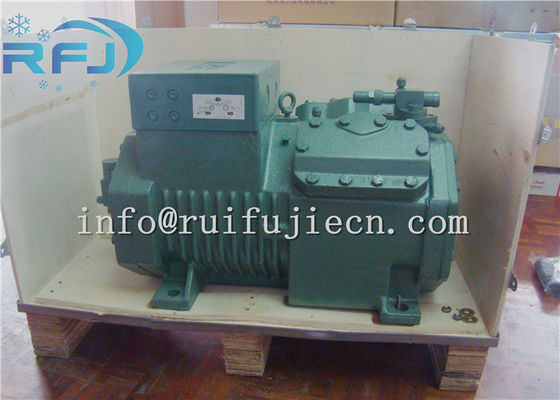

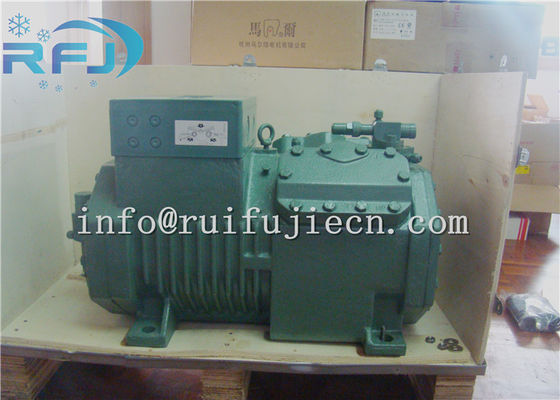

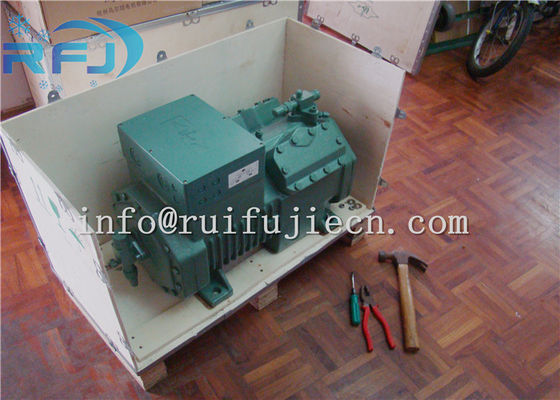

| Packaging Details: | Standard Wooden Package |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Parameter | SI Units | IP Units |
|---|---|---|
| Displacement (1450 RPM 50 HZ) | 32.5 m³/h | CFH |
| Displacement (1750 RPM 60 HZ) | 32.5 m³/h | CFH |
| No. of cylinder × bore × stroke | 4 × 46mm × 39.3mm | 4 × 1.63inch × 1.55inch |
| Weight | 91 kg | 210 lb |
| Max pressure (LP/HP) | 19/32 bar | psi |
| Connection suction line | 28mm-1 1/8" | 28mm-1 1/8" |
| Connection discharge line | 22mm-7/8" | 22mm-7/8" |
| Motor version | 2 | 2 |
| Starting current (Rotor locked) | 30.8A | 30.8A |
| Motor voltage | 380-420V Y-3-50 HZ | 440-480V Y-3-60 HZ UL |
| Max operating current | 17.7 A | 17.7 A |
