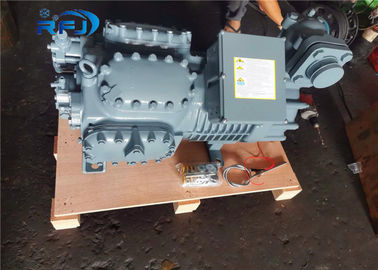

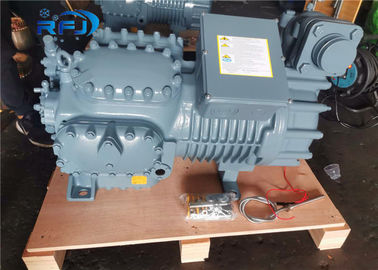

50 HP Copeland Semi Hermetic Compressor D8DH-5000-AWMD for Refrigeration Chiller R404
Speciafication:
Application: HVAC Parts
Cylinder count: 8
Displacement: 151m3/h
Net Weight: 351.0kg
Power supply: 380-420V/3/50Hz
Max. operating current: 91A
Locked rotor current: 144A
Discharge line:1 5/8''
Suction line:2 5/8"
| Compressor model |
D8DH-5000-AWM/D |
| Application |
HVAC |
| Horse Power |
60HP |
| Net weight |
351kg |
| Gross weight |
400kg
|
Series features
57 two, four, six or eight cylinder models in series
displacement from 16,8 m³/h to 181 m³/h
cooling capacity (tc=45 ºC):
1) from 1,26 kW to 31,95 kW for R22 (te=-30 ºC)
2) from 5,62 kW to 71,35 kW for R22 (te=-15 ºC)
3) from 2,14 kW to 37,47 kW for R404A/R507 (te=-30 ºC)
4) from 6,07 kW to 73,67 kW for R404A/R507 (te=-15 ºC)
5) from 4,52 kW to 40,85 kW for R134a (te=-15 ºC)
motor power from 4 KM to 60 KM
lubrication with oil pump (all refrigerants)
Standard equipment
oil pump
oil sight glass
Rotalock valves
thermal protections
Optional equipment
additional header cooling
oil pressure switch
crankcase heater
unload starting
capacity control
Application
high, medium and low temperatures
(R22 from 12,5 ºC to -50 ºC)
(R404A/R507 from 7 ºC to -50 ºC)
(R134a from 12,5 ºC to -20 ºC)
(R407A from 7 ºC to -45 ºC)
