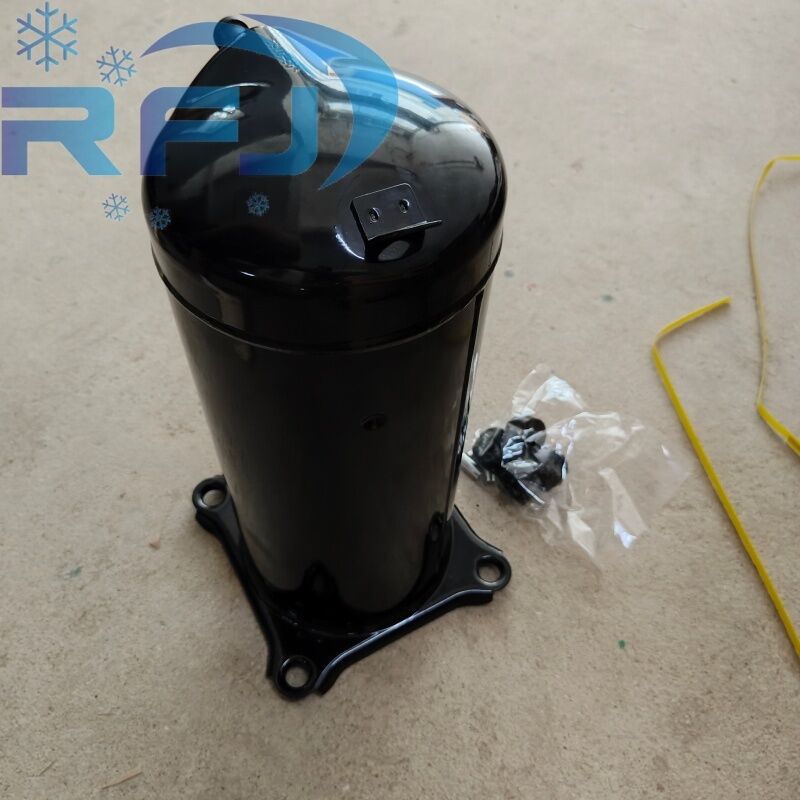

New Condition ZP24KSE-TFM-522 R410a Scroll Compressor
11.5kw air compressor
,r404a hermetic compressor
Models: ZP16KSE, ZP24KSE, ZP29KSE, ZP31KSE, ZP36KSE
Refrigerant: R410A
Features: Low price & Original quality
| Type | Hermetic scroll compressors |
| Series | ZP |
| Model | ZP24KSE-PFZ |
| Displacement | 4.0 m³/h |
| Sound power | 66 dBA |
| Sound pressure level | 55 dB |
| Net Weight | 21.9 kg |
| Oil charge | 0.7 dm³ |
| Maximum high pressure | 43 bar |
| Maximum standstill pressure | 28.0 bar |
| Maximum lowside temperature | 50 °C |
| PED category | 1 |
| Power supply | 220-240V/1/50Hz |
| Locked rotor current | 60.0 A |
| Max. operating current | 12.8 A |
| Winding resistance | 1.3 Ω |
| Start winding resistance | 2.6 Ω |
- 25 models in series
- Displacement from 2.6 m³/h to 60.8 m³/h
- Cooling capacity from 3.2 kW to 82.4 kW (for te=5ºC, tc=50ºC, R410A)
- Available with motors on 50 Hz and 60 Hz
- Lubrication with ester oil
- Screwed sight glass
- Rotalock connections
- Schraeder connection
- Assembly washer
- Discharge temperature control
- External crankcase heater (70W)
Refrigerant: R410A
