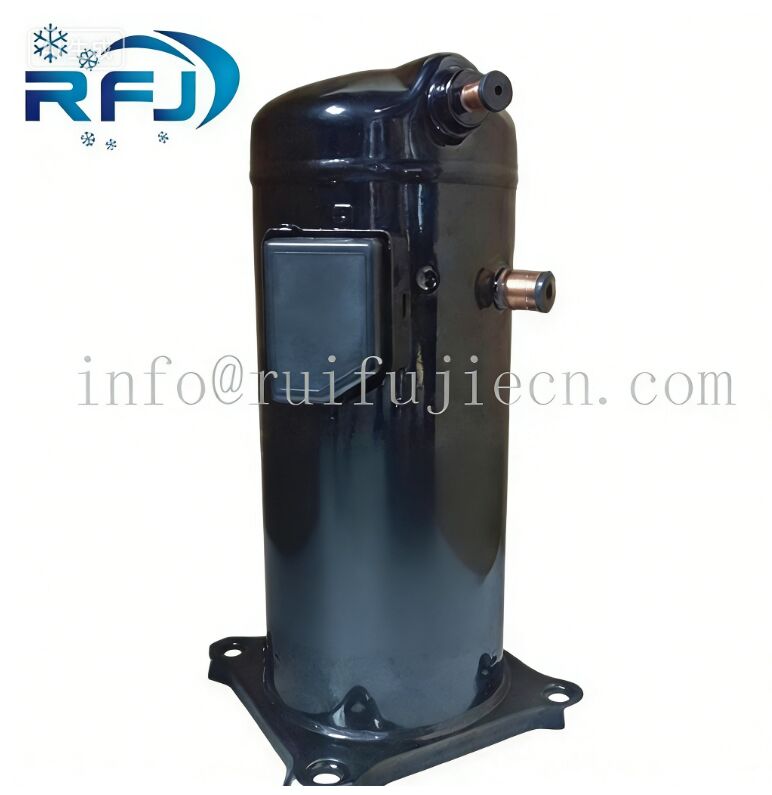

ZP42KSE-TFM-522 ZP Series 50Hz Emerson Air Conditioner Compressor
50hz freezer compressor
,r404a ac compressor
- Models: ZP16KSE, ZP24KSE, ZP29KSE, ZP31KSE, ZP36KSE
- Uses R410A refrigerant
- Competitive pricing with original quality
| Type | Hermetic scroll compressors |
| Series | ZP |
| Model | ZP42KSE-TFM-522 |
| Parameter | Value |
|---|---|
| Displacement [m³/h] | 6,9 |
| Sound power [dBA] | 68 |
| Sound pressure level [dB] | 57 |
| Net Weight [kg] | 31,0 |
| Oil charge [dm³] | 1,3 |
| Maximum high pressure [bar] | 43 |
| Maximum standstill pressure [bar] | 28,0 |
| Maximum lowside temperature [°C] | 50 |
| PED category | 1 |
| Parameter | Value |
|---|---|
| Power supply [V/~/Hz] | 380-420V/3/50Hz |
| Locked rotor current [A] | 43,0 |
| Max. operating current [A] | 8,0 |
| Connection Type | Size (inches) |
|---|---|
| Suction connection with supplied sleeve | 7/8" |
| Discharge connection with supplied sleeve | 1/2" |
- 25 models in series
- Displacement from 2,6 m³/h to 60,8 m³/h
- Cooling capacity from 3,2 kW to 82,4 kW (for te=5ºC, tc=50ºC, R410A)
- Available with motors on 50 Hz and 60 Hz
- Lubrication with ester oil
- Screwed sight glass
- Rotalock connections
- Schraeder connection
- Assembly washer
- Discharge temperature control
- External crankcase heater (70W)
- Medium temperatures (from 7 ºC to -30 ºC)
- Refrigerant R410A
