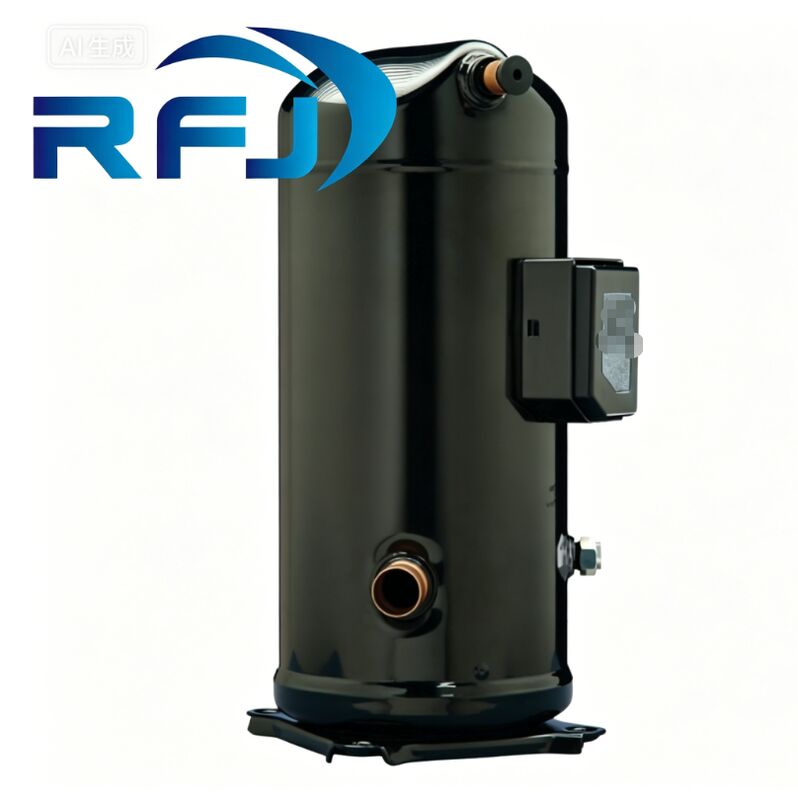

Welding Connection ZP182KCE-TFD-425 15HP Scroll Compressor
r404a scroll compressor
,15hp air compressor
Hermetic Scroll Compressor ZP Series
1,ZP90KCE,ZP103KCE,ZP120KCE,ZP137KCE,ZP154KCE
2,Use R410A
3,Low price &Original
Model: ZP182KCE-TFD
Technical data
| Displacement [m³/h]: | 29,1 | |
| Sound power [dBA]: | 77 | |
| Sound pressure level [dB]: | 66 | |
| Net Weight [kg]: | 66,0 | |
| Gross Weight [kg]: | 77 | |
| Oil charge [dm³]: | 3,3 | |
| Maximum high pressure [bar]: | 45 | |
| Maximum standstill pressure [bar]: | 29,5 | |
| Minimal lowside temperature [°C]: | -35 | |
| Maximum lowside temperature [°C]: | 50 | |
| PED category: | 2 |
Electrical data
| Power supply [V/~/Hz]: | 380-420V/3/50Hz | |
| Locked rotor current [A]: | 174,0 | |
| Max. operating current [A]: | 34,0 | |
| Winding resistance [Ω]: | 0,9 |
Connections
| inches | |||
| Suction connection with supplied sleeve: | 1 3/8" | ||
| Discharge connection with supplied sleeve: | 7/8" |
- screwed sight glass
- Rotalock connections
- Schraeder connection
- assembly washer
- discharge temperature control
Optional equipment
- external crankcase heater (70W)
Application
- medium temperatures (from 7 ºC to -30 ºC)
- refrigerant R410A
compresor scroll ZP485KCE-TWD-522 thermally protected compressor with r410a
| brand | |
| model | ZP485kce |
| horse power | 40 |
| N.W(kg) | 190 |
| power source | AC |
| MODEL SERIES | zp |
| power supply | 380/420-3-50 |
| stub suction (inch) | 1 5/8 |
| stub discharge (inch) | 1 3/8 |
| MOQ | 1 |
| refrigerant | r410a |
| oil charge(L) | 6.3 |
