| Model Number: | 2GES-2Y-40S,2GC-2.2Y-40S |
| MOQ: | 1 piece |
| Price: | US$712-1000/PC |
| Delivery Time: | 5-7 Days |
| Payment Terms: | T/T,Western Union,MoneyGram |

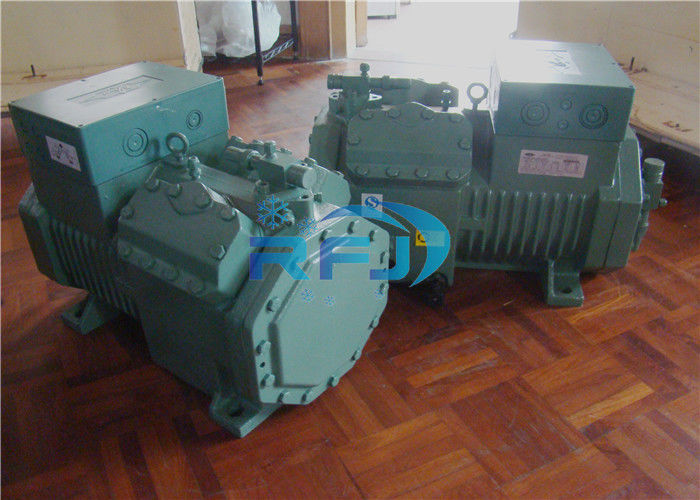

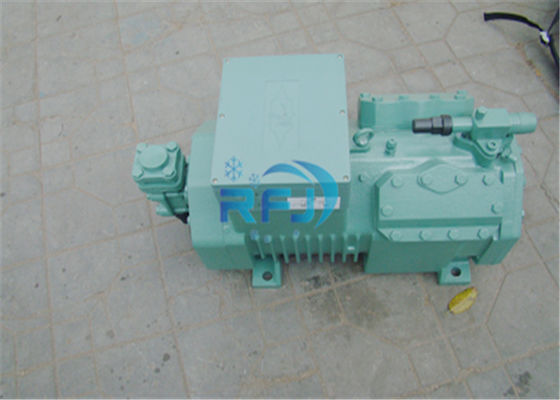

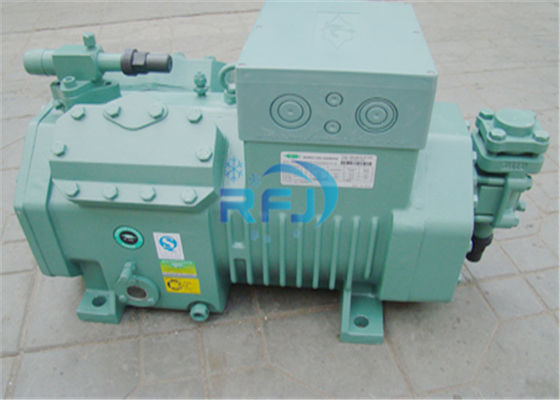

2HP small refrigeration compressor model 2GES-2Y-40S designed for walk-in freezer applications with optimal BTU performance.
| Model | Displacement @1450r/min (m³/h) | Cylinders | Oil Charge (dm³) | Weight (Kg) | Discharge Line | Suction Line |
|---|---|---|---|---|---|---|
| 2KES-05Y | 4.06 | 2 | 1 | 43 | 12 mm (1/2") | 16 mm (5/8") |
| 2JES-07Y | 5.21 | 2 | 1 | 43 | 12 mm (1/2") | 16 mm (5/8") |
| 2HES-1Y | 6.51 | 2 | 1 | 44 | 12 mm (1/2") | 16 mm (5/8") |
| 2HES-2Y | 6.51 | 2 | 1 | 45 | 12 mm (1/2") | 16 mm (5/8") |
| 2GES-2Y | 7.58 | 2 | 1 | 45 | 12 mm (1/2") | 16 mm (5/8") |
| 2FES-2Y | 9.54 | 2 | 1 | 45 | 12 mm (1/2") | 16 mm (5/8") |
| 2FES-3Y | 9.54 | 2 | 1 | 47 | 12 mm (1/2") | 16 mm (5/8") |
|
|
| Model Number: | 2GES-2Y-40S,2GC-2.2Y-40S |
| MOQ: | 1 piece |
| Price: | US$712-1000/PC |

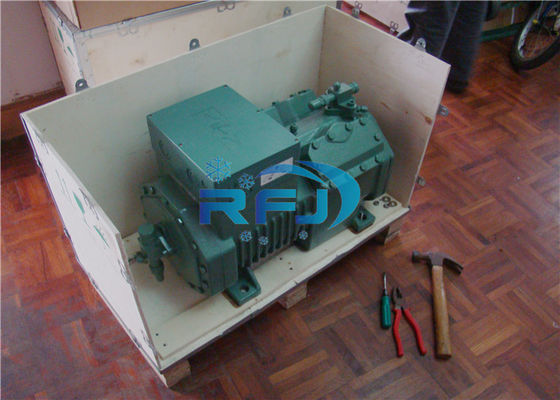

| Packaging Details: | Standard Wooden Package |
