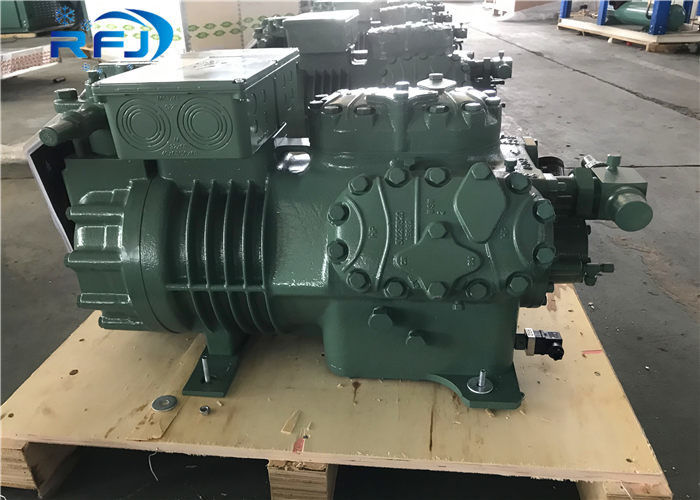

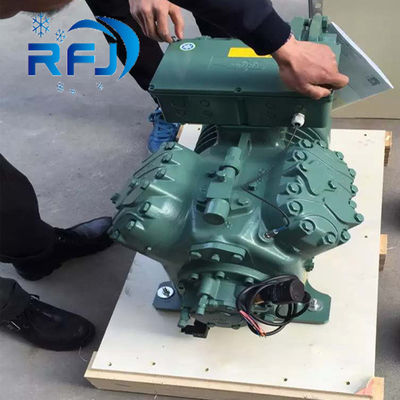

| Model Number: | 6HE-28Y-40P,6H-25.2Y-40P |
| MOQ: | 1 piece |
| Price: | US$712-1000/PC |
| Delivery Time: | 5-7 Days |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Specification | SI Units | Imperial Units |
|---|---|---|
| Displacement (1450 RPM 50 HZ) | 110.5 m³/h | 3902.3 CFH |
| Displacement (1750 RPM 60 HZ) | 133.4 m³/h | 4711.0 CFH |
| No. of cylinder × bore × stroke | 6 × 70mm × 55mm | 4 × 2.76inch × 2.17Inch |
| Weight | 224 kg | 494 lb |
| Max pressure (LP/HP) | 19/32 bar | 275/464 psi |
| Connection suction line | 54mm-2 1/8" | 54mm-2 1/8" |
| Connection discharge line | 35mm-1 3/8" | 35mm-1 3/8" |
| Motor version | 2 | 2 |
| Starting current (Rotor locked) | 141.0 A Y/233.0 A YY | 245.0 A |
| Motor voltage | 380-420V PW-3-50 HZ | 440-480V Y-3-60 HZ UL |
| Max operating current | 53.2 A | 53.2 A |
| Name | Model | Power | Displacement | Cooling Capacity | Motor Power | Temperature |
|---|---|---|---|---|---|---|
| Series Compressor (Low temperature) | 6H-25.2-40P | 25HP | 110.5 m³/h | 9.1kw~75kw | 18kw | -15℃~-40℃ |
| Series Compressor (Low temperature) | 6G-30.2-40P | 30HP | 126.8 m³/h | 10.2kw~84kw | 22kw | -15℃~-40℃ |
| Series Compressor (Low temperature) | 6F-40.2-40P | 40HP | 151.6 m³/h | 17.6kw~101kw | 29kw | -15℃~-40℃ |
| Series Compressor (High temperature) | 6H-35.2-40P | 35HP | 110.5 m³/h | 12.5kw~116kw | 25.7kw | +10℃~-10℃ |
| Series Compressor (High temperature) | 6G-40.2-40P | 40HP | 126.8 m³/h | 15kw~135kw | 29.4kw | +10℃~-10℃ |
| Series Compressor (High temperature) | 6F-50.2-40P | 50HP | 151.6 m³/h | 18.6kw~158kw | 36.7kw | +10℃~-10℃ |
Production: Well-controlled manufacturing processes with over 10 years of experience in high-quality refrigeration field.
Quality: Comprehensive quality control training to distinguish premium quality from mid-market or low-grade alternatives.
Price: Established workflows that save costs while maintaining high quality standards.
Delivery: Commitment to on-time delivery that meets customer requirements.
We provide complete cold storage equipment solutions and offer custom product development based on your specific requirements. If you're unsure which model suits your needs, contact us for a customized solution.
|
|
| Model Number: | 6HE-28Y-40P,6H-25.2Y-40P |
| MOQ: | 1 piece |
| Price: | US$712-1000/PC |
| Packaging Details: | Standard Wooden Package |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Specification | SI Units | Imperial Units |
|---|---|---|
| Displacement (1450 RPM 50 HZ) | 110.5 m³/h | 3902.3 CFH |
| Displacement (1750 RPM 60 HZ) | 133.4 m³/h | 4711.0 CFH |
| No. of cylinder × bore × stroke | 6 × 70mm × 55mm | 4 × 2.76inch × 2.17Inch |
| Weight | 224 kg | 494 lb |
| Max pressure (LP/HP) | 19/32 bar | 275/464 psi |
| Connection suction line | 54mm-2 1/8" | 54mm-2 1/8" |
| Connection discharge line | 35mm-1 3/8" | 35mm-1 3/8" |
| Motor version | 2 | 2 |
| Starting current (Rotor locked) | 141.0 A Y/233.0 A YY | 245.0 A |
| Motor voltage | 380-420V PW-3-50 HZ | 440-480V Y-3-60 HZ UL |
| Max operating current | 53.2 A | 53.2 A |
| Name | Model | Power | Displacement | Cooling Capacity | Motor Power | Temperature |
|---|---|---|---|---|---|---|
| Series Compressor (Low temperature) | 6H-25.2-40P | 25HP | 110.5 m³/h | 9.1kw~75kw | 18kw | -15℃~-40℃ |
| Series Compressor (Low temperature) | 6G-30.2-40P | 30HP | 126.8 m³/h | 10.2kw~84kw | 22kw | -15℃~-40℃ |
| Series Compressor (Low temperature) | 6F-40.2-40P | 40HP | 151.6 m³/h | 17.6kw~101kw | 29kw | -15℃~-40℃ |
| Series Compressor (High temperature) | 6H-35.2-40P | 35HP | 110.5 m³/h | 12.5kw~116kw | 25.7kw | +10℃~-10℃ |
| Series Compressor (High temperature) | 6G-40.2-40P | 40HP | 126.8 m³/h | 15kw~135kw | 29.4kw | +10℃~-10℃ |
| Series Compressor (High temperature) | 6F-50.2-40P | 50HP | 151.6 m³/h | 18.6kw~158kw | 36.7kw | +10℃~-10℃ |
Production: Well-controlled manufacturing processes with over 10 years of experience in high-quality refrigeration field.
Quality: Comprehensive quality control training to distinguish premium quality from mid-market or low-grade alternatives.
Price: Established workflows that save costs while maintaining high quality standards.
Delivery: Commitment to on-time delivery that meets customer requirements.
We provide complete cold storage equipment solutions and offer custom product development based on your specific requirements. If you're unsure which model suits your needs, contact us for a customized solution.
