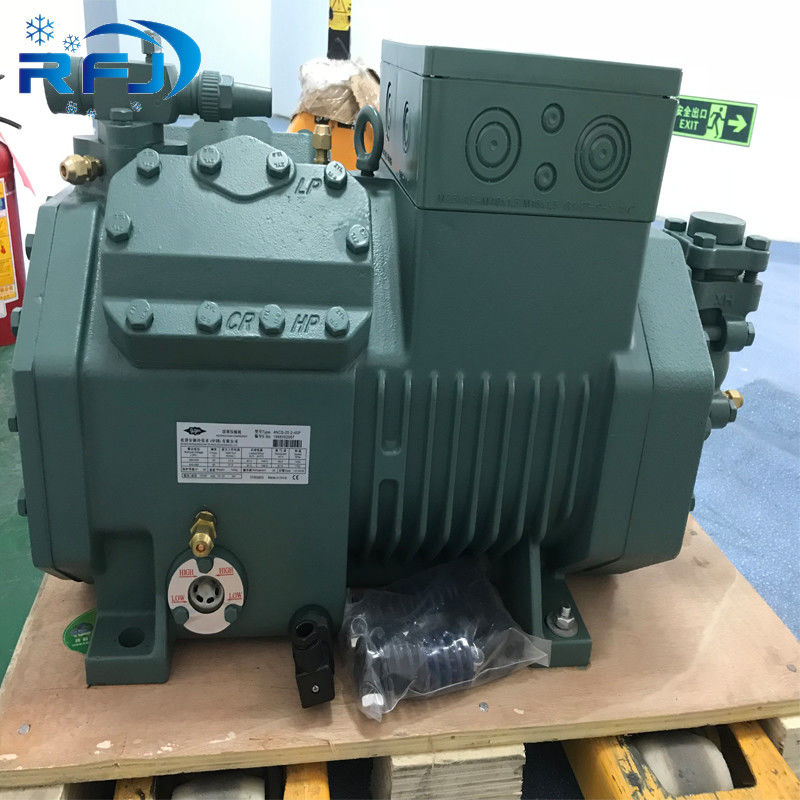

| Model Number: | 6GE-34Y-40P,6G-30.2Y-40P |
| MOQ: | 1 piece |
| Price: | US$712-1000/PC |
| Delivery Time: | 5-7 Days |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Parameter | SI Units | IP Units |
|---|---|---|
| Displacement (1450 RPM 50Hz) | 126.8 m³/h | 4477.9 CFH |
| Displacement (1750 RPM 60Hz) | 153.0 m³/h | 5403.1 CFH |
| No. of cylinder x bore x stroke | 6 x 75 mm x 55 mm | 6 x 2.95 inch x 2.17 inch |
| Weight | 228 kg | 503 lb |
| Max. pressure (LP/HP) | 19 / 32 bar | 275 / 464 psi |
| Connection suction line | 54 mm - 2 1/8" | 54 mm - 2 1/8" |
| Connection discharge line | 35 mm - 1 3/8" | 35 mm - 1 3/8" |
| Refrigerant Type | SI Units | IP Units |
|---|---|---|
| R134a/R407C/R404A/R507A/R407A/R407F | BSE32 (Standard) R134a tc>70°C: BSE55 (Option) |
BSE32 (Standard) R134a tc>155°F: BSE55 (Option) |
| R22 (R12/R502) | B5.2 (Option) | B5.2 (Option) |
| R1234yf/R1234ze | BSE32 (Standard) R1234ze tc>70°C & to>0°C: BSE55 (Option) R1234ze to>15°C: BSE85K (Option) |
BSE32 (Standard) R1234ze tc>70°C & to>0°C: BSE55 (Option) R1234ze to>15°C: BSE85K (Option) |
| Component | SI Units | IP Units |
|---|---|---|
| Motor protection | SE-B2, CM-RC-01 (Option) | SE-B2 |
| Enclosure class | IP54 (Standard), IP66 (Option) | IP54 (Standard), IP66 (Option) |
| Vibration dampers | Standard | Standard |
| Oil charge | 4.75 dm³ | 167.2 fl oz |
| Discharge shut-off valve | Standard | Standard |
| Suction shut-off valve | Standard | Standard |
| Option | SI Units | IP Units |
|---|---|---|
| Connection suction line | Option | Option |
| Discharge shut-off valve | Option | Option |
| Discharge gas temperature sensor | Option | Option |
| Start unloading | Option | Option |
| Capacity Control - infinite | 100-10% (Option) | 100-10% (Option) |
| Refrigerant Injection (RI) | Option | Option |
| Oil service valve | Option | Option |
| Capacity control | 100-66-33% (Option) | 100-66-33% (Option) |
| Additional fan | Option | Option |
| Crankcase heater | 140 W (Option) | 140 W (Option) |
| Oil pressure monitoring | MP54 (Option), Delta-PII | MP54 (Option), Delta-PII |
| Parameter | SI Units | IP Units |
|---|---|---|
| Motor version | 2 | 2 |
| Starting current (Rotor locked) | 141.0 A Y / 233.0 A YY | 245.0 A |
| Motor voltage (more on request) | 380-420V PW-3-50Hz | 440-480V Y-3-60Hz UL |
| Max operating current | 65.5 A | 65.5 A |
| Measurement | SI Units @50Hz | IP Units @60Hz |
|---|---|---|
| Sound power level (-10°C / 45°C) | 83.3 dB(A) | 85.8 dB(A) |
| Sound pressure level @ 1m (-10°C / 45°C) | 75.3 dB(A) | 77.8 dB(A) |
| Sound power level (-10°C / 45°C) R134a | 81.3 dB(A) | 83.8 dB(A) |
| Sound power level (-35°C / 40°C) | 89.5 dB(A) | 92 dB(A) |
| Sound pressure level @ 1m (-35°C / 40°C) | 81.5 dB(A) | 84 dB(A) |
|
|
