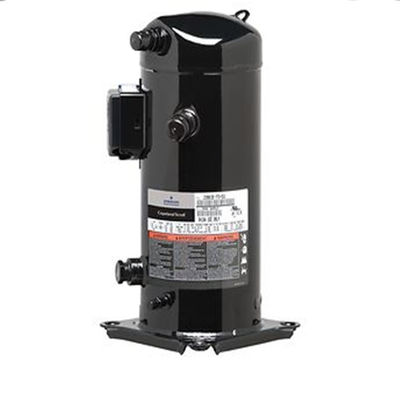

Copeland ZH15K4E-TFD-524 1.5hp Refrigeration Scroll Compressor

China Shenzhen Ruifujie Technology Co., Ltd. certification
China Shenzhen Ruifujie Technology Co., Ltd. certification
After visiting your office and factory on August 1 this year, we are more confident to cooperate with your company. We plan to build two or three seafood cold storage warehouses in our city at the later stage. This order will be negotiated well with your business manager.

—— Benet’s Refrigeration Ltd

We have received the Danfoss compressor purchased in July. The package is beautiful and the quality is excellent. We will cooperate with rifter in the next order.

—— Mr.Rosalind

Your company's service is warm, especially Miss Liana. We are happy to cooperate with her this time, and the quotation is fast, the products are received soon, and the quality is good. Looking forward to cooperating with your company.

—— Mr.Mike Smith

In may this year, we ordered a bizer water cooling unit in your company. After two months of installation, the customer reported that it was running well. We plan to continue to order five units in October.

—— Gunawan

In July, we purchased 5 Bitzer Compressor from your company and used it well. This time, we also want to buy a grain compressor.

—— Mrs Jane Smith

Since 2013, I have ordered 10 refrigeration parts from your company, and then ordered the whole batch of ZB series compressor.

—— Miss April

I am very happy to cooperate with your company. In particular, it is very comfortable to communicate with your Miss Liana Wu and follow-up services, I hope to continue to cooperate.


Copeland is good with reasonable price. Fast shipping time and fast response. Very grateful!!!

—— Ms. Irina

I just wanted to take a moment to commend Shenzhen RFJ Technology Co., Ltd for their exceptional products and customer service. Their compressors are high quality and have exceeded my expectations in terms of performance and durability. Also, their sales have been incredibly helpful and responsive, making the entire purchasing process a breeze.

—— Mr. Oleksandr

I'm Online Chat Now

Copeland ZH15K4E-TFD-524 1.5hp Refrigeration Scroll Compressor

Copeland ZH15K4E-TFD-524 1.5hp Refrigeration Scroll Compressor
Copeland ZH15K4E-TFD-524 1.5hp Refrigeration Scroll Compressor

Large Image :  Copeland ZH15K4E-TFD-524 1.5hp Refrigeration Scroll Compressor

Product Details:
Place of Origin: china
Brand Name: copeland
Certification: CE
Model Number: ZH15K4E-TFD-524
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: community
Packaging Details: wooden box
Delivery Time: 5-8 days after payment
Payment Terms: T/T, Western Union
Supply Ability: 10000pcs /week
Detailed Product Description
Type: Refrigerator Compressor Refrigerants Compatibilities: R-134a, R-407C
Phase: 3 Heating Capacity: 4.90 KW
Voltages: 380-420 V At 50 Hz, 460 V At 60 Hz Frequency: 50, 60 Hz
COP: 3.38 Displacement: 5.76 M³/h
High Light:



1.5hp Copeland Scroll Compressor

1.5hp Copeland Scroll Air conditioning compressor ZH15K4E-TFD-524 for heat pumps


1, Product Description:

Refrigerants compatibilitiesR-134a, R-407C
Phase3Performances given at conditions-7°C evap. temp.; 35°C cond. temp.; 5 K
suction superheat; 4 K subcooling for R-407C at 50 HzHeating Capacity4.90 kWVoltages380-420 V at 50 Hz, 460 V at 60 HzFrequency50, 60 HzPower Input1.13 kWCOP3.38Displacement5.76 m³/hOverall Dimension / Net Weight243 x 243 x 364 mm (W x L x H) / 23 kgPED Category1Low/High Side PS22.6/32 bar(g)Maximum Operating Current4.1 ALocked Rotor Current26 ASound Power71 dBA
Brand name copeland compressor
model ZH15K4E-TFD-524
Nominal Power(hp) 2HP
Capacity(kw) 3.7kw
COP 3.0
Displacement(m3/h) 4.7
Stub Suction(inch) 3/4
Stub Discharge(inch) 1/2
Oil Quantity(l) 0.7
Length/Width/Height(mm) 272/193/403
Net weight(kg) 21
Type of compressor copeland compressor ZH12K4E

Copeland ZH15K4E-TFD-524 1.5hp Refrigeration Scroll Compressor 0

Copeland Scroll axial and radial compliance for high reliability
High efficiency and increased heating capacity
High water temperature for all applications
Low sound and low vibration level
Tandem combination for superior seasonal efficiency



Copeland ZH15K4E-TFD-524 1.5hp Refrigeration Scroll Compressor 1

4, Our main compressor lines are :

· compressors,

· Copeland scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES

· Copeland Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES

· performer compressors: SM, SZ, SH SERIES

· commercial compressors: FR, SC SERIES

· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES

· Secop compressor, Carrier(Carlyle) compressor

· Hitachi compressor,Daikin compressor, Sanyo compressor

·Tecumseh compressor, LG compressor, Mitsubishi compressor,

·Toshiba compressor, Panasonic compressor, Embraci Aspera compressor


Copeland Scroll™ Compressors For Heating are designed for optimum operation and reliability of heat pumps connected to hydronic distribution systems for space heating and/or for the production of domestic hot water. These applications require reaching condensing temperatures as high as 65°C with high efficiency and reliability over a broad operating range. Features such as brazed fitting connections and special versions for the tandemization of compressors fit the requirements of heat pump systems.
