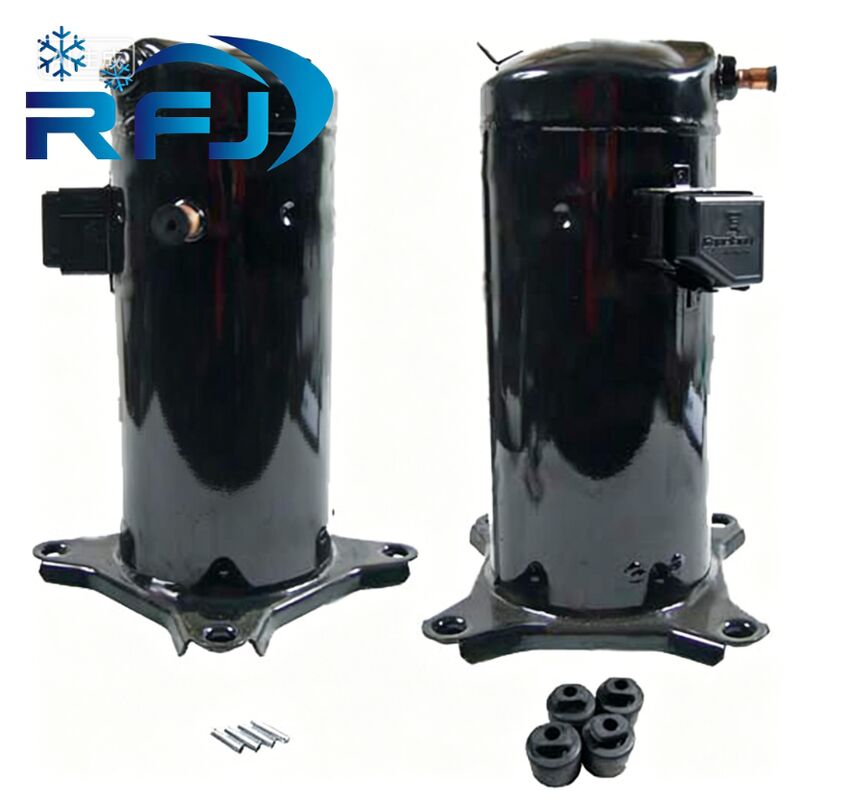

Zh21K4e-Tfd-524 Heat Pump 3HP Scroll Compressor

Name: Zh21K4e-Tfd-524 Heat Pump 3HP Scroll Compressor
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: Zh21K4e-Tfd-524
Price: 5,000.00 USD
Availability: InStock

Place of Origin:china

Certification:CE

Model Number:Zh21K4e-Tfd-524

Minimum Order Quantity:1pcs

Price:community

Standard Packaging:wooden box

Delivery Time:5-8 days after payment

Payment Terms:T/T,Western Union

Supply Ability:10000pcs /week

Tags:

screw type air compressor

scroll compressor refrigeration

Product Details

Highlight:

3HP Air Conditioner Compressor

Zh21K4e-Tfd-524

Type: Refrigerator Compressor

Phase: 3

Heating Capacity: 6.90 KW

Voltages: 380-420 V At 50 Hz, 460 V At 60 Hz

Frequency: 50, 60 Hz

Power Input: 1.56 KW

COP: 3.47

Displacement: 8.04 M³/h

Product Description

Detailed Specifications & Features

1.5hp Scroll Air conditioning compressor ZH15K4E-TFD-524 for heat pumps

1, Product Description:

Refrigerants compatibilitiesR-134a, R-407CPhase3Performances given at conditions-7°C evap. temp.; 35°C cond. temp.; 5 K suction superheat; 4 K subcooling for R-407C at 50 HzHeating Capacity6.90 kWVoltages380-420 V at 50 Hz, 460 V at 60 HzFrequency50, 60 HzPower Input1.56 kWCOP3.47Displacement8.04 m³/hOverall Dimension / Net Weight242 x 243 x 387 mm (W x L x H) / 27 kgPED Category1Low/High Side PS22.6/32 bar(g)Maximum Operating Current5.6 ALocked Rotor Current35 ASound Power72 dBA

Brand name	compressor
model	Zh21K4e-Tfd-524
Nominal Power(hp)	3HP
Capacity(kw)	3.7kw
COP	3.0
Displacement(m3/h)	4.7
Stub Suction(inch)	3/4
Stub Discharge(inch)	1/2
Oil Quantity(l)	0.7
Length/Width/Height(mm)	272/193/403
Net weight(kg)	21
Type of compressor	compressor

Zh21K4e-Tfd-524 Heat Pump 3HP Scroll Compressor

2.Features
Scroll axial and radial compliance for high reliability
High efficiency and increased heating capacity
High water temperature for all applications
Low sound and low vibration level
Tandem combination for superior seasonal efficiency

3.Drawings

Zh21K4e-Tfd-524 Heat Pump 3HP Scroll Compressor

4, Our main compressor lines are :

· compressors,

· scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES

· Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES

· performer compressors: SM, SZ, SH SERIES

· commercial compressors: FR, SC SERIES

· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES

· Secop compressor, Carrier(Carlyle) compressor

· Hitachi compressor,Daikin compressor, Sanyo compressor

·Tecumseh compressor, LG compressor, Mitsubishi compressor,

·Toshiba compressor, Panasonic compressor, Embraci Aspera compressor
