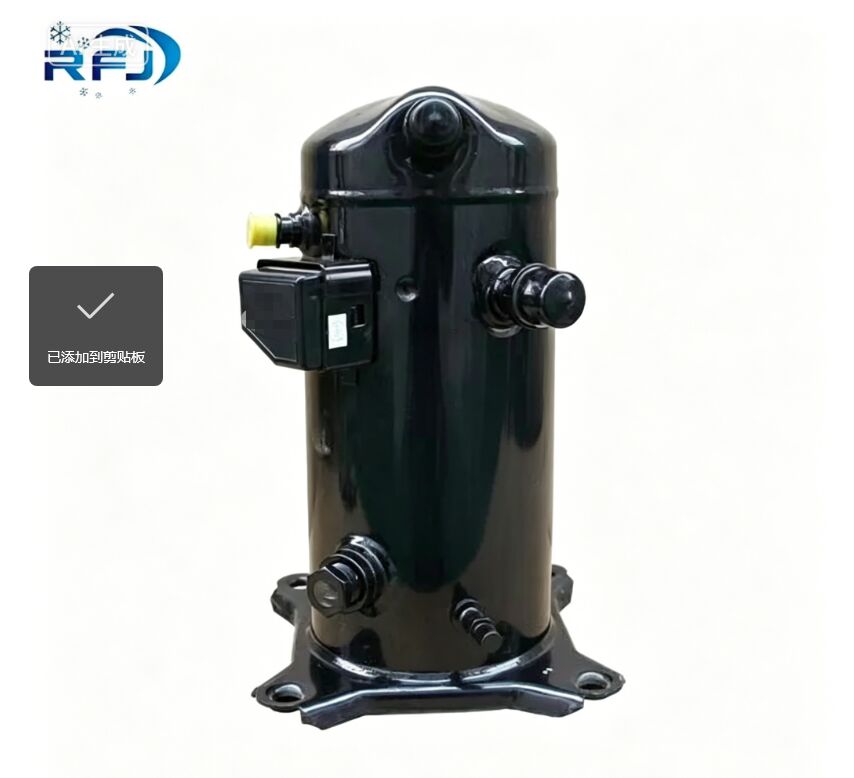

Zh30K4e-Tfd-524 3.5HP Air Conditioning Compressors
Hermetic Compressors
,Zh30K4e-Tfd
3.5HP High Efficiency ZH30K4E-TFD-524 - ZH Hermetic Compressors for Air Conditioning
| Type | Hermetic piston compressors |
|---|---|
| Series | ZH |
| Model | ZH30K4E-TFD-524 |
| Nominal engine power [KM] | 4 |
| Volumetric capacity [m³/h] | 11.7 |
| Sound pressure | 59 |
| Weight [kg] | 41 |
| Oil filling [dm³] | 1.89 |
| Power supply [V/~/Hz] | 380-420V / 3 / 50Hz |
|---|---|
| Short-circuit current [A] | 51.5 |
| Max. current consumption [A] | 11 |
| Winding resistance [Ω] | 3.64 |
| Suction port | 7/8" |
|---|---|
| Discharge port | 1/2" |
| Brand | ZH |
|---|---|
| Model | ZH30K4E-TFD |
| Horse Power | 3.5 HP |
| Refrigerant | R407C/R134a |
| COP | 3.1 |
| Capacity (KW) | 8.2 |
| Color | Black |
| Connection | Brazed |
| Type | Heat pump compressor |
| Displacement (m³/h) | 10.0 |
- Scroll axial and radial compliance for high reliability
- High efficiency and increased heating capacity
- High water temperature for all applications
- Low sound and low vibration level
- Tandem combination for superior seasonal efficiency
Available models: ZH12K4E to ZH45K4E, ZH56K4E to ZH11M4E, ZH06KVE to ZH18KVE PFS-582, ZH04K1P to ZH19K1P, etc.
- Compatible refrigerants: R134a, R407C, R410a
- Quiet Operation - ZH heating compressors have been designed for low sound levels, ideal for indoor heat pumps
- High Efficiency with Enhanced Vapor Injection technology
- Optimized for best-in-class performance in dedicated heating applications
- Can replace traditional boilers without substituting existing heating elements
