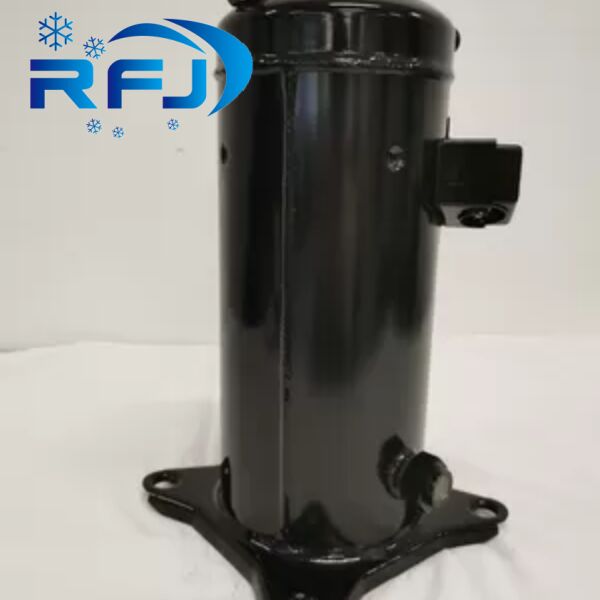

Heat Pump ZH38K4E-TFD-524 5HP Copelametic Compressor
5HP Scroll Compressors
,Zh38K4e-Tfd
5HP Zh Scroll Compressors ZH38K4E-TFD-524 Copelametic Compressor for Heat Pump
| Parameter | Value |
|---|---|
| Type | Hermetic piston compressors |
| Series | ZH |
| Model | ZH38K4E-TFD-524 |
| Nominal motor power [HP] | 5 |
| Displacement [m³/h] | 14.4 |
| Sound pressure level | 60 |
| Weight [kg] | 41 |
| Oil charge [dm³] | 1.89 |
| Parameter | Value |
|---|---|
| Power supply [V/~/Hz] | 380-420V/3/50Hz |
| Locked rotor current [A] | 64 |
| Max. operating current [A] | 14 |
| Winding resistance [Ω] | 2.75 |
| Connection Type | Size (inches) |
|---|---|
| Suction line | 7/8" |
| Discharge line | 1/2" |
- Scroll axial and radial compliance for high reliability
- High efficiency and increased heating capacity
- High water temperature for all applications
- Low sound and low vibration level
- Tandem combination for superior seasonal efficiency
Compatible models include ZH12K4E to ZH45K4E, ZH56K4E to ZH11M4E, ZH06KVE to ZH18KVE PFS-582, ZH04K1P to ZH19K1P, etc.
Refrigerant compatibility: R134a, R407C, R410a
ZH heating compressors with Enhanced Vapor Injection have been optimized for best-in-class performance in dedicated heating applications. This technology allows replacement of traditional boilers in new building and retrofit applications without replacing existing heating elements.
