| Model Number: | ZH45K4E-TFD-524 |
| MOQ: | 1pcs |
| Price: | community |
| Delivery Time: | 5-8 days after payment |
| Payment Terms: | T/T,Western Union |

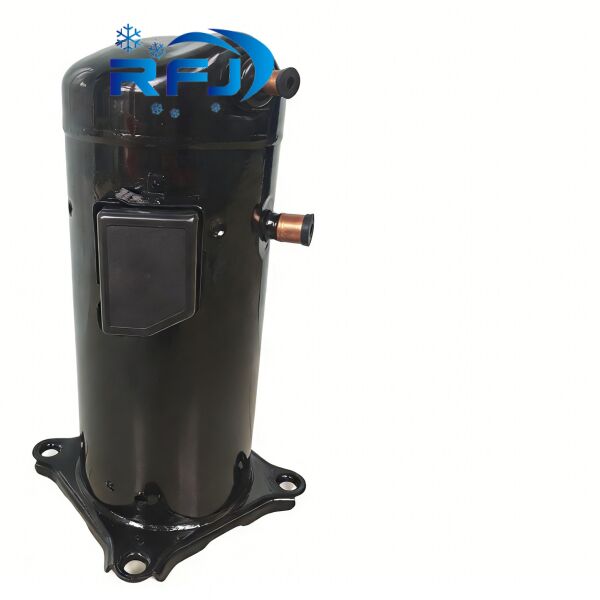

ZH Scroll Compressor ZH45K4E-TFD-524 with Best Price for Heat Pump
| Type | Hermetic scroll compressors |
|---|---|
| Series | ZH |
| Model | ZH45K4E-TFD-524 |
| Parameter | Value |
|---|---|
| Displacement | 17.1 m³/h |
| Sound power | 75 dBA |
| Sound pressure level | 64 dB |
| Net Weight | 40 kg |
| Gross Weight | 44 kg |
| Oil charge | 1.9 dm³ |
| Maximum high pressure | 32 bar |
| Maximum standstill pressure | 20 bar |
| Maximum lowside temperature | 50 °C |
| PED category | 1 |
| Parameter | Value |
|---|---|
| Power supply | 380-420V/3/50Hz |
| Locked rotor current | 74 A |
| Max. operating current | 11.8 A |
| Winding resistance | 2.3 Ω |
| Connection Type | Size |
|---|---|
| Suction connection with supplied sleeve | 7/8" |
| Discharge connection with supplied sleeve | 1/2" |
Available models: ZH12K4E to ZH45K4E, ZH56K4E to ZH11M4E, ZH06KVE to ZH18KVE PFS-582, ZH04K1P to ZH19K1P, etc.
Refrigerant Compatibility: R134a, R407C, R410A
Quiet Operation: ZH heating compressors have been designed for low sound levels, a specific requirement for indoor heat pumps.
High Efficiency: The ZH compressor range is optimized for reversible and heat pump applications. In addition to the existing R407C range, a complete new range optimized for R410A has been developed. Both ranges are based on three platform sizes and cover a capacity of 4kW to 38kW.
ZH heating compressors have been optimized for reversible heating systems, delivering higher capacity and efficiency at low evaporating (heat source) temperatures. They are better adapted to heating requirements than standard air conditioning compressors. Due to their larger operating map, they require less additional heating (electrical or gas) to cover the full heating demand on the coldest days, further improving system seasonal efficiency.
|
|
