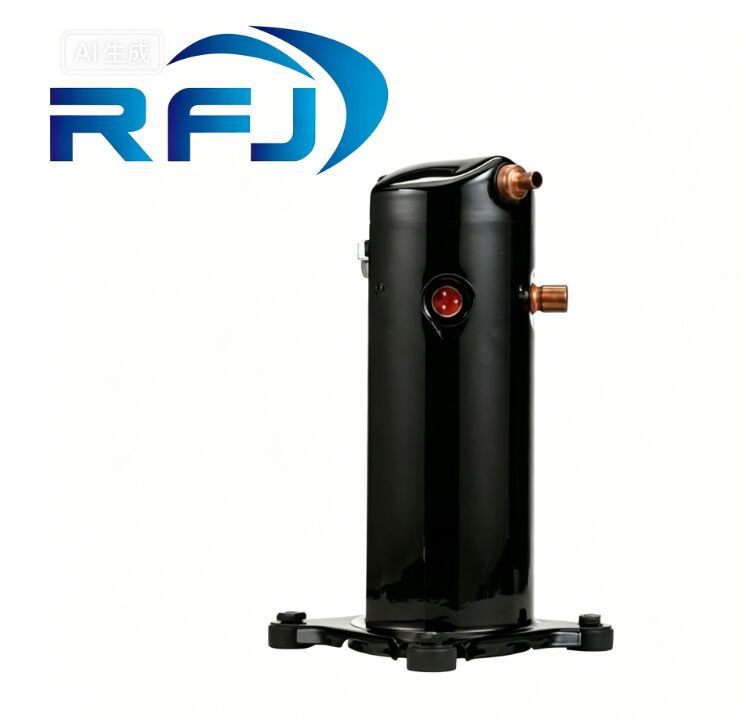

Zh11m4e-Twd-524 15pH Refrigeration Scroll Compressor
15pH Scroll Compressor
,Zh11m4e-Twd
| Shipping Weight | 122.00 Kg |
| Dimensions (L × W × H) | 35.70 × 32.10 × 57.90 cm |
| Manufacturer | Emerson |
| Model | ZH11M4E-TWD-524 |
| Power (W) | 37000 |
| Heating Power Condition | R407C, condensing temperature +50°C |
| Heating Power (W) | 46300 |
| Power (HP) | 15 |
| Max. Starting Current (A) | 198 |
| Max. Operating Current (A) | 32 |
| dbA @ 1m | 72 |
| Conveying and Suction Volume (m³) | 42.8 |
| Oil Quantity (l) | 4.1 |
| Compressor Type | Scroll |
| Suction (inch) | 1.5/8 |
| Discharge (inch) | 7/8 |
- Scroll axial and radial compliance for high reliability
- High efficiency and increased heating capacity
- High water temperature for all applications
- Low sound and low vibration level
- Tandem combination for superior seasonal efficiency
Compatible models: ZH12K4E to ZH45K4E, ZH56K4E to ZH11M4E, ZH06KVE to ZH18KVE PFS-582, ZH04K1P to ZH19K1P, etc.
Refrigerant: R134a, R407C, R410a
Quiet Operation: ZH heating compressors have been designed for low sound levels, a specific requirement for indoor heat pumps.
High Efficiency: Scroll™ Compressors For Heating are designed for optimum operation and reliability of heat pumps connected to hydronic distribution systems for space heating and/or for the production of domestic hot water. These applications require reaching condensing temperatures as high as 65°C with high efficiency and reliability over a broad operating range. Features such as brazed fitting connections and special versions for the tandemization of compressors fit the requirements of heat pump systems.
