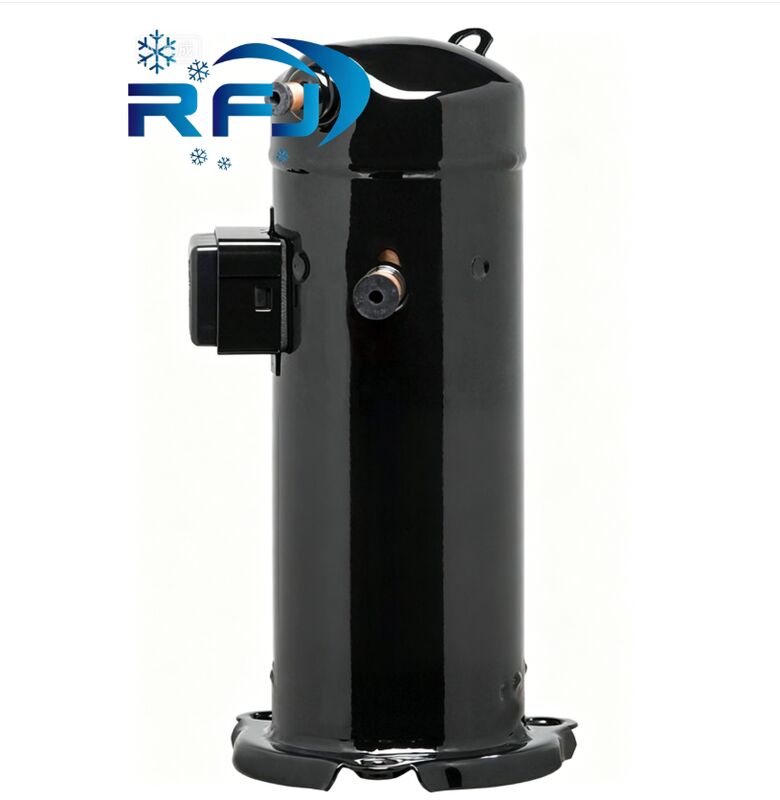

ZH18KVE-TFD-526 Cold Room Compressor For Optimum
Zh18kve
,Hermetic Scroll Compressors
Hot Sale Cold Room Compressor ZH Series ZH18KVE-TFD designed for optimum operation in refrigeration applications.
| Technical Data | ||
|---|---|---|
| Displacement | 17.1 m³/h | |
| Sound power | 78 dBA | |
| Sound pressure level | 67 dB | |
| Net Weight | 41 kg | |
| Gross Weight | 44 kg | |
| Oil charge | 1.9 dm³ | |
| Maximum high pressure | 32 bar | |
| Maximum standstill pressure | 20 bar | |
| Maximum lowside temperature | 50 °C | |
| PED category | 1 | |
| Electrical Data | ||
|---|---|---|
| Power supply | 380-420V/3/50Hz | |
| Locked rotor current | 101 A | |
| Max. operating current | 14 A | |
| Winding resistance | 1.8 Ω | |
| Connections | ||
|---|---|---|
| Suction connection with supplied sleeve | 7/8" | |
| Discharge connection with supplied sleeve | 1/2" | |
- Scroll axial and radial compliance for high reliability
- High efficiency and increased heating capacity
- High water temperature for all applications
- Low sound and low vibration level
- Tandem combination for superior seasonal efficiency
Compatible models: ZH12K4E to ZH45K4E, ZH56K4E to ZH11M4E, ZH06KVE to ZH18KVE PFS-582, ZH04K1P to ZH19K1P, etc.
Refrigerant compatibility: R134a, R407C, R410a
ZH heating compressors with Enhanced Vapor Injection have been optimized for best-in-class performance in dedicated heating applications. This technology allows replacement of traditional boilers in new building and retrofit applications without replacing existing heating elements.
