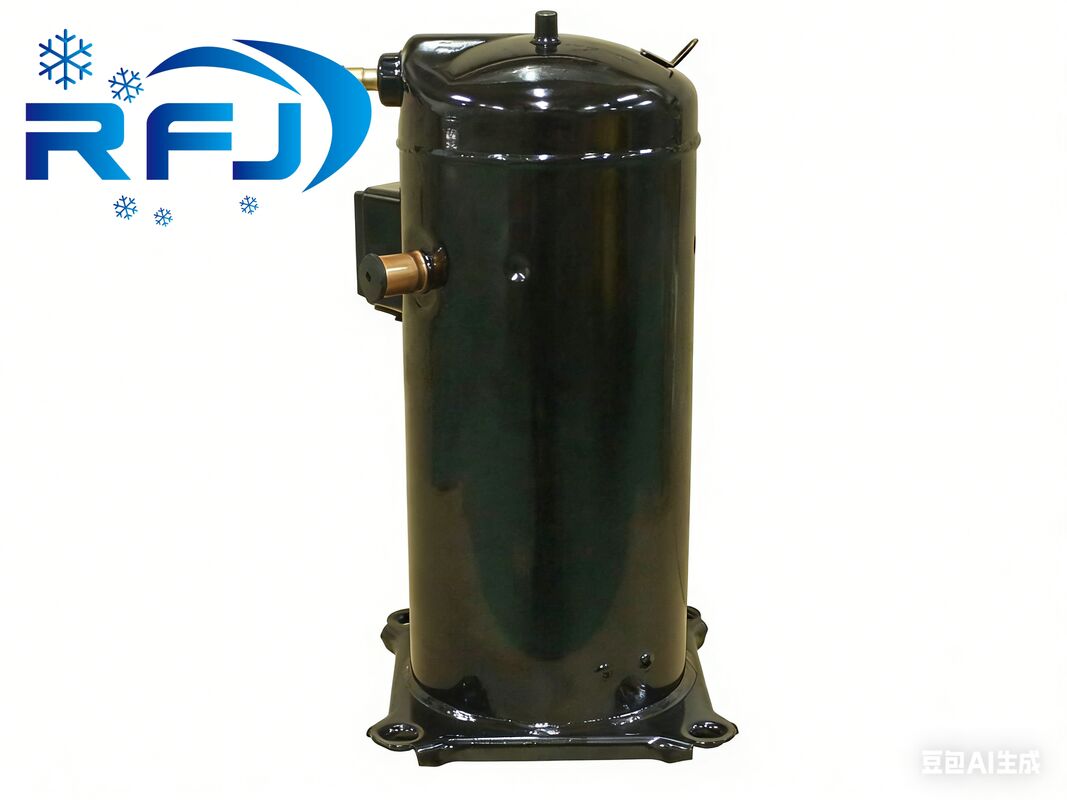

R407c Zh40kve-Twd-526 Refrigeration Scroll Compressor

Name: R407c Zh40kve-Twd-526 Refrigeration Scroll Compressor
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: ZH40KVE-TWD-526
Price: 4,000.00 USD
Availability: InStock

Model Number:	ZH40KVE-TWD-526
MOQ:	1pcs
Price:	community
Delivery Time:	5-8 days after payment
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

Type:

Refrigerator Compressor

Displacement [m³/h:

Sound Power [dBA:

Net Weight [kg:

Gross Weight [kg:

Oil Charge [dm³:

Power Supply [V/~/Hz:

PED Category:

Packaging Details:

wooden box

Supply Ability:

10000pcs /week

Highlight:

R407c Refrigerator Compressor

Zh40kve-Twd

Product Description

R407c ZH40KVE-TWD-526 Refrigeration Scroll Compressor

R407c Scroll Compressor for Heat Pump ZH40KVE-TWD-526 with Best Price

Product Specifications

Type: Hermetic scroll compressors

Series: ZH

Model: ZH40KVE-TWD-526

Technical Data

Parameter	Value
Displacement [m³/h]	35.5
Sound power [dBA]	83
Sound power with sound shell [dBA]	73
Sound pressure level [dB]	72
Net Weight [kg]	103
Gross Weight [kg]	110
Oil charge [dm³]	4.1
Maximum high pressure [bar]	32
Maximum standstill pressure [bar]	22.6
Minimal lowside temperature [°C]	-35
Maximum lowside temperature [°C]	50
PED category	2

Electrical Data

Parameter	Value
Power supply [V/~/Hz]	380-420V/3/50Hz
Locked rotor current [A]	167
Max. operating current [A]	26.7
Winding resistance [Ω]	0.8

Connections

Connection Type	Size (inches)
Suction connection with supplied sleeve	1 3/8"
Discharge connection with supplied sleeve	7/8"

Key Features

Scroll axial and radial compliance for high reliability
High efficiency and increased heating capacity
High water temperature for all applications
Low sound and low vibration level
Tandem combination for superior seasonal efficiency

Technical Drawings

Compatible models: ZH12K4E to ZH45K4E, ZH56K4E to ZH11M4E, ZH06KVE to ZH18KVE PFS-582, ZH04K1P to ZH19K1P, etc.

Additional Technical Information

Refrigerant: R134a, R407C, R410a

Quiet Operation: ZH heating compressors have been designed for low sound levels, a specific requirement for indoor heat pumps.

High Efficiency: ZH heating compressors with Enhanced Vapor Injection have been further optimized to ensure best-in-class performances in dedicated heating applications. This technology allows replacement of traditional boilers in new building and retrofit applications, without the need of substituting existing heating elements in the building.

ZH Scroll heating compressors with Enhanced Vapor Injection have an additional port to inject vapor within the compression process. This improves system performances by increasing the heating capacity for a given compressor displacement. Additional benefits are the reduction of the gas discharge temperature.

Our Main Compressor Lines

Compressors
Scroll compressors: CR, VR, ZB, ZR, ZF, ZP SERIES
Semi-hermetic compressors: DL, D2, D4, D6, D8 SERIES
Performer compressors: SM, SZ, SH SERIES
Commercial compressors: FR, SC SERIES
Maneurop piston compressors: MT, MTZ, NTZ, MPZ SERIES
Secop compressor, Carrier (Carlyle) compressor
Hitachi compressor, Daikin compressor, Sanyo compressor
Tecumseh compressor, LG compressor, Mitsubishi compressor
Toshiba compressor, Panasonic compressor, Embraco Aspera compressor
