| Brand Name: | / |
| Model Number: | ZH48KVE-TWD-526 |
| MOQ: | 1pcs |
| Price: | community |
| Delivery Time: | 5-8 days after payment |
| Payment Terms: | T/T,Western Union |

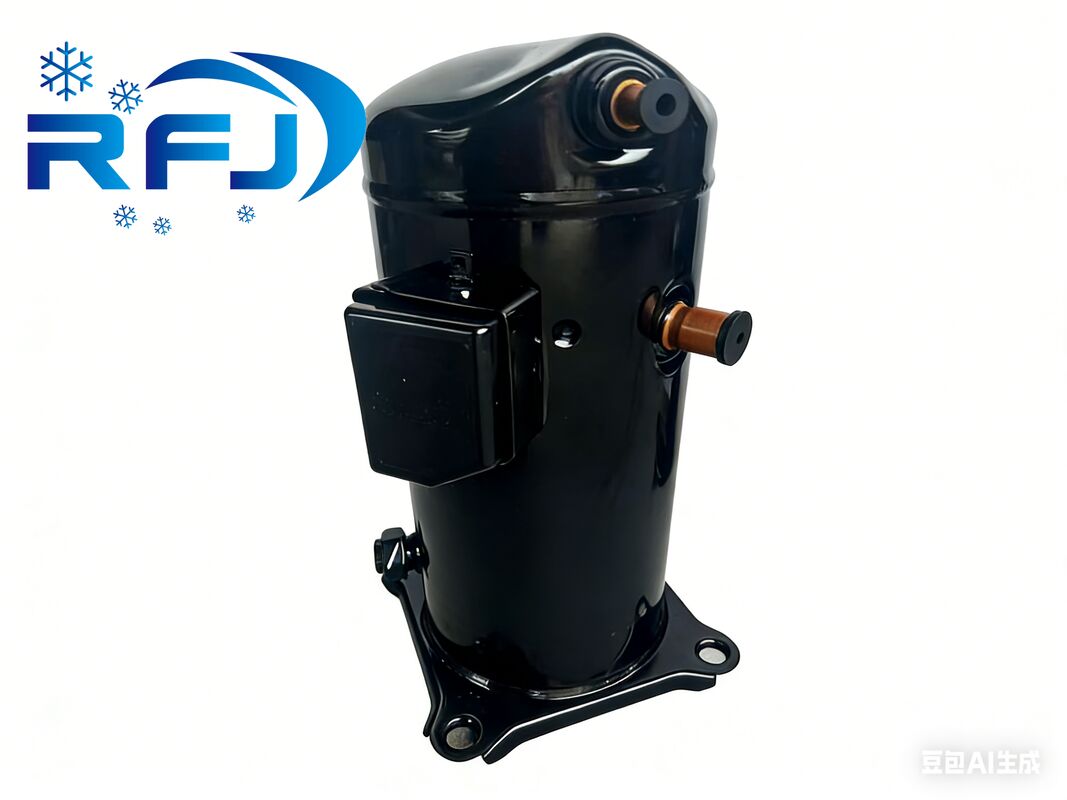

Hermetic scroll compressors model ZH48KVE-TWD-526 designed specifically for heat pump applications with R407C refrigerant.
| Parameter | Value |
|---|---|
| Displacement | 42.8 m³/h |
| Sound Power | 86 dBA |
| Sound Power with Sound Shell | 76 dBA |
| Sound Pressure Level | 75 dB |
| Net Weight | 112 kg |
| Gross Weight | 119 kg |
| Oil Charge | 4.1 dm³ |
| Maximum High Pressure | 32 bar |
| Maximum Standstill Pressure | 22.6 bar |
| Minimal Lowside Temperature | -35°C |
| Maximum Lowside Temperature | 50°C |
| PED Category | 2 |
| Parameter | Value |
|---|---|
| Power Supply | 380-420V/3/50Hz |
| Locked Rotor Current | 198 A |
| Max. Operating Current | 32 A |
| Winding Resistance | 0.7 Ω |
| Connection Type | Size |
|---|---|
| Suction Connection with Supplied Sleeve | 1 5/8" |
| Discharge Connection with Supplied Sleeve | 1 1/8" |
Compatible models include ZH12K4E to ZH45K4E, ZH56K4E to ZH11M4E, ZH06KVE to ZH18KVE PFS-582, ZH04K1P to ZH19K1P, and others.
Refrigerant Options: R134a, R407C, R410a
Quiet Operation: ZH heating compressors have been designed for low sound levels, a specific requirement for indoor heat pumps.
High Efficiency: ZH heating compressors with Enhanced Vapor Injection have been further optimized to ensure best-in-class performances in dedicated heating applications. This technology allows replacement of traditional boilers in new building and retrofit applications, without the need of substituting existing heating elements in the building.
ZH Scroll heating compressors with Enhanced Vapor Injection have an additional port to inject vapor within the compression process. This improves system performances by increasing the heating capacity for a given compressor displacement. Additional benefits include the reduction of gas discharge temperatures.
|
|
