380V R140A Hermetic Scroll Compressor ZPD72KCE-TFD-130
R140A Hermetic Scroll Compressor
,380V Hermetic Scroll Compressor
,ZPD72KCE-TFD-130

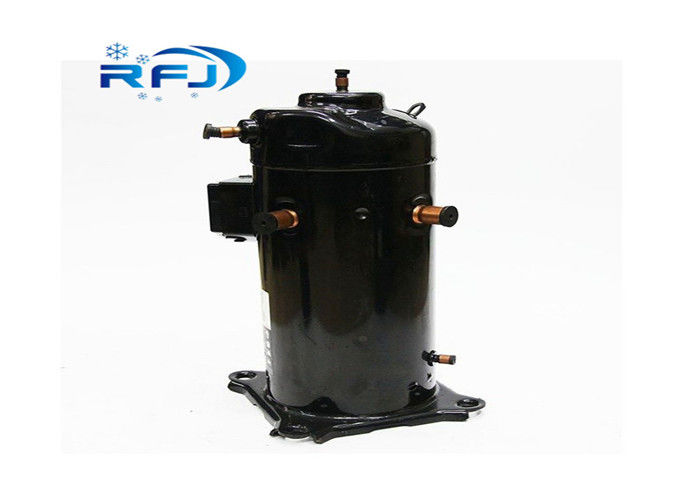

Hermetic Scroll Digital Compressor ZPD72KCE-TFD-130 for 380V R140A
Product description:
Stepless capacity modulation in air conditioning applications:
Flexible solution for R407C and R410A.
In many cooling and heating systems, the load and the operating conditions vary over a wide range thus requiring the use of capacity modulation. Digital Scroll assures stepless modulation down to 10% of the nominal capacity, enabling precise temperature control, superior comfort and energy saving.
Digital Scroll compressors are the preferred choice for process cooling, refrigeration racks, refrigeration units, VRF, rooftop and air handling unit systems.
Technical data:
ZPD72KCE-TFD-130
Z = Scroll Compressor
P = A/C Duty - R410A
D = Digital
72K = 72000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
130 = Bill of Material Product Variation
Standard Features:
High efficiency – EER 11.0 plus
Low Noise & Vibration levels
Inherent motor protection
Centrifugal oil pump
For Heat Pump & Air Conditioning duty
POE Oil
| Product name | digital scroll compressor |
| Model |
ZPD72KCE-TFD-130 |
| Brand | |
| Application | HVAC |
| MOQ | 1 piece |
