3 Phase R407c 15hp Twd Scroll Compressor ZR19M3E-TWD-522

Name: 3 Phase R407c 15hp Twd Scroll Compressor ZR19M3E-TWD-522
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: ZR19M3E-TWD-522
Price: 108.00 USD
Availability: InStock

Model Number:	ZR19M3E-TWD-522
MOQ:	1
Price:	1-215usd/pc
Delivery Time:	3-7 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, UL

Power Source:

AC Power

Voltage::

380V/50Hz /3p

Certification::

CE,CCC,UL,ISO,RoHs

Refrigerant::

R407c/R134a/R22

Color::

Black

Type::

Scroll

Model:

ZR19M3E-TWD-522

Packing::

Wooden Case

Packaging Details:

wooden case

Supply Ability:

1000

Highlight:

15hp Twd Compressor

R407c Twd Compressor

ZR19M3E-TWD

Product Description

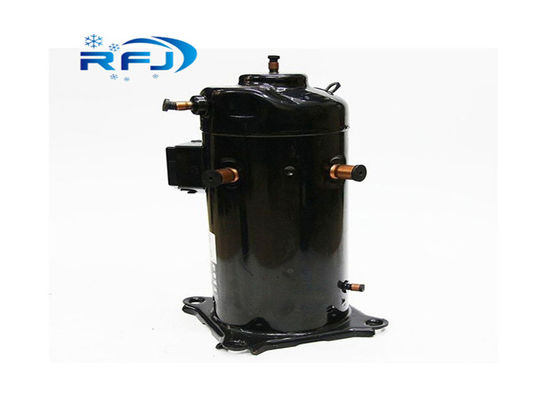

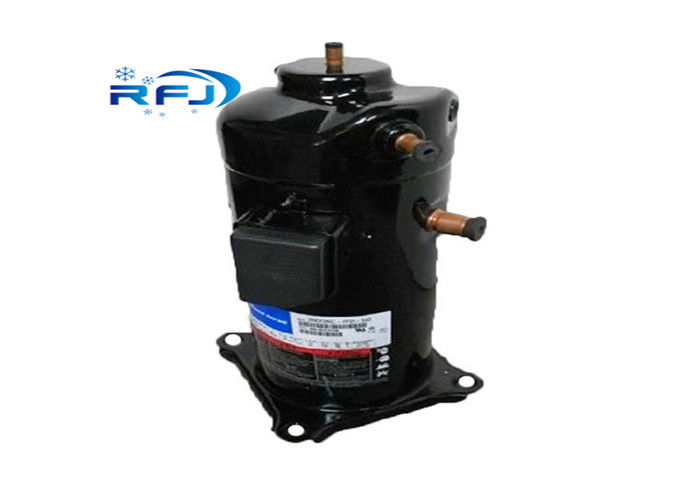

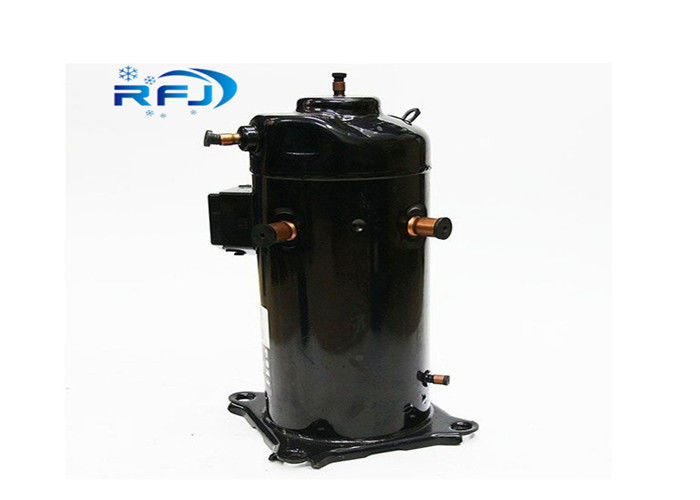

3 Phase R407c 15hp Twd Scroll Compressor ZR19M3E-TWD-522

Product Overview

Refrigerator Compressor 15hp scroll compressor ZR19M3E-TWD-522

Model Number: ZR19M3E-TWD

Production Capacity: 2000 Piece/Pieces per Month

Year: 2014

Certification: VDE, TUV, UL and CE

Place of Origin: Thailand

Voltage: 380

Phase: 3

Displacement: 42.8 m³/hr

Horse Power: 15hp

Cooling Capacity: 45170 W

Output Power: 13400 W

Welding Interface (Exhaust): 7/8"

Welding Interface (Suction): 1-3/8"

Oil Quantity / Oil Quantity Again: 4.14 / 4.05 L

Height: 552 mm

Net Weight: 119 kg

Related Model Specifications

Model	Specifications
ZR22K3E-TFD-522	Refrigerant: R407C Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 17500/20800 EER (Btu/Wh): 10.5/9.8 Refrigerant: R134A Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 12300/14800 EER (Btu/Wh): 10/10
ZR28K3E-TFD-522	Refrigerant: R407C Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 22700/27300 EER (Btu/Wh): 10.6/10.8 Refrigerant: R134A Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 16200/19800 EER (Btu/Wh): 10.3/10.3
ZR40K3E-TFD-522	Refrigerant: R407C Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 31700/38300 EER (Btu/Wh): 10.7/11 Refrigerant: R134A Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 22100/26900 EER (Btu/Wh): 10.6/10.4
ZR28K3-PFJ-522	Refrigerant: R22 Electrical source: Ph1 50HZ 220-240V/60HZ 265V Capacity (Btu/hr): 23600/28500 EER (Btu/Wh): 10.8/10.9
ZR47KC-TFD-522	Refrigerant: R22 Electrical source: Ph3 50HZ 380-420V/60HZ 380-460V Capacity (Btu/hr): 39400/47500 EER (Btu/Wh): 11.5/11.5
ZR57KC-TFD-522	Refrigerant: R22 Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 47500/57500 EER (Btu/Wh): 11.4/11.5
ZR61KC-TFD-522	Refrigerant: R22 Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 49700/62000 EER (Btu/Wh): 11.2/11.5
ZR160KCE-TFD-425	Refrigerant: R407C Electrical source: Ph3 50Hz 380-420V/60HZ 460V Capacity (Btu/hr): 128000/154000 EER (Btu/Wh): 11.2/11.2 Refrigerant: R134A Electrical source: Ph3 50Hz 380-420V/60HZ 460V Capacity (Btu/hr): 87000/105000 EER (Btu/Wh): 11.5/11.1
ZR144KCE-TFD-522	Refrigerant: R407C Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 118000/142000 EER (Btu/Wh): 11.6/11.6 Refrigerant: R134A Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 79500/96400 EER (Btu/Wh): 11.5/11.35
ZR81KCE-TFD-522	Refrigerant: R407C Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 63500/77000 EER (Btu/Wh): 10.8/10.8 Refrigerant: R134A Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 45400/55000 EER (Btu/Wh): 11.3/11.1 Refrigerant: R22 Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 68000/82000 EER (Btu/Wh): 11.7/11.8
ZR19M3-TWD-522	Refrigerant: R22 Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 157000/190000 EER (Btu/Wh): 11.5/11.5
ZR47K3-TFD-522	Refrigerant: R22 Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 38800/47500 EER (Btu/Wh): 11.3/11.4

Product Images
