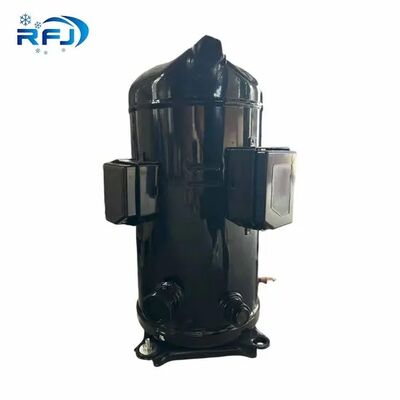

3HP 27000BTU Copeland Hermetic Compressor ZF09KQE-TFD-551

Name: 3HP 27000BTU Copeland Hermetic Compressor ZF09KQE-TFD-551
Brand: 3HP 27000BTU Copeland Hermetic Compressor ZF09KQE-TFD-551
SKU: 3HP 27000BTU Copeland Hermetic Compressor ZF09KQE-TFD-551
Rating: 5 (164 reviews)

Large Image : 3HP 27000BTU Copeland Hermetic Compressor ZF09KQE-TFD-551

Product Details:

Place of Origin:	Thailand

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	discussed
Packaging Details:	wood packaging
Delivery Time:	1-5DAYS
Payment Terms:	T/T, D/A
Supply Ability:	1000PCS

Contact Now

Detailed Product Description

Brand Name:	Copeland	Certification:	CE
Model Number:	ZF09K4E-TFD-551	Application:	Refrigeration Parts
Conditions:	Brand New	Connection Code::	558 524 Brazing / 523 559 Rotalock
Type:	Refrigeration Compressor
High Light:	27000BTU Copeland Hermetic Compressor , 3HP Copeland Hermetic Compressor , ZF09KQE-TFD-551

Air Conditioning compressor model ZF09KQE TFD 551 for Copeland

1. Product introduction:

Voltage:220/380V, 220/380v-50hz
Dimension(L*W*H):260*260*470mm
Weight:27kg
Cooling capacity:27000BTU
Height:405mm
Nominal power:3HP

2. Product parameter(Specification):

Model No.	Nom HP	Displ. cc/rev	evaporating temperature: °c
Model No.	Nom HP	Displ. cc/rev	-40	-35	-25	-15	-5	0
ZF06KQE TFD550	2	34	900	1134	1600	2450	3300	3960
ZF08KQE TFD550	2.5	41.9	1100	1433	2100	3150	4200	5040
ZF09KQE TFD550	3	46.4	1200	1500	2300	3300	4700	5600
ZF11KQE TFD550	3.5	57.5	1500	1800	2800	4100	5800	7000
ZF13KQE TFD551	4	67.8	1700	2100	3200	4800	6900	8200
ZF15KQE TFD551	5	83.3	2100	2600	3900	5800	8300	10000
ZF18KQE TFD551	6	98.8	250	3100	4800	6900	10000	12000
ZF24KQETWD551	7.5	126	3060	3800	580	8500	12300	14700
ZF33KQETWD551	10	166	4350	5300	8200	12200	17500	20800
ZF40KQETWD551	13	204	5200	6400	10000	14800	21300	25500
ZF48KQETWD551	15	244	6000	7400	11400	16900	24500	29300

ZF Compressor Specifications:

Refrigerant: R404/R22 50Hz
Low Temperature
2-15HP
One model for multi-refrigerants R-404A, R-407A, R-134A certain models and R-22
High tolerance to liquid slugging thanks to its axial and radial scroll compliance
Large Operating envelope and low condensing capabilities down to 10° C
Easy, efficient and reliable liquid injection with Discharge Temperature Control Valve (DTC)
Availability of Copeland Scroll Digital® Technology

Description:

1.The most competitive price by agency directly

2.High-quality compressor by Emerson

3.High efficiency, low noise

4.used for cold room

FAQ

Q1. Would you send me a sample before making the order?

Yes, Of course , but you need to pay for the compressor.

Q2.Could you give me a discount if we make a large order ?

Yes , the price depends on quantity.

Q3.What's the payment terms?
Our payment terms is TT and Western Union.

Q4.What's the delivery time?

The delivery date is about 7-10 days after received your payment.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

3HP 27000BTU Copeland Hermetic Compressor ZF09KQE-TFD-551 0

3HP 27000BTU Copeland Hermetic Compressor ZF09KQE-TFD-551 1
