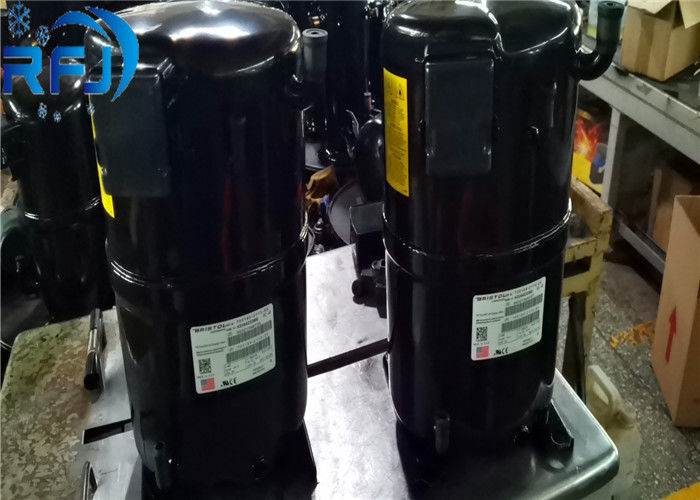

HVAC 8.20A 5.0HP Refrigeration Scroll Compressor H23A623DBE
8.20A Refrigeration Scroll Compressor
,5.0HP Refrigeration Scroll Compressor
,HVAC Hermetic Refrigeration Compressor

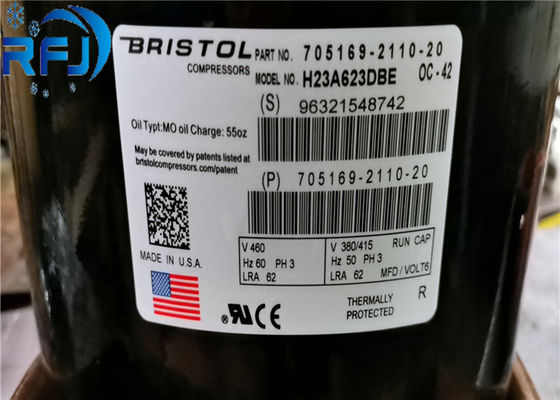

BRISTOL H23A623DBEA 4 TON HIGH TEMP AC/HP RECIPROCATING COMPRESSOR 3-PHASE
Data Sheet
Power supply: 380/415 V-3 ph-50 Hz (460/380 V-3 ph-60 Hz)
Horsepower: 5.00 hp
Displacement: 103.40 cm3
Cooling capacity at ARI conditions, R22: 15.20 kW
Refrigerant: R22
Suction pipe: 7/8"
Discharge pipe: 1/2"
Weight: 37.70 kg
Rated current: 8.20 A
LRA: 62.00 A
MCC: 16.00 A
Type of oil: 3GS Mineral Oil
Recharge oil: 1538 cc
Application: MHBP
Technology: Fixed speed
Previous version: H23A62QDBE
Resistance value between coils T1 - T2: 2.790 Ω
Resistance value between coils T1 - T3: 2.790 Ω
Resistance value between coils T2 - T3: 5.580 Ω
Speed: 2950 rpm
Advantages:
1) Environmentally friendly
2) Smaller piston bristol compressor dimensions or smaller displacements possible
3) Low noise level, innovative piston bristol compressor technology
4) Compact start equipment
5) Low energy consumption
6) High thermal working conditions
7) High product quality
8) Wide voltage range
| Product name | Refrigeration Compressor |
| Model | H23A623DBE |
| Application | Refrigeartion |
| MOQ | 1 SET |
| Refrigerant | R22 |
