| Model Number: | 6HE-28Y-40P |
| MOQ: | 1 piece |
| Price: | US$712-1000/PC |
| Delivery Time: | 5-7 Days |
| Payment Terms: | T/T,Western Union,MoneyGram |

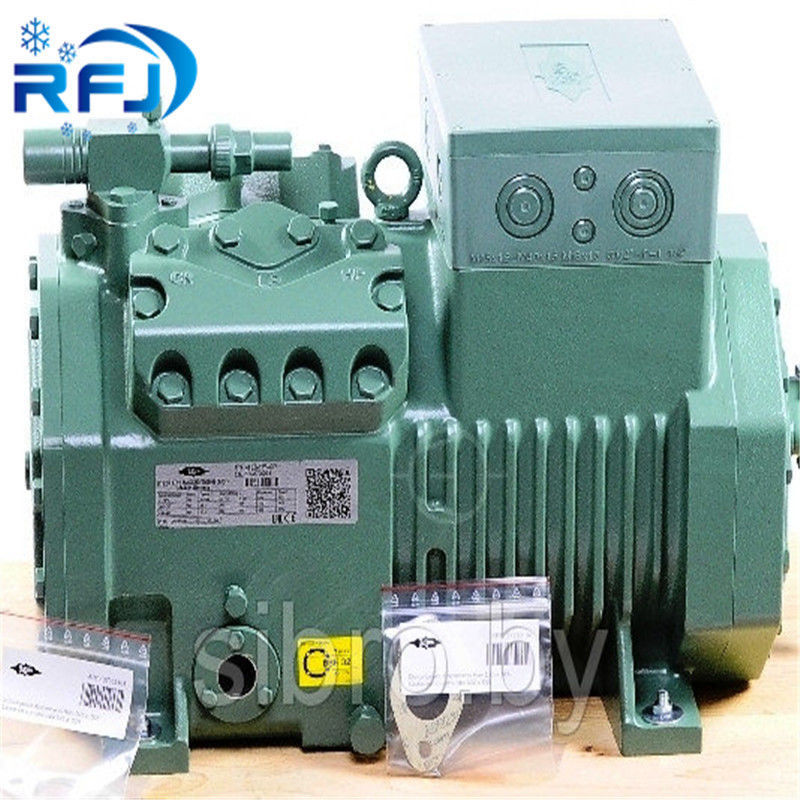

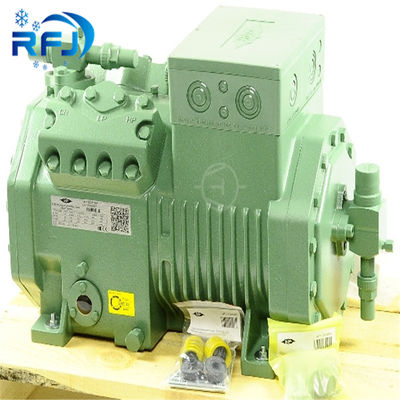

25HP 6HE-28Y-40P Semi hermetic Compressor for 380V
The ECOLINE 6HE-28Y is the creative advancement of the proven, robust and powerful semi-hermetic reciprocating compressor 6H-25.2Y.
It combines high efficiency, smooth running, a wide range of applications, flexibility in refrigerant selection, solid design and high reliability.
The ECOLINE 6HE-28Y replaces its predecessor 6H-25.2Y with the same connection sizes.
| Specification | SI Units | Imperial Units |
|---|---|---|
| Displacement (1450 RPM 50 HZ) | 110.5 m³/h | 3902.3 CFH |
| Displacement (1750 RPM 60 HZ) | 133.4 m³/h | 4711.0 CFH |
| No. of cylinder × bore × stroke | 6 × 70mm × 55mm | 6 × 2.76" × 2.17" |
| Weight | 224 kg | 494 lb |
| Max pressure (LP/HP) | 19/32 bar | 275/464 psi |
| Connection suction line | 54mm-2 1/8" | 54mm-2 1/8" |
| Connection discharge line | 35mm-1 3/8" | 35mm-1 3/8" |
| Motor version | 2 | 2 |
| Starting current (Rotor locked) | 141.0 A Y/233.0 A YY | 245.0 A |
| Motor voltage | 380-420V PW-3-50 HZ | 440-480V Y-3-60 HZ UL |
| Max operating current | 53.2 A | 53.2 A |
|
|
| Model Number: | 6HE-28Y-40P |
| MOQ: | 1 piece |
| Price: | US$712-1000/PC |
| Packaging Details: | Standard Wooden Package |
| Payment Terms: | T/T,Western Union,MoneyGram |
25HP 6HE-28Y-40P Semi hermetic Compressor for 380V
The ECOLINE 6HE-28Y is the creative advancement of the proven, robust and powerful semi-hermetic reciprocating compressor 6H-25.2Y.
It combines high efficiency, smooth running, a wide range of applications, flexibility in refrigerant selection, solid design and high reliability.
The ECOLINE 6HE-28Y replaces its predecessor 6H-25.2Y with the same connection sizes.
| Specification | SI Units | Imperial Units |
|---|---|---|
| Displacement (1450 RPM 50 HZ) | 110.5 m³/h | 3902.3 CFH |
| Displacement (1750 RPM 60 HZ) | 133.4 m³/h | 4711.0 CFH |
| No. of cylinder × bore × stroke | 6 × 70mm × 55mm | 6 × 2.76" × 2.17" |
| Weight | 224 kg | 494 lb |
| Max pressure (LP/HP) | 19/32 bar | 275/464 psi |
| Connection suction line | 54mm-2 1/8" | 54mm-2 1/8" |
| Connection discharge line | 35mm-1 3/8" | 35mm-1 3/8" |
| Motor version | 2 | 2 |
| Starting current (Rotor locked) | 141.0 A Y/233.0 A YY | 245.0 A |
| Motor voltage | 380-420V PW-3-50 HZ | 440-480V Y-3-60 HZ UL |
| Max operating current | 53.2 A | 53.2 A |
